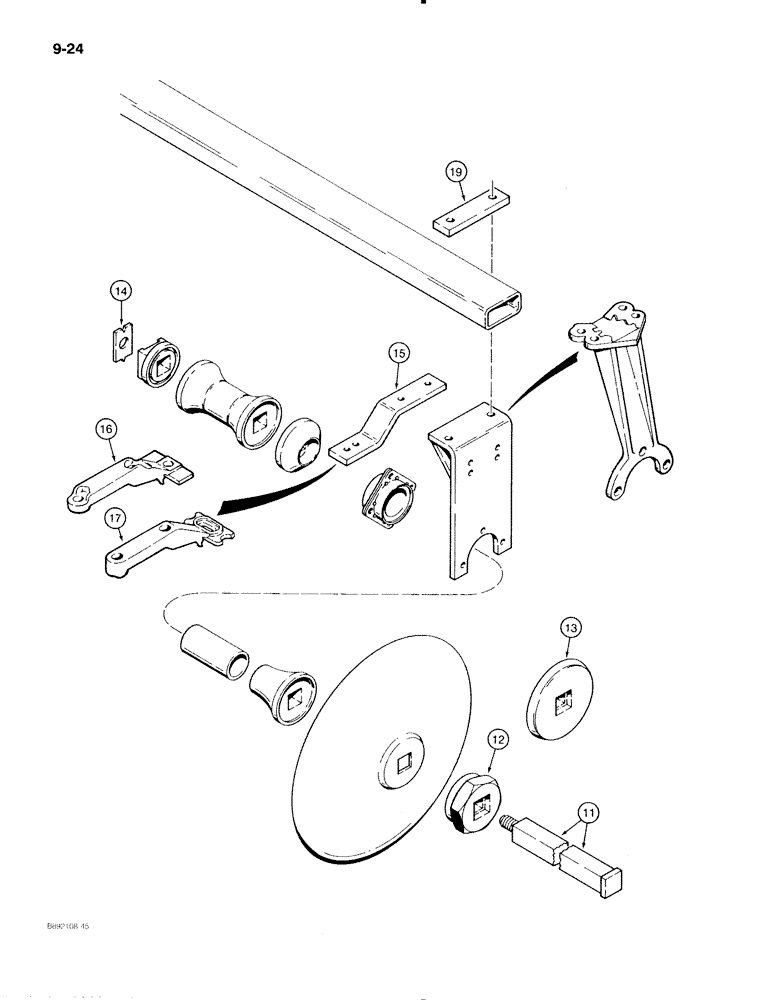

Запчасти Case IH 475 (9-24) - DISKS AND GANGS, USED WITH NON-FOLDING FRAME, 1-1/8 INCH DIAMETER SQUARE ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

11

REF

INSTRUCTION

BOLT - arbor, see Figure 9-40 for correct arbor bolt

4шт.

492-11112

LOCK WASHER,1 1/8"

- lock, 1-1/8 inch

4шт.

220094

NUT,1 1/8"-7, G5

- hex, 1-1/8 inch NC

4шт.

12

100696C1

WASHER

- special, arbor bolt, rear gang

2шт.

13

P4165A

WASHER

- bumper, front gangs

2шт.

14

489292R1

SUPPORT ASSY.

LOCK - arbor bolt

4шт.

15

121167C1

SUPPORT

PLATE - support attaching, 1 used per bearing support, if used

1шт.

16

129616C1

BRACKET

SUPPORT - scraper angle, 1 used per bearing support, if used

1шт.

17

139583C4

SUPPORT

- scraper angle, 1 used per bearing support, if used

1шт.

18

468584R2

SQ HOLE WASHER

- bumper, not shown

2шт.

19

112448C2

BAR

PLATE - adjusting

4шт.

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

4шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

4шт.
