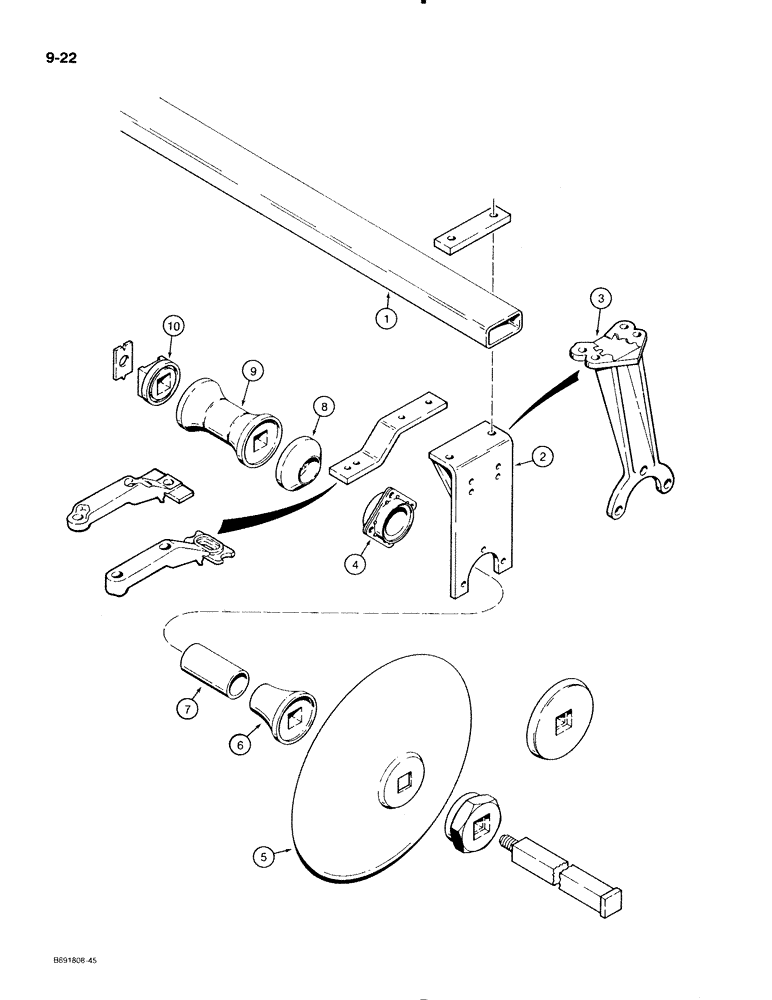

Запчасти Case IH 475 (9-22) - DISKS AND GANGS, USED WITH NON-FOLDING FRAME, 1-1/8 INCH DIAMETER SQUARE ARBOR BOLT (09) - CHASSIS/ATTACHMENTS

1

129936C2

TUBE,1626 mm Length

FRAME - gang, 64 inch long (Disk Harrow coded A and B)

1шт.

1

129937C1

TUBE

FRAME - gang, 68 inch long (Disk Harrow coded A and B)

1шт.

1

129938C2

TUBE,1965 mm Length

FRAME - gang, 77 inch long (Disk Harrow coded C and D)

1шт.

1

129939C1

TUBE,2075 mm Length

FRAME - gang, 82 inch long (Disk Harrow coded C and D)

1шт.

1

129940C1

TUBE,2480 mm Length

FRAME - gang, 95 inch long (Disk Harrow coded E and F)

1шт.

2

56995C1

SUPPORT

- bearing, stamped-type, no longer available, order 129532C2 cast-type support

8шт.

3

129532C2

HOLDER

SUPPORT - bearing, cast-type

1шт.

(Disk Harrow coded A and B) (Disk Harrow coded C through F)

12шт.

4

ST491A

BALL BEARING,45mm ID

BEARING - ball, 1 used per bearing support

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

- hex, 1/2 NC x 1-1/2 inch, 3 used per bearing

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 3 used per bearing 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 3 used per bearing 1/2"-13, G5

1шт.

5

472217R1

DISK HARROW

DISK - solid, 20 inch (510 mm) OD x 5/32 inch (4 mm) thick

1шт.

5

482986R2

DISK HARROW

DISK - solid, 18 inch (455 mm) OD x 5/32 inch (4 mm) thick

1шт.

5

482973R1

DISC

DISK - solid, 20 inch (510 mm) OD x 11/64 inch (4.5 mm) thick

1шт.

5

472218R1

DISC

DISK - solid, 22 inch (560 mm) OD x 11/64 inch (4.5 mm) thick

1шт.

5

482974R1

DISC

DISK - notched, 20 inch (510 mm) OD x 11/64 inch (4.5 mm) thick, not shown

1шт.

5

P24425

DISC

DISK - notched, 22 inch (560 mm) OD x 11/64 inch (4.5 mm) thick, not shown

1шт.

6

101191C1

SPOOL

- bearing, 4 inch long, 1 used per bearing support

1шт.

7

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch spacing, 1 used per bearing support (Disk Harrow coded A, D and E)

1шт.

7

112410C1

TUBE

BUSHING - support, 9 inch spacing, 1 used per bearing support (Disk Harrow coded B, C and F)

1шт.

8

101189C1

SPOOL

- bearing, 1-1/2 inch long, 1 used per bearing support (Disk Harrow coded A, D and E)

1шт.

8

101190C1

SPOOL

- bearing, 3 inch, 1 used per bearing support (Disk Harrow coded B, C and F)

1шт.

9

481416R1

SPOOL

- inner, 7-1/2 inch spacing (Disk Harrow coded A, D and E)

1шт.

9

481417R1

SPOOL

- inner, 9 inch spacing (Disk Harrow coded B, C and F)

1шт.

10

481611R1

WASHER

- arbor nut

4шт.
