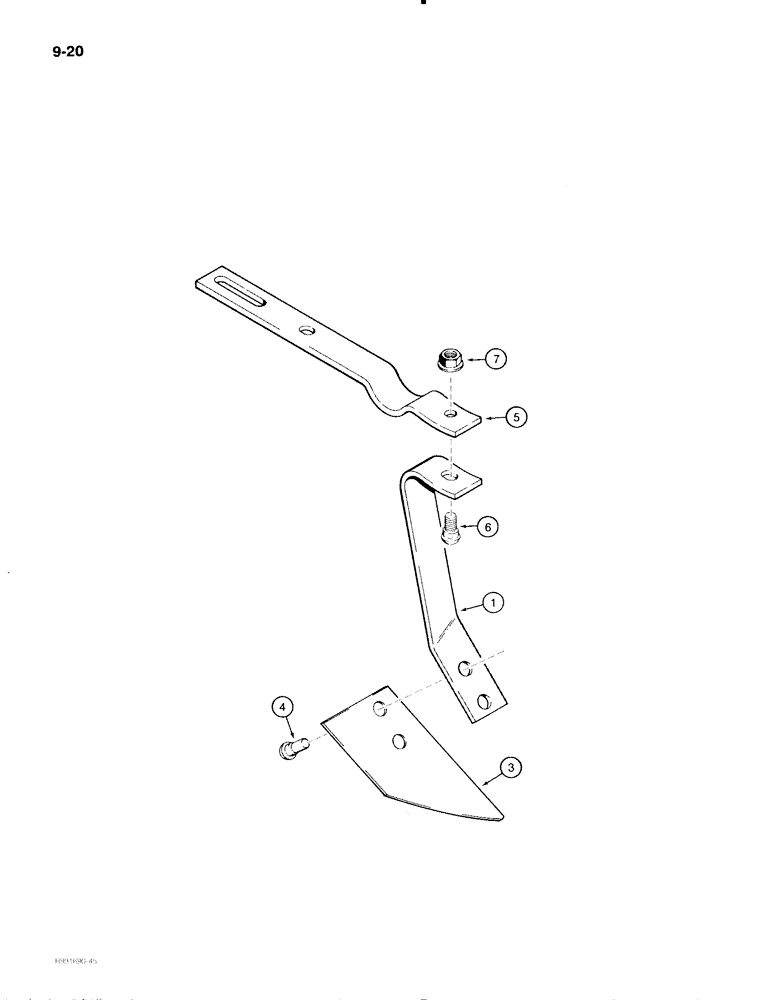

Запчасти Case IH 475 (9-20) - SCRAPERS USED WITH 2 X 2 INCH ANGLES (09) - CHASSIS/ATTACHMENTS

121120C92

SCRAPER

ASSEMBLY - disk, right-hand, 1 used per disk

1шт.

121119C92

SCRAPER

ASSEMBLY - disk, left-hand, 1 used per disk

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - mounting, scraper blade, right-hand, included with 121120C92 scraper assembly

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - mounting, scraper blade, left-hand, included with 121119C2 scraper assembly, not shown

1шт.

3

121118C1

BLADE

- scraper

1шт.

4

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

5

121224C1

SUPPORT

- furrow filler, used with furrow filler attachment, see Figure 9-42 for furrow filler

2шт.

6

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special, scraper retaining, 1 used per scraper

1шт.

7

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC, 1 used per bolt

1шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

121167C1

SUPPORT

- scraper angle

2шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT - carriage, 5/8 NC x 2-1/4 inch

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

2шт.
