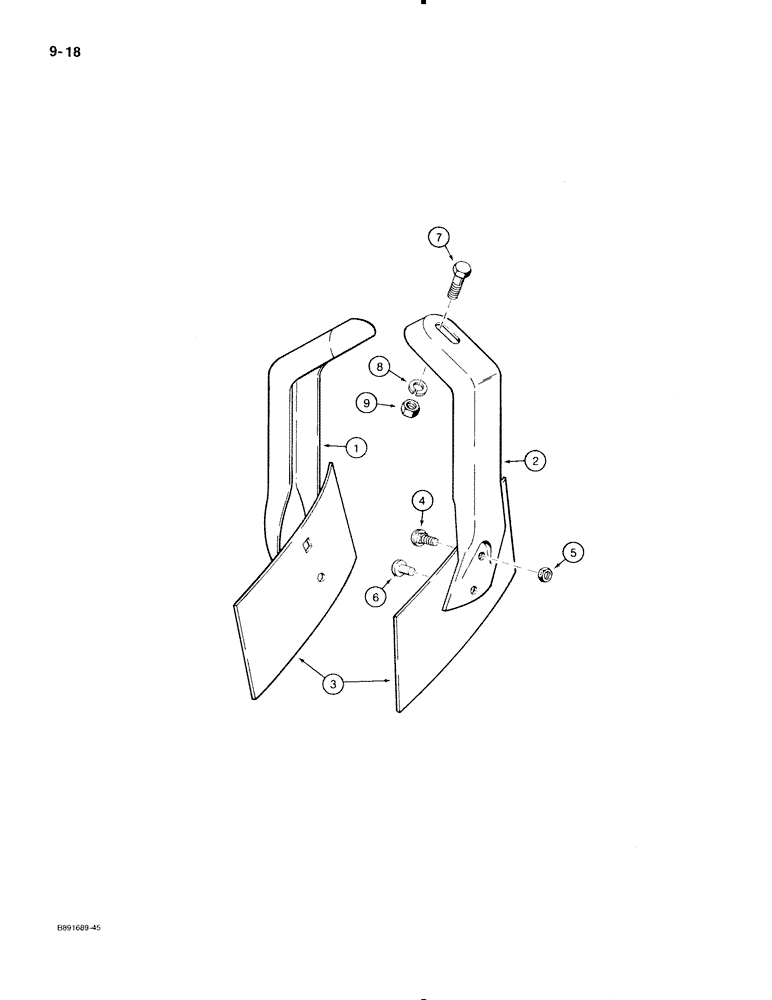

Запчасти Case IH 475 (9-18) - SCRAPERS USED WITH 2 X 1-1/2 INCH SCRAPER ANGLES (09) - CHASSIS/ATTACHMENTS

540458R92

HALF BLADE

SCRAPER ASSEMBLY - disk, left-hand, 1 used per disk

1шт.

540459R92

BLADE

SCRAPER ASSEMBLY - disk, right-hand, 1 used per disk

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - mounting, scraper blade, left-hand, included with 540458R92 scraper assembly

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - mounting, scraper blade, right-hand, included with 540459R92 scraper assembly

1шт.

3

483096R2

KNIFE ASSY

BLADE - scraper

1шт.

4

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - carriage, 3/8 NC x 1 inch

1шт.

5

9413979

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

1шт.

6

49-614

RIVET,Tr Hd, 3/8" x 7/8"

- truss head, 3/8 x 7/8 inch

1шт.

7

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

- special, disk scraper blade

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
