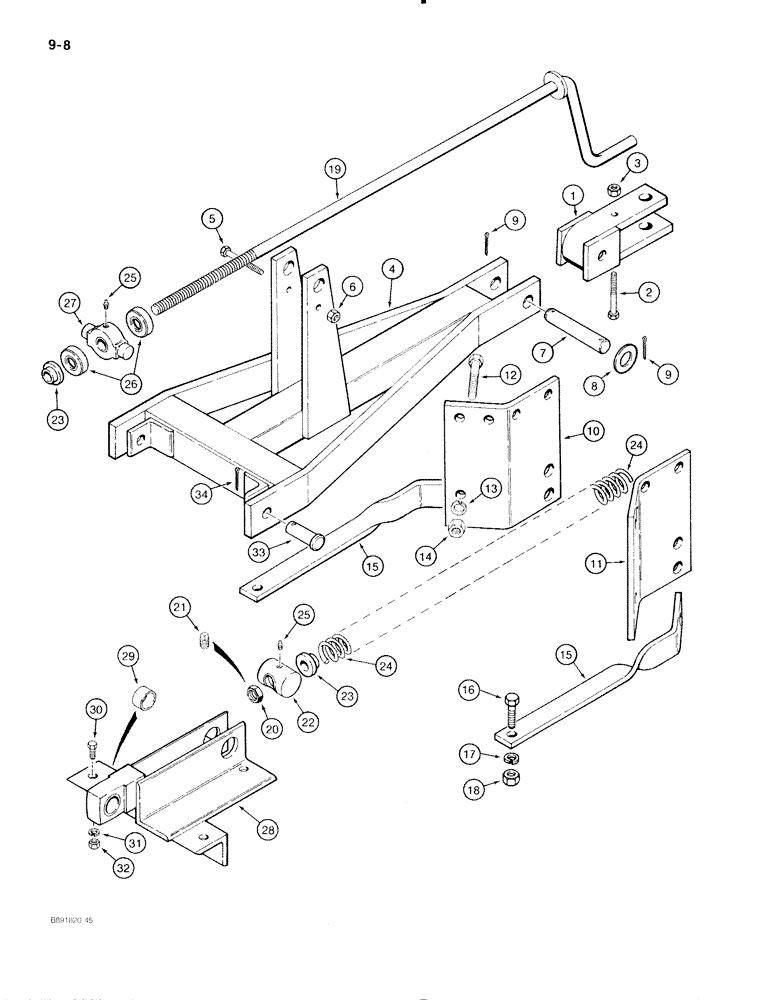

Запчасти Case IH 475 (9-08) - HITCH (09) - CHASSIS/ATTACHMENTS

1

1333760C1

CLEVIS

- hitch, replaces 468546R11

1шт.

2

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

3

608595R1

NUT

- hex lock, 5/8 inch NC

1шт.

4

61949C1

TOW BAR

FRAME - hitch, replaces 77890C91

1шт.

5

189314

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

- hex, 1/2 NC x 4-3/4 inch

1шт.

6

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

7

61958C1

AXLE PIN

PIN - clevis to hitch frame

1шт.

8

615274R1

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-9/32 x 2-1/2 x 3/32 inch

2шт.

9

22442R1

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

2шт.

10

61937C2

PLATE

- hitch, left-hand

1шт.

11

61938C2

PLATE

- hitch, right-hand

1шт.

12

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

8шт.

13

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

15

61939C1

BRACE

- hitch, diagonal

2шт.

16

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

2шт.

17

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

18

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

19

61955C1

CRANK

- hitch leveling

1шт.

20

56974C2

NUT

- hex jam, 1-1/8 inch, special

1шт.

21

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW - set, square head cup point, 5/16 NC x 1/2 inch

1шт.

22

468533R1

LINK

SWIVEL - adjusting, Serial Range: crank-bracket

1шт.

23

PO2932

RETAINER

- hitch spring

2шт.

24

112533C1

SPRING

- hitch

1шт.

25

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

26

80755R91

THRUST BEARING,30.32mm ID x 55.82mm OD x 16mm W

BEARING - trunnion

2шт.

27

56969C1

TRUNNION

- mounting, hitch crank

1шт.

28

61944C1

ANCHOR

BRACKET ASSEMBLY - mounting, hitch swivel and cylinder

1шт.

29

64601C1

BUSHING

- tension, 1 inch ID x 1-1/4 inch OD

1шт.

30

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

4шт.

31

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

32

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

33

129597C1

PIN,25.4mm OD x 82mm L

- hitch frame to plate, 1 inch OD x 3-1/4 inch long

1шт.

replaces 112573C1 pin

2шт.

34

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

4шт.
