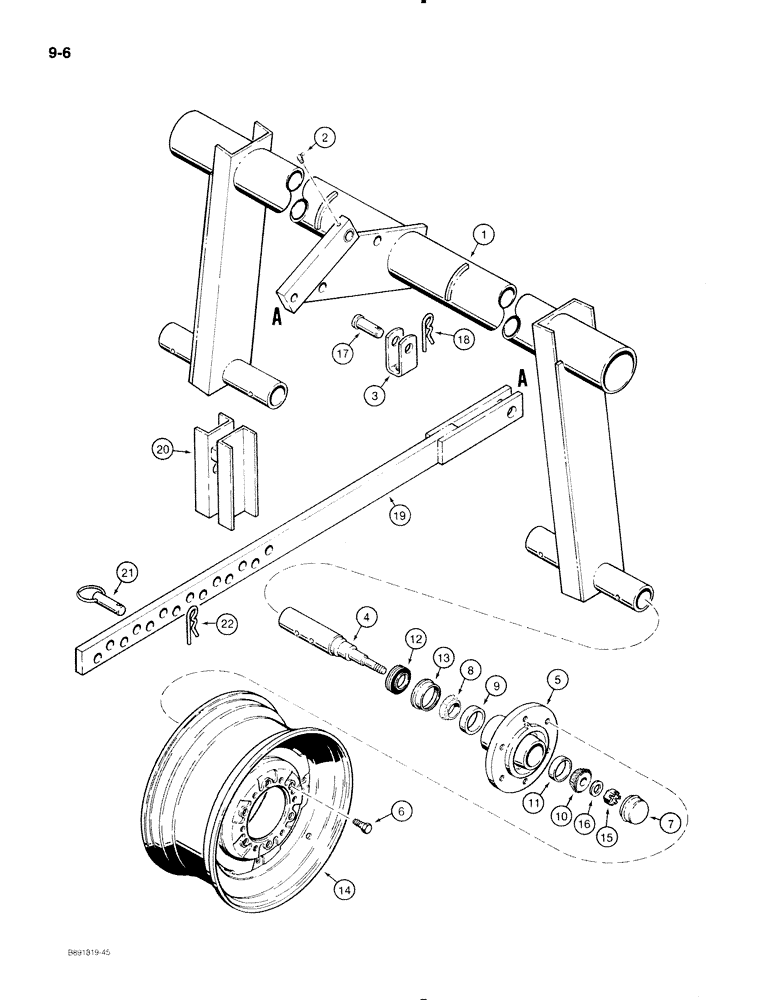

Запчасти Case IH 475 (9-06) - TRANSPORT LIFT AXLE (09) - CHASSIS/ATTACHMENTS

1

61948C1

AXLE

ASSEMBLY - wheel, 6 bolt hub

1шт.

64601C1

BUSHING

- tension, 1 inch ID x 1-1/4 inch OD

1шт.

2

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Used on axles without tension bushing 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

3

468580R1

CLEVIS

- transport, non-folding disk harrows

1шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

- hex, 3/4 NC x 4-1/2 inch

2шт.

129-148

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

2шт.

4

478375R1

SPINDLE

- wheel

2шт.

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.

5

465493R2

HUB

- wheel, 6 bolt

2шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

6

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

12шт.

63881C91

BEARING

KIT - repair, wheel bearing

2шт.

7

663908R1

CAP

- wheel hub

1шт.

8

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

- Tapered roller, Inner

1шт.

9

371883R1

BEARING CUP

Inner

1шт.

10

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING - tapered roller, outer

1шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Outer

1шт.

12

667599R91

OIL SEAL

- oil, hub

1шт.

13

667564R2

SLEEVE

- oil seal

1шт.

14

481344R91

WHEEL

- 14 x 8 inch

2шт.

810768C1

VALVE

- tubeless tire, steel

2шт.

15

69442D

NUT

- slotted hex, 3/4 inch NF

2шт.

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

2шт.

16

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened

2шт.

17

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN - clevis, 3/4 x 2-1/4 inch, non-folding disk harrows

1шт.

18

1978738C1

HAIR PIN COTTER

quick attach, non-folding disk harrows

1шт.

19

61981C1

BAR

- transport, folding disk harrows

1шт.

20

112560C1

CHANNEL

- stop, folding disk harrows

1шт.

21

520113R1

HEADED PIN,7/8" x 2 7/16"

PIN - special, hardened, folding disk harrows

2шт.

22

591107R1

COTTER PIN

- hair, quick attach, folding disk harrows

2шт.
