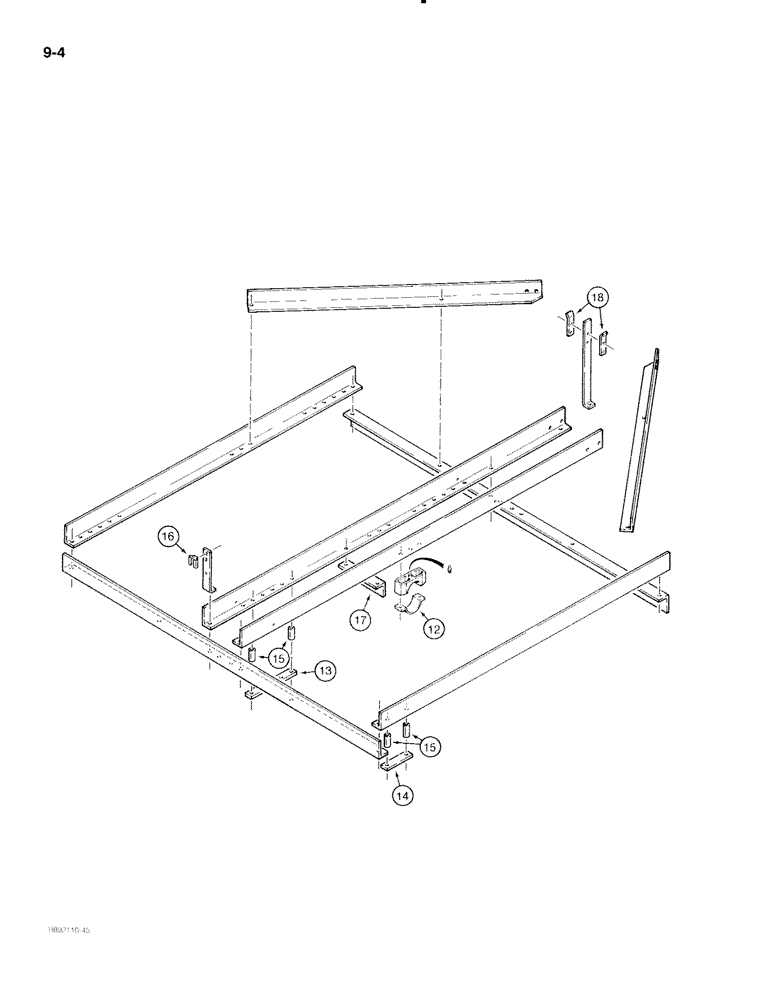

Запчасти Case IH 475 (9-04) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

12

540979R1

BEARING CAP,3"

CLAMP - bearing, axle, lower, replaces 468518R1

4шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

- hex, 3/4 NC x 4-1/2 inch

6шт.

21074R1

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 2

- hex, 3/4 NC x 4-3/4 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

13

61946C1

BAR

STRAP - gang bar, inner

4шт.

14

129944C1

BAR

STRAP - gang bar, outer, replaces 112572C1

4шт.

17816R1

BOLT,Hex, 3/4" - 10 x 5", Gr 2

- hex, 3/4 NC x 5 inch

24шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

24шт.

15

61945C1

SPACER

- gang bar strap

16шт.

16

398976R1

BRACKET

SOCKET - SMV emblem, see Figure 9-56 for slow moving vehicle emblem and mounting parts

1шт.

17

61936C1

ANGLE

- mounting, center shank, see page 9-45 for center shank attachment

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

18

58644C1

HOLDER

CLAMP - hydraulic hose

2шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

- hex, 1/2 NC x 2-1/2 inch

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

2шт.
