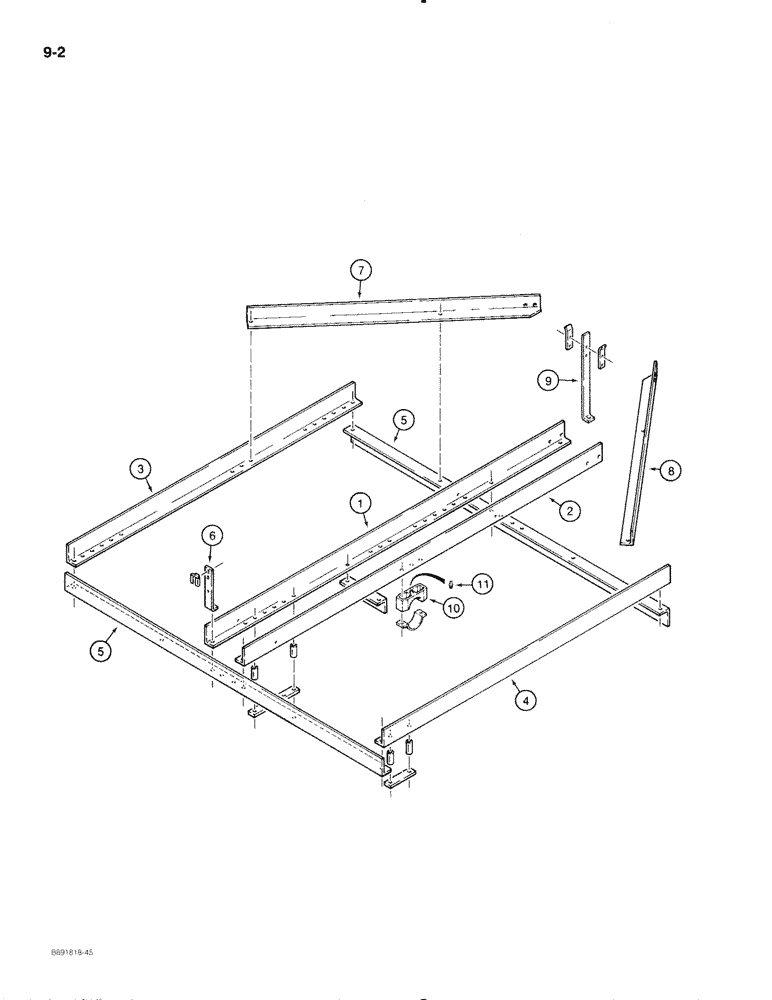

Запчасти Case IH 475 (9-02) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

61929C1

ANGLE

- inner frame, left-hand

1шт.

2

61930C1

ANGLE

- inner frame, right-hand

1шт.

3

61931C1

ANGLE

- outer frame, left-hand

1шт.

4

61932C1

ANGLE

- outer frame, right-hand

1шт.

5

96162C91

ANGLE

ASSEMBLY - frame, front and rear, includes decals

2шт.

59051C2

PRODUCT GRAPHIC

DECAL - warning, keep clear

2шт.

1254170C1

DECAL

- caution, no riders

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

7шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

7шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

7шт.

6

131946C1

SUPPORT

BRACKET - mounting, SMV socket, see Figure 9-56 for slow moving vehicle emblem and mounting parts

1шт.

7

61934C1

ANGLE

- frame, diagonal, left-hand

1шт.

8

61935C1

ANGLE

- frame, diagonal, right-hand

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

9

58643C1

SUPPORT

- hydraulic hose

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

10

491921R1

CYLINDER END CAP

BEARING - axle, upper

4шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.
