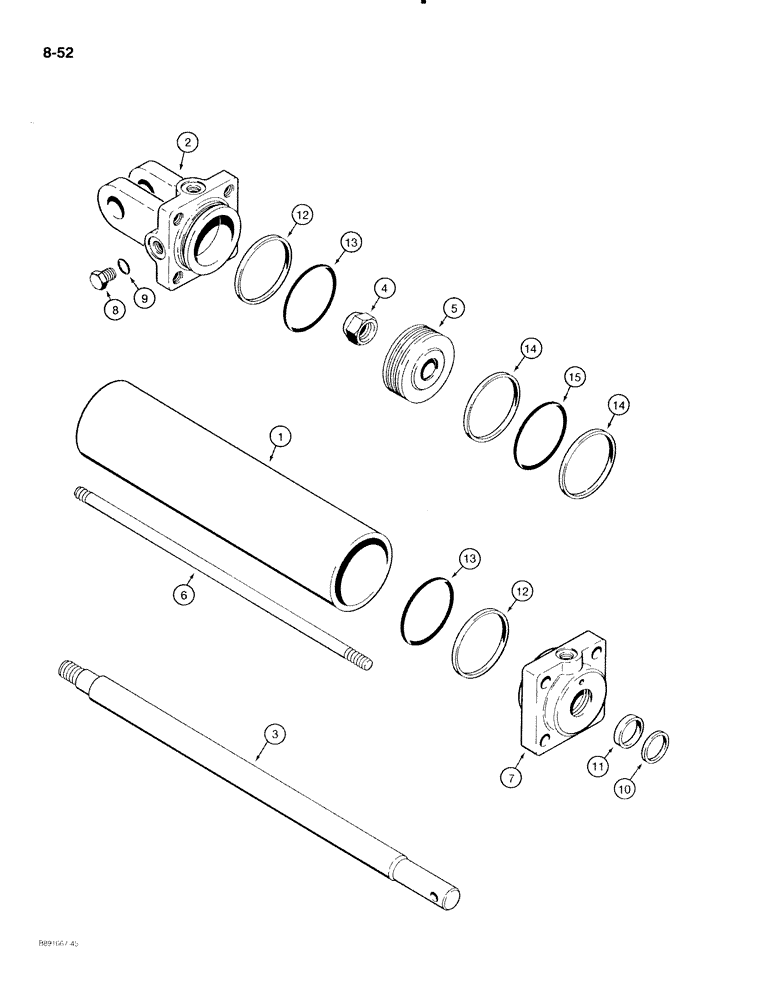

Запчасти Case IH 475 (8-52) - WING LIFT CYLINDER- 1282321C91 (08) - HYDRAULICS

1282321C91

CYLINDER

ASSEMBLY - 3 inch ID x 12 inch stroke, wing lift

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272761C1

HEAD

CAP - end, cylinder

1шт.

3

1255249C1

ROD

- piston

1шт.

4

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

5

145225C1

PISTON

- cylinder

1шт.

6

1255272C1

TIE-ROD,7/16" - 14 x 425mm

BOLT - tie, cylinder

4шт.

NLS

NO LONGER SERVICED

- hex, 7/16 inch NC

4шт.

7

1272762C1

HEAD

GLAND - cylinder

1шт.

8

9410359

PLUG

- hex, 1/2-20 inch O-ring boss

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Cylinder Repair Kit P/N 79976C1

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Cylinder Repair Kit P/N 79976C1

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Cylinder Repair Kit P/N 79976C1

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, gland and end cap O-ring

2шт.

Part of Cylinder Repair Kit P/N 79976C1

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland and end cap

2шт.

Part of Cylinder Repair Kit P/N 79976C1

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of Cylinder Repair Kit P/N 79976C1

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Cylinder Repair Kit P/N 79976C1

1шт.

79976C1

KIT

KIT - cylinder repair, Includes: Ref. 9-15

1шт.
