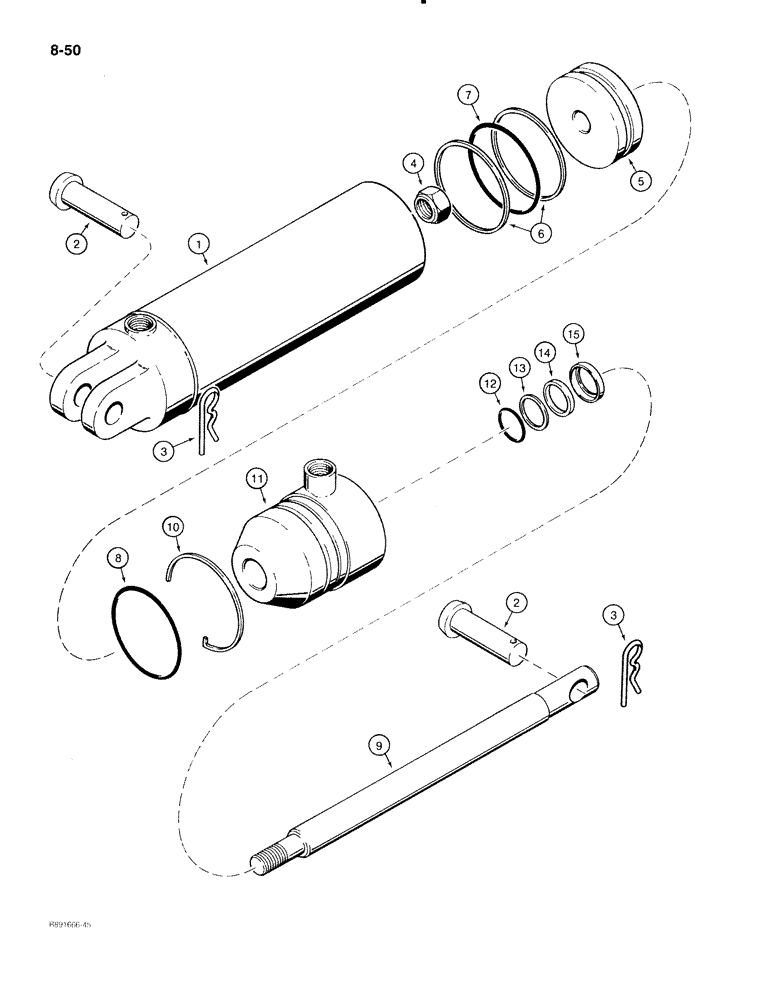

Запчасти Case IH 475 (8-50) - WING LIFT CYLINDER- 62125C91 (08) - HYDRAULICS

62125C91

CYLINDER

ASSEMBLY - 3 inch ID x 12 inch stroke

1шт.

wing lift, no longer available, for service order 1282321C91 cylinder assembly, see Figure 8-52, also order (2) 28543R1 pins, (2) 103398 hair pins, (1) 1252130C1 adapter and (1) 237-6008 O-ring

1шт.

1

62182C1

TUBE,18.63" Length

- cylinder

1шт.

2

580714R1

HEADED PIN,1" x 2 3/4"

PIN - cylinder pivot

2шт.

3

520175R1

CLIP

PIN - hair, cylinder pin retaining

2шт.

4

9412368

NUT

- hex, self-locking, 3/4 inch NC, grade 8

1шт.

5

381870R1

PISTON

- cylinder

1шт.

6

381872R1

WASHER

RING - backup, piston O-ring

2шт.

Part of Cylinder Repair Kit P/N 386687R93

1шт.

7

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

- 2-5/8 x 3 x 3/16 inch, piston

1шт.

Part of Cylinder Repair Kit P/N 386687R93

1шт.

8

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

- 2-3/4 x 3 x 1/8 inch, gland

1шт.

Part of Cylinder Repair Kit P/N 386687R93

1шт.

9

62185C1

ROD

- piston

1шт.

10

381873R1

RETAINER

RING - locking, gland

1шт.

Part of Cylinder Repair Kit P/N 386687R93

1шт.

11

62186C91

GLAND - cylinder

1шт.

12

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING - piston rod

1шт.

Part of Cylinder Repair Kit P/N 386687R93

1шт.

13

383669R1

BACK-UP RING

RING - backup, piston rod O-ring

1шт.

Part of Cylinder Repair Kit P/N 386687R93

1шт.

14

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

WIPER - piston rod

1шт.

Part of Cylinder Repair Kit P/N 386687R93

1шт.

15

354049R1

RETAINER

- wiper

1шт.

Part of Cylinder Repair Kit P/N 386687R93

1шт.

386687R93

SEAL KIT

- cylinder repair, Includes: Ref. 6-8, 10 and 12-15

1шт.
