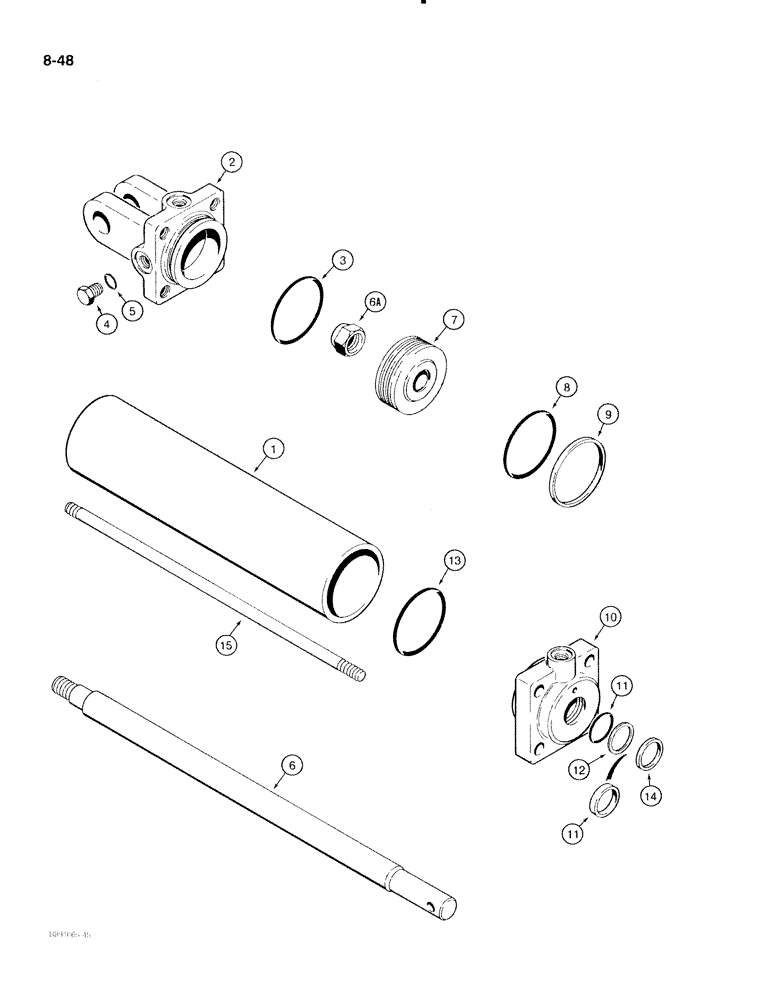

Запчасти Case IH 475 (8-48) - WING LIFT CYLINDER- 1255248C92 (08) - HYDRAULICS

1255248C92

CYLINDER

ASSEMBLY - 3 inch ID x 12 inch stroke

1шт.

wing lift, no longer available, for service order 1282321C91 cylinder assembly, parts list Figure 8-52

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272761C1

HEAD

CAP - end, cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - end cap

1шт.

4

9410359

PLUG

- hex, 1/2-20 inch, O-ring boss

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

6

1255249C1

ROD

- piston

1шт.

6a

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

7

145225C1

PISTON

- cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

1шт.

10

145224C1

HEAD

GLAND - cylinder, uses item 11 O-ring and item 12 backup ring, no longer available, order 1260877C1 gland

1шт.

10

1260877C1

HEAD

GLAND - cylinder, uses item 11 seal, replaces 1452224C1 gland

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - piston rod, used with 145224C1 gland

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston rod, used with 1260877C1 gland

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring, used with 145224C1 gland

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

15

1255272C1

TIE-ROD,7/16" - 14 x 425mm

BOLT - tie, cylinder

4шт.

16

NLS

NO LONGER SERVICED

- hex, 7/16 inch NC, not shown

4шт.

145573C1

KIT

- cylinder repair, used with 145224C1 gland, includes items 3, 5, 8, 9, 11, (O-ring), 12, 13 and 14

1шт.

79976C1

KIT

KIT - cylinder repair, used with 1260877C1 gland, includes items 3, 5, 8, 9, 11, (seal), 13 and 14. Kit also includes 2 backup washers not used in this application

1шт.
