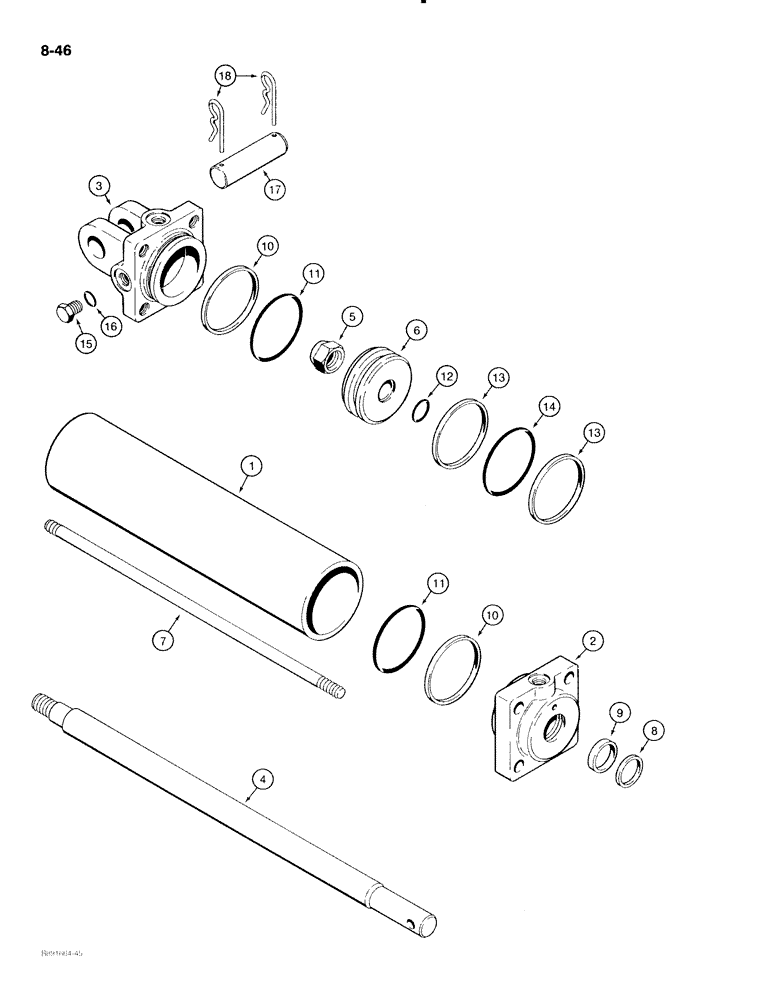

Запчасти Case IH 475 (8-46) - WING LIFT CYLINDER- 84996C91 (08) - HYDRAULICS

84996C91

CYLINDER

ASSEMBLY - 3 inch ID x 12 inch stroke

1шт.

wing lift, no longer available, for service order 1282321C91 cylinder assembly, parts list Figure 8-52

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

92483C1

END

GLAND - cylinder

1шт.

3

92484C1

END

CAP - end, cylinder

1шт.

4

92486C1

ROD

- piston

1шт.

5

385054R1

NUT

- hex, self-locking, 3/4 inch NF

1шт.

6

1255478C1

PISTON

- cylinder

1шт.

7

92487C1

TIE-ROD

BOLT - tie, cylinder

4шт.

102637

NUT,1/2"-13, G5

4шт.

8

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Cylinder Repair Kit P/N 92485C1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

Part of Cylinder Repair Kit P/N 92485C1

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, gland and end cap O-ring

2шт.

Part of Cylinder Repair Kit P/N 92485C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - gland and end cap

2шт.

Part of Cylinder Repair Kit P/N 92485C1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Cylinder Repair Kit P/N 92485C1

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of Cylinder Repair Kit P/N 92485C1

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Cylinder Repair Kit P/N 92485C1

1шт.

15

9410359

PLUG

- hex, 1/2-20 inch O-ring boss

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Cylinder Repair Kit P/N 92485C1

1шт.

17

1266753C1

PIN,25.4mm OD x 96.83mm L

- cylinder pivot

1шт.

18

520175R1

CLIP

PIN - hair, cylinder pin retaining

2шт.

92485C1

SEAL KIT

- cylinder repair, Includes: Ref. 8-14 and 16

1шт.

The cylinder assembly part number is stamped on the cylinder tube.

1шт.
