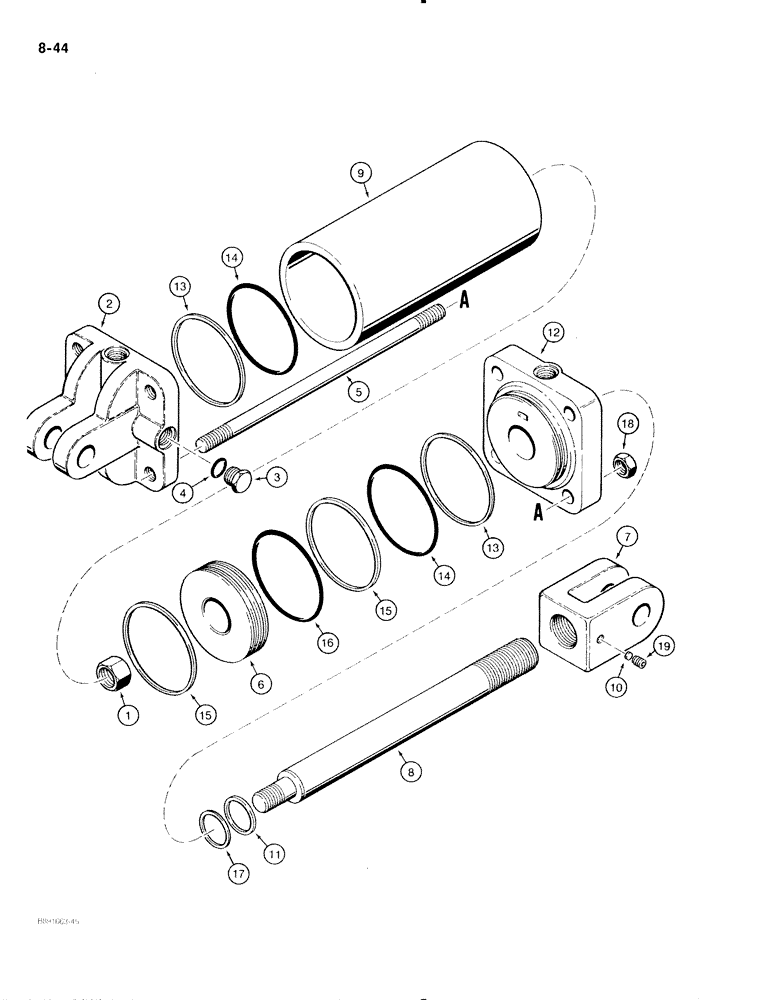

Запчасти Case IH 475 (8-44) - TRANSPORT LIFT CYLINDER-1272148C91 (08) - HYDRAULICS

1272148C91

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift

1шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF

1шт.

2

1272919C1

CYLINDER HEAD

CAP - end, cylinder

1шт.

3

9410359

PLUG

- hex, 1/2-20 inch, O-ring boss

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of Cylinder Repair Kit P/N 80117C2

1шт.

5

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

6

149930C1

PISTON

- cylinder

1шт.

7

1267057C1

CLEVIS,3/8" - 16

- rod end

1шт.

8

1267056C1

ROD

- piston

1шт.

9

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

- nylon, clevis

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Cylinder Repair Kit P/N 80117C2

1шт.

12

1272920C1

HEAD

GLAND - cylinder

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, gland and end cap O-rings

2шт.

Part of Cylinder Repair Kit P/N 80117C2

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - gland and end cap

2шт.

Part of Cylinder Repair Kit P/N 80117C2

1шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of Cylinder Repair Kit P/N 80117C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Cylinder Repair Kit P/N 80117C2

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Cylinder Repair Kit P/N 80117C2

1шт.

18

102639

NUT,5/8"-11, G5

4шт.

19

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cone point

1шт.

80117C2

SEAL KIT

- cylinder repair, Includes: Ref. 4, 11 and 13-17 and also includes 2 wear rings not used in this application

1шт.
