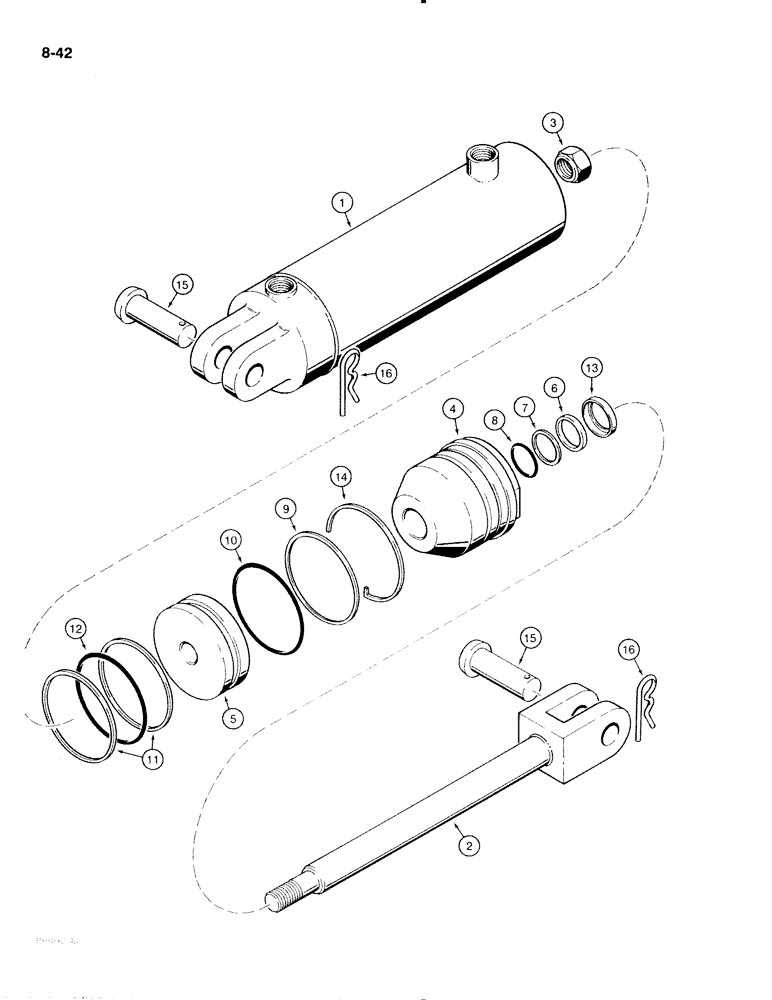

Запчасти Case IH 475 (8-42) - TRANSPORT LIFT CYLINDER- 64412C91 (08) - HYDRAULICS

64412C91

CYLINDER BLOCK

CYLINDER ASSEMBLY - 4 inch ID x 8 inch stroke

1шт.

transport lift

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

548010R1

ROD

- piston

1шт.

3

9413974

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NC

1шт.

4

548012R1

HEAD (CYLINDER)

GLAND - cylinder

1шт.

5

548013R1

PISTON

- cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, rod O-ring

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - wiper

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

14

NSS

NOT SOLD SEPARAT

RING - locking, gland

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

15

64560C1

HEADED PIN

PIN - cylinder pivot

2шт.

16

520175R1

CLIP

PIN - hair, cylinder pin retaining

2шт.

548023R92

SEAL KIT

KIT - cylinder repair, Includes: Ref. 6-14

1шт.
