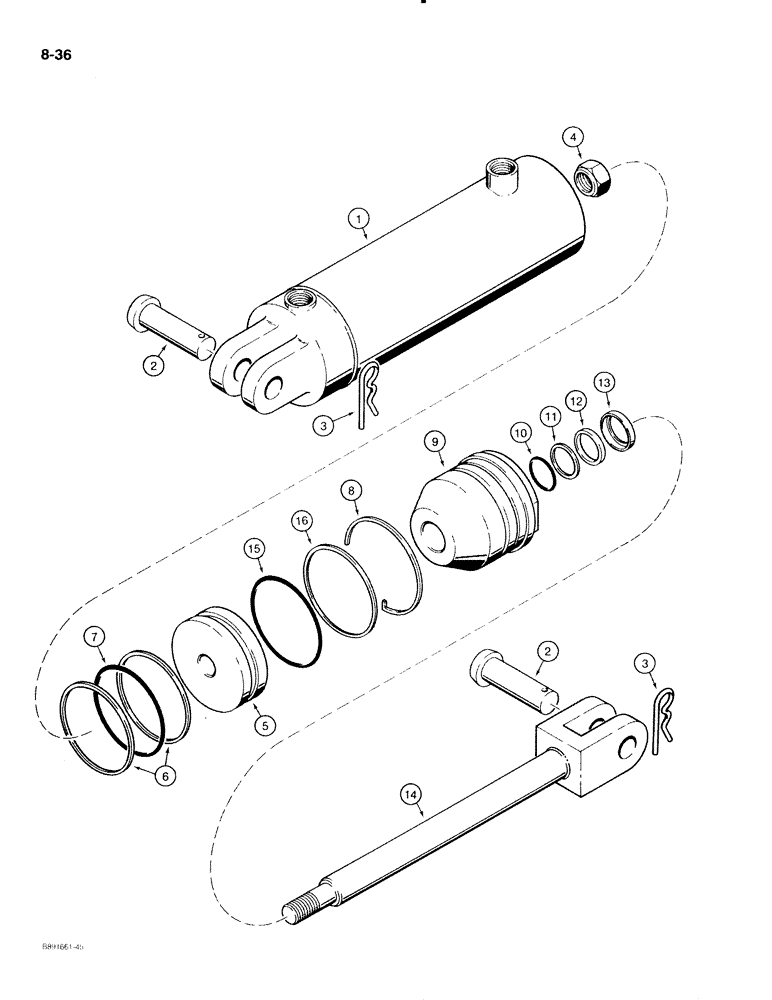

Запчасти Case IH 475 (8-36) - TRANSPORT LIFT CYLINDER -548003R92 (08) - HYDRAULICS

548003R92

CYLINDER BLOCK

CYLINDER ASSEMBLY - 4 inch ID x 8 inch stroke

1шт.

transport lift, no longer available, for service order 1272148C91 cylinder assembly, parts list Figure 8-44, also order (2) 61571C2 pins, (2) 132-349 cotter pins, (1) 1252129C1 adapter and (1) 237-6008 O-ring

1шт.

1

548006R1

HYD TUBE

TUBE - cylinder

1шт.

2

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - cylinder pivot

2шт.

3

520175R1

CLIP

PIN - hair, cylinder pin retaining

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT - hex, self-locking, 7/8 inch NC

1шт.

5

548013R1

PISTON

- cylinder

1шт.

6

381107R1

BACK-UP RING

- backup, piston O-ring

2шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

7

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

- 3-1/8 x 3-1/2 x 3/16 inch, piston

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

8

548025R1

RETAINER

RING - locking, gland

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

9

548012R1

HEAD (CYLINDER)

GLAND - cylinder

1шт.

10

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

- 1-1/4 x 1-1/2 x 1/8 inch, piston rod

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

11

546279R1

WASHER

RING - backup, piston rod O-ring

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

12

386421R1

WASHER

WIPER - piston rod

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

13

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

RETAINER - wiper

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

14

548010R1

ROD

- piston

1шт.

15

347801R1

O-RING,0.21" Thk x 3.6" ID, -342, Cl 6, 90 Duro

- 3-1/4 x 3-1/2 x 1/8 inch, gland

1шт.

Part of Cylinder Repair Kit P/N 548023R92

1шт.

16

381107R1

BACK-UP RING

- backup, gland O-ring

1шт.

548023R92

SEAL KIT

KIT - cylinder repair, Includes: Ref. 6-8, 10-13 and 15

1шт.
