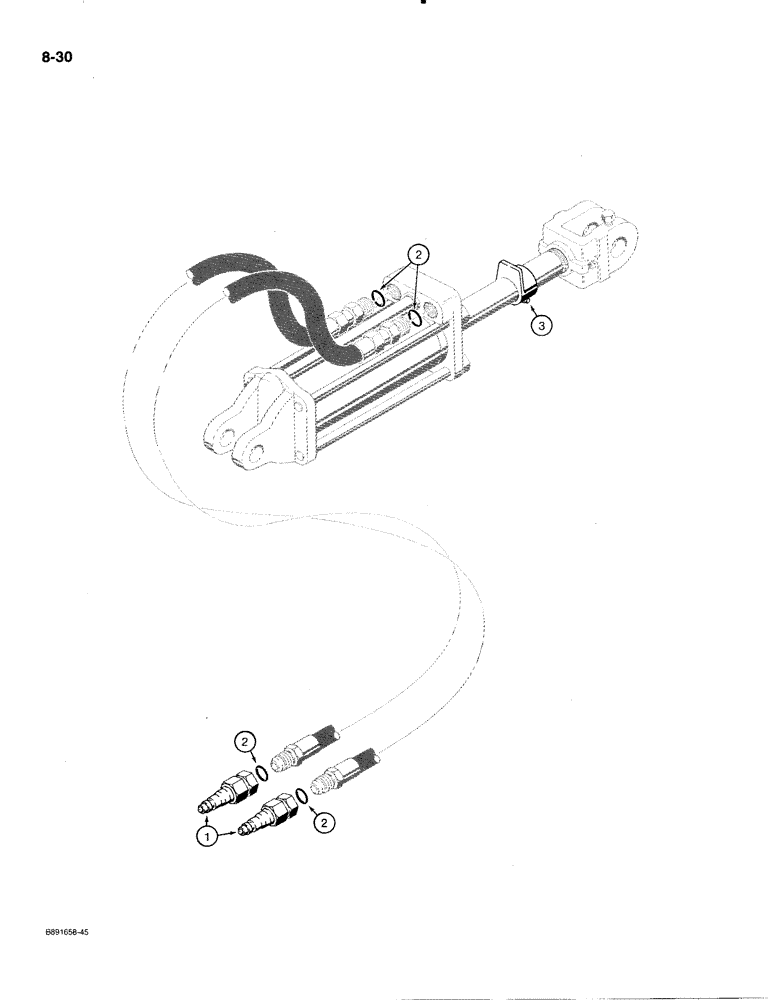

Запчасти Case IH 475 (8-30) - HYDRAULIC COUPLERS AND CYLINDER STOPS (08) - HYDRAULICS

1

395149R1

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread, poppet type

1шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER - male, 7/8-14 inch thread, self-sealing type

1шт.

1

1272399C2

QUICK MALE COUPLING

COUPLER - male, 7/8-14 inch thread, self-sealing (ISO Standard)

1шт.

1

1285718C2

QUICK MALE COUPLING

COUPLER - male, 3/4-16 inch thread, self-sealing (ISO Standard)

1шт.

1

407045R1

FITTING

REDUCER - 3/4-16 x 7/8-14 inch thread

1шт.

1

407545R1

FITTING

REDUCER - 7/8-14 x 3/4-16 inch thread

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

479849R91

PACKAGE

STOP - cylinder, 1/2 inch thick

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, 1/4 NC x 1/2 inch

2шт.

3

643259R91

STOP

- cylinder, 3/4 inch thick

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, 1/4 NC x 1/2 inch

2шт.

3

479850R91

PACKAGE

STOP - cylinder, 1 inch thick

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, 1/4 NC x 1/2 inch

2шт.

3

643260R91

PACKAGE

STOP - cylinder, 1-1/2 inch thick

1шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head, 1/4 NC x 1/2 inch

2шт.
