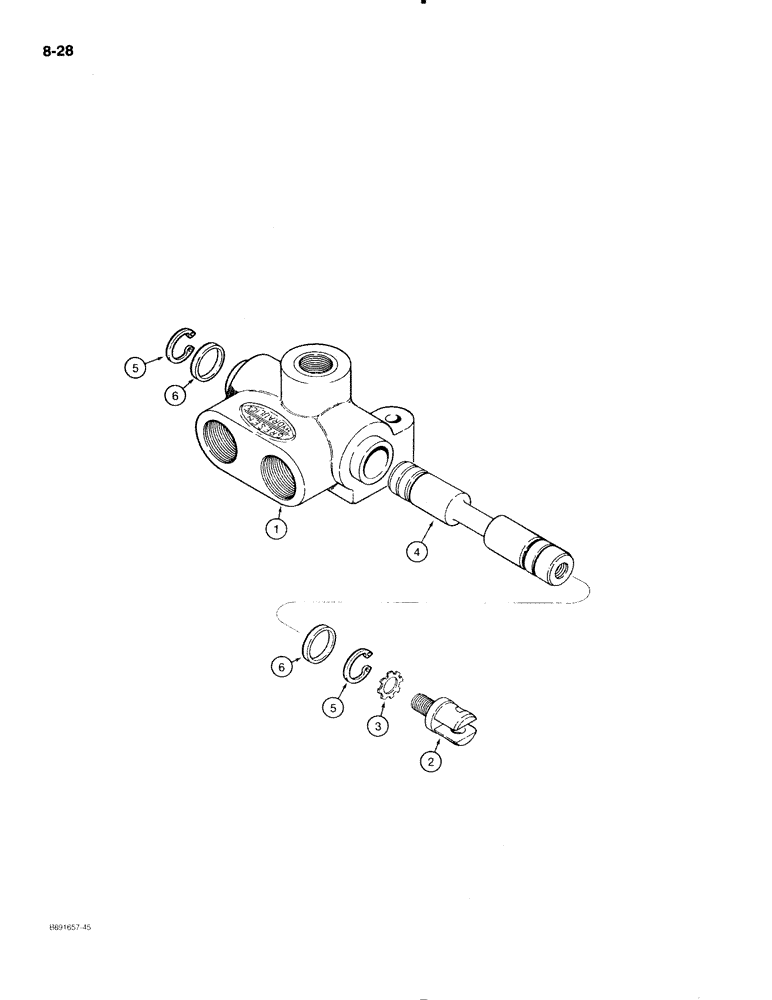

Запчасти Case IH 475 (8-28) - DIVERTER VALVE (08) - HYDRAULICS

478887R91

VALVE

ASSEMBLY - diverter

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - diverter valve

1шт.

2

669547R1

ADAPTER

EYE - spool

1шт.

3

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

5

661652R1

SNAP RING,#75, Ext

Valve spool #75, Ext

2шт.

6

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

SEAL - square section, valve spool

2шт.
