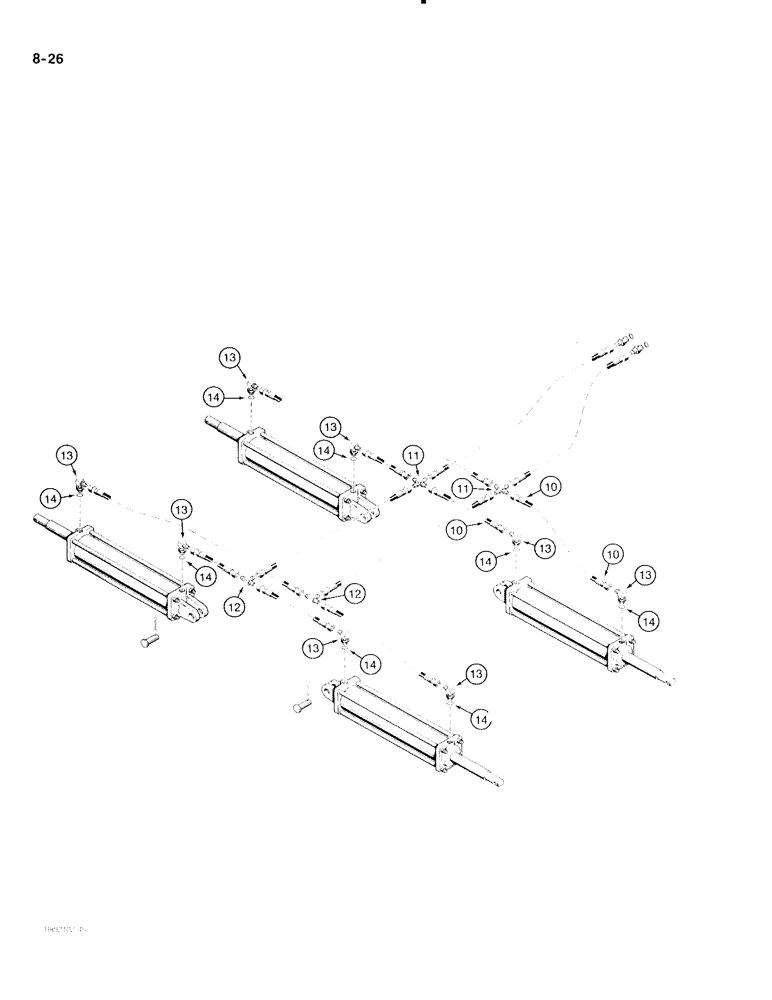

Запчасти Case IH 475 (8-26) - WING LIFT HYDRAULIC CIRCUIT, 3/8" ID SUPPLY & RETURN HOSES, W/O DIVERTER VALVE (08) - HYDRAULICS

10

147876C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 45 inch long, cross to right-hand front wing lift cylinder (Disk Harrow coded G, H, J and K)

2шт.

10

147878C1

HOSE

- 1/4 inch ID x 65 inch long, cross to right-hand front wing lift cylinder (Disk Harrow coded L, M and N)

2шт.

11

9403176

4 WAY CONNECTION,9/16"-18, 37 Degree

CROSS - special

2шт.

12

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

13

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch O-ring boss

8шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
