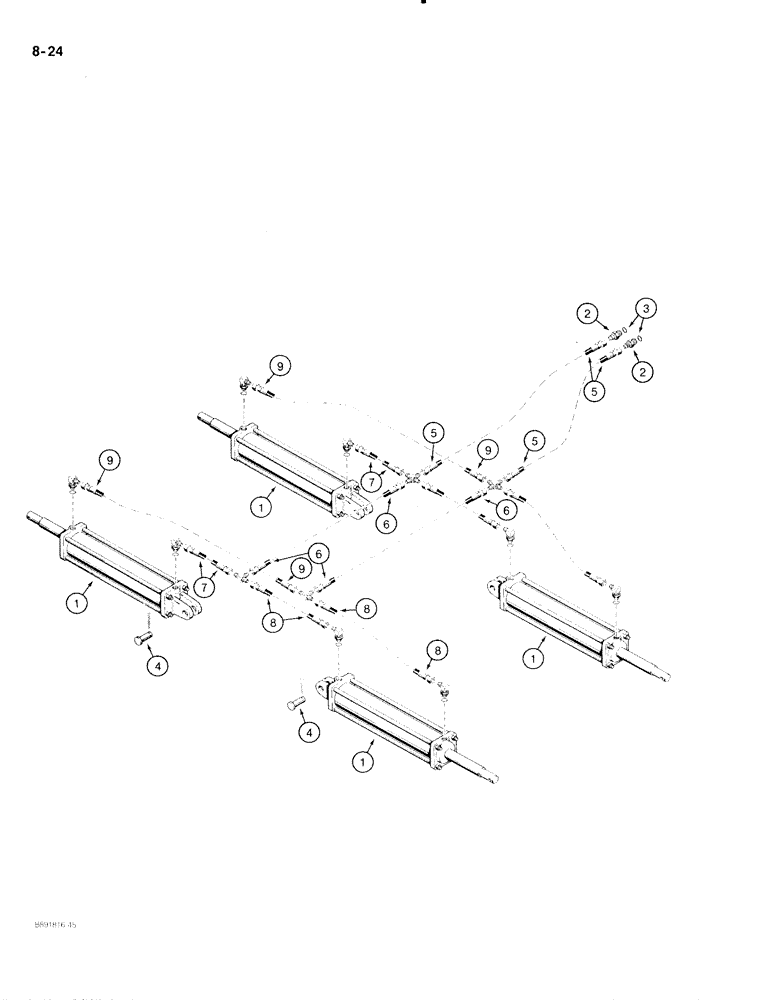

Запчасти Case IH 475 (8-24) - WING LIFT HYDRAULIC CIRCUIT, 3/8" ID SUPPLY & RETURN HOSES, W/O DIVERTER VALVE (08) - HYDRAULICS

1

84996C91

CYLINDER

ASSEMBLY - 3 inch ID x 12 inch stroke, wing lift

1шт.

parts list Figure 8-46, no longer available, for service order 1282321C91 cylinder assembly, see Figure 8-52

4шт.

1

1255248C92

CYLINDER

ASSEMBLY - 3 inch ID x 12 inch stroke, wing lift

1шт.

parts list Figure 8-48, no longer available, for service order 1282321C91 cylinder assembly, see Figure 8-52

4шт.

1

1282321C91

CYLINDER

ASSEMBLY - 3 inch ID x 12 inch stroke, wing lift

1шт.

parts list Figure 8-52

4шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch, cylinder mounting

4шт.

132-341

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

4шт.

5

139654C2

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 125 inch long, supply and return

2шт.

6

1284291C1

HYDRAULIC HOSE

- 1/4 inch ID x 93 inch long, Serial Range: cross-tee

2шт.

7

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

- to LH cylinder, closed end (Disk Harrow coded G, H, J and K) 6.40 mm ID x 890.00 mm, SAE 100R1

2шт.

7

147876C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 45 inch long, to left-hand cylinders, closed end (Disk Harrow coded L, M and N)

2шт.

8

129908C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 55 inch long, tee to right-hand rear wing lift cylinder (Disk Harrow coded G, H, J and K)

2шт.

8

147878C1

HOSE

- 1/4 inch ID x 65 inch long, tee to right-hand rear wing lift cylinder (Disk Harrow coded L, M and N)

2шт.

9

147878C1

HOSE

- 1/4 inch ID x 65 inch long, cross or tee to left-hand wing lift cylinders, rod end (Disk Harrow coded G, H, J and K)

2шт.

9

139517C1

HYDRAULIC HOSE

HOSE - 1/4 inch ID x 65 inch long, cross or tee to left-hand wing lift cylinders, rod end (Disk Harrow coded L, M and N)

2шт.
