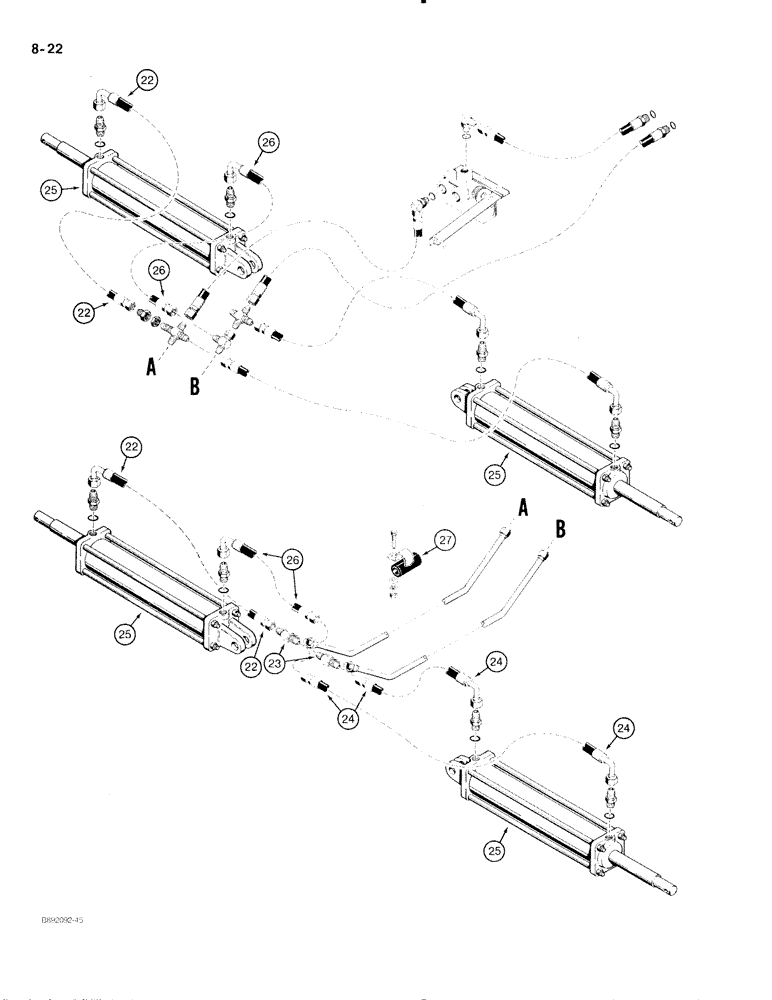

Запчасти Case IH 475 (8-22) - WING LIFT HYDRAULIC CIRCUIT, 1/2" ID HOSES, W/DIVERTER VALVE, TRACTORS W/SINGLE HYDRAULIC OUTLET (08) - HYDRAULICS

22

147878C1

HOSE

- 1/4 inch ID x 65 inch long, to left-hand cylinders, rod end (Disk Harrow coded G, H, J and K)

2шт.

22

100850C1

HOSE,0.25" ID x 74.00", SAE CLASS7 D-16

- to left-hand cylinders, rod end (Disk Harrows coded L, M and N)

2шт.

23

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

24

60233C1

HOSE

- 1/4 inch ID x 54 inch long, tee to right-hand rear wing lift cylinder (Disk Harrow coded G, H, J and K)

2шт.

24

147878C1

HOSE

- 1/4 inch ID x 65 inch long, tee to right-hand rear wing lift cylinder (Disk Harrow coded L, M and N)

2шт.

25

62125C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 8 inch stroke, wing lift, parts list Figure 8-50, no longer available

4шт.

for service order 1282321C91 cylinder assembly, see Figure 8-52, also order (2) 28543R1 pins, (2) 103398 hair pins, (1) 1252130C1 adapter and (1) 237-6008 O-ring

1шт.

25

1282321C91

CYLINDER

ASSEMBLY - 3 inch ID x 12 inch stroke, wing lift, parts list Figure 8-52

4шт.

26

60232C1

HOSE

- 1/4 inch ID x 34 inch long, to left-hand cylinders, closed end (Disk Harrow coded G, H, J and K)

2шт.

26

61909C1

HOSE,0.25" ID x 44.00", Class 7

- To LH cylinders, Closed end (Disk Harrows coded L, M and N) 0.25" ID x 44.00", Class 7

2шт.

27

REF

INSTRUCTION

SHIELD - hose, 1-1/2 inch long, cut from 7/16 inch ID heater hose

4шт.

492620R1

CLAMP

- tube

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long (Disk Harrows coded L, M and N)

2шт.
