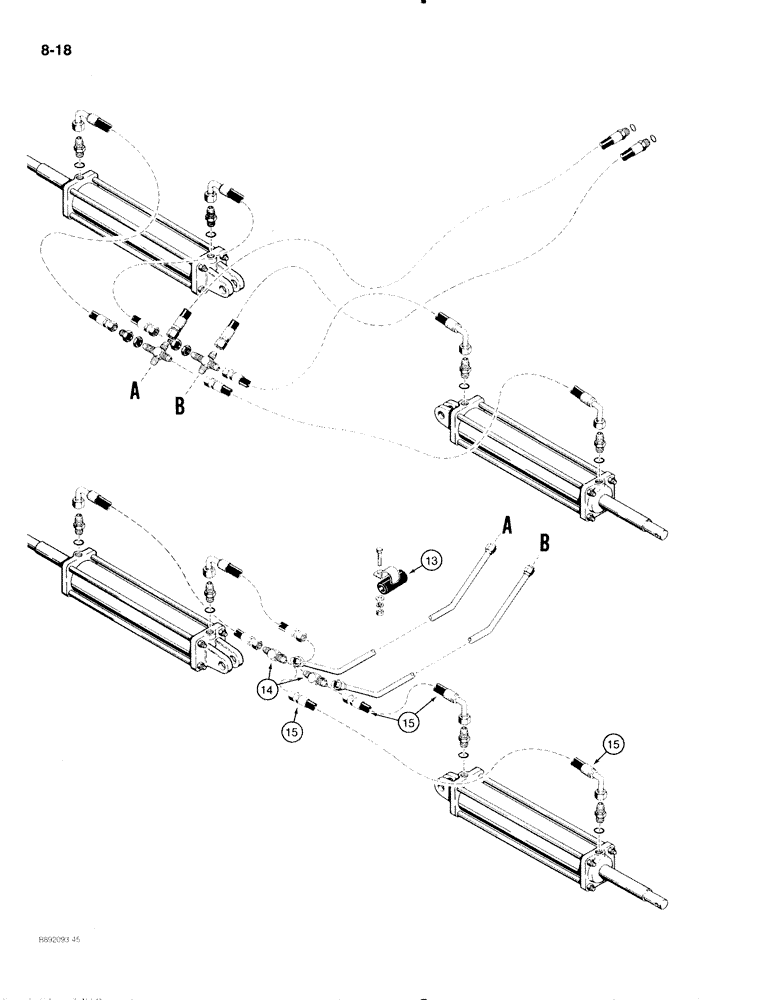

Запчасти Case IH 475 (8-18) - (WING LIFT HYDRAULIC CIRCUIT, 1/2 INCH ID HOSES, WITHOUT DIVERTER VALVE (08) - HYDRAULICS

13

REF

INSTRUCTION

SHIELD - hose, 1-1/2 inch long, cut from 7/16 inch ID heater hose

4шт.

492620R1

CLAMP

- tube

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch

4шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

14

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

15

60233C1

HOSE

- 1/4 inch ID x 54 inch long, tee to right-hand rear cylinder (Disk Harrow coded G, H, J and K)

2шт.

15

147878C1

HOSE

- 1/4 inch ID x 65 inch long, tee to right-hand rear cylinder (Disk Harrow coded L, M and N)

2шт.
