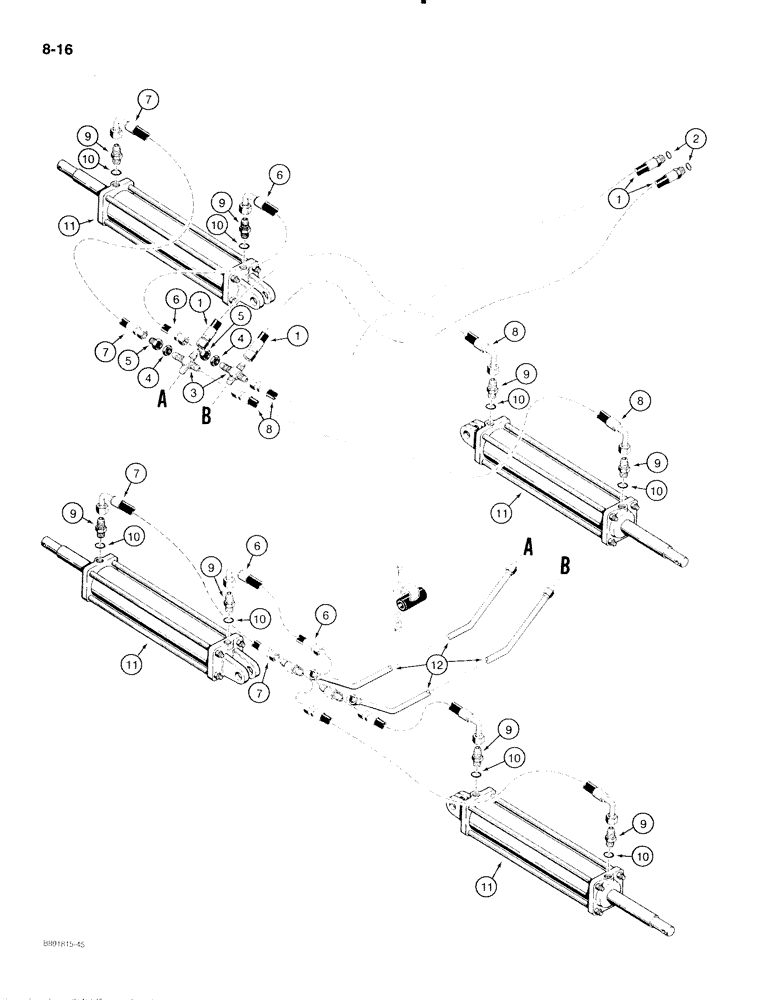

Запчасти Case IH 475 (8-16) - WING LIFT HYDRAULIC CIRCUIT, 1/2 INCH ID HOSES WITHOUT DIVERTER VALVE (08) - HYDRAULICS

1

953468R91

HOSE

- 1/2 inch ID x 122 inch long, Serial Range: tractor-cross

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

3

532321R1

CROSS

- special

2шт.

4

9403529

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - hex, special

2шт.

5

9403402

REDUCER,37 Degree, 5/8" x 1/4" Tube

- 5/8 to 3/8 inch

2шт.

6

60232C1

HOSE

- 1/4 inch ID x 34 inch long, to left-hand cylinders, closed end (Disk Harrow coded G, H, J and K)

2шт.

6

61909C1

HOSE,0.25" ID x 44.00", Class 7

- To LH cylinders, Closed end (Disk Harrows coded L, M and N) 0.25" ID x 44.00", Class 7

2шт.

7

147878C1

HOSE

- 1/4 inch ID x 65 inch long, to left-hand cylinders, rod end (Disk Harrow coded G, H, J and K)

2шт.

7

100850C1

HOSE,0.25" ID x 74.00", SAE CLASS7 D-16

- to left-hand cylinders, rod end (Disk Harrows coded L, M and N)

2шт.

8

61909C1

HOSE,0.25" ID x 44.00", Class 7

- To front RH cylinder (Disk Harrow coded G, H, J and K) 0.25" ID x 44.00", Class 7

2шт.

8

147878C1

HOSE

- 1/4 inch ID x 65 inch long, to front right-hand cylinder (Disk Harrows coded L, M and N)

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

8шт.

11

62125C91

CYLINDER

4шт.

CYLINDER ASSEMBLY - 3 inch ID x 12 inch stroke, wing lift, parts list Figure 8-50, no longer available, for service order 1282321C91 cylinder assembly, see Figure 8-52, also order (2) 28543R1 pins, (2) 103398 hair pins, (1) 1252130C1 adapter and (1) 570828R1 O-ring

1шт.

11

1282321C91

CYLINDER

ASSEMBLY - 3 inch ID x 12 inch stroke

1шт.

wing lift, parts list Figure 8-52

4шт.

12

62017C1

TUBE

- cross to tee (Disk Harrow coded L, M and N)

2шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
