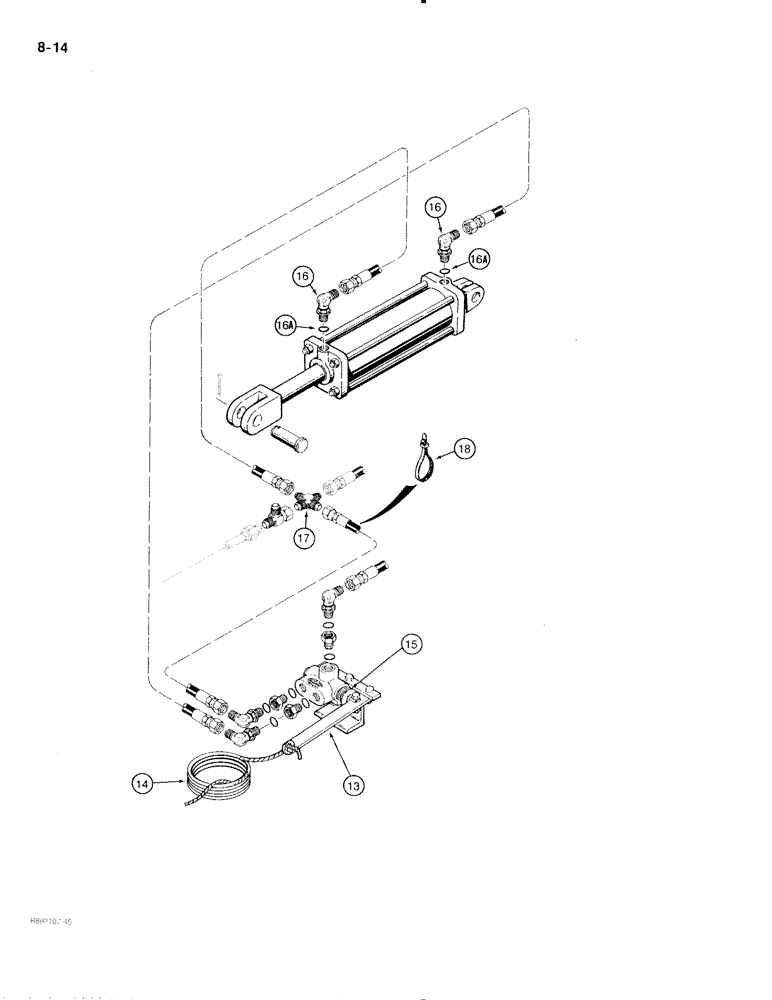

Запчасти Case IH 475 (8-14) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DISK HARROWS WITH HYDR. FOLDING WINGS, 3/8 INCH ID HOSES AT CYL. (08) - HYDRAULICS

13

57069C1

BAR

LEVER - control, diverter valve

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

21886R1

HEADED PIN,1/4" x 1"

PIN - clevis, 1/4 x 1 inch

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

14

REF

INSTRUCTION

ROPE - 1/4 x 144 inch, valve control lever, purchase locally

1шт.

15

369462R1

SPRING

- lever

1шт.

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch

1шт.

16

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flared x 3/4-16 inch O-ring boss

2шт.

16a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

9403176

4 WAY CONNECTION,9/16"-18, 37 Degree

CROSS - special

1шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.
