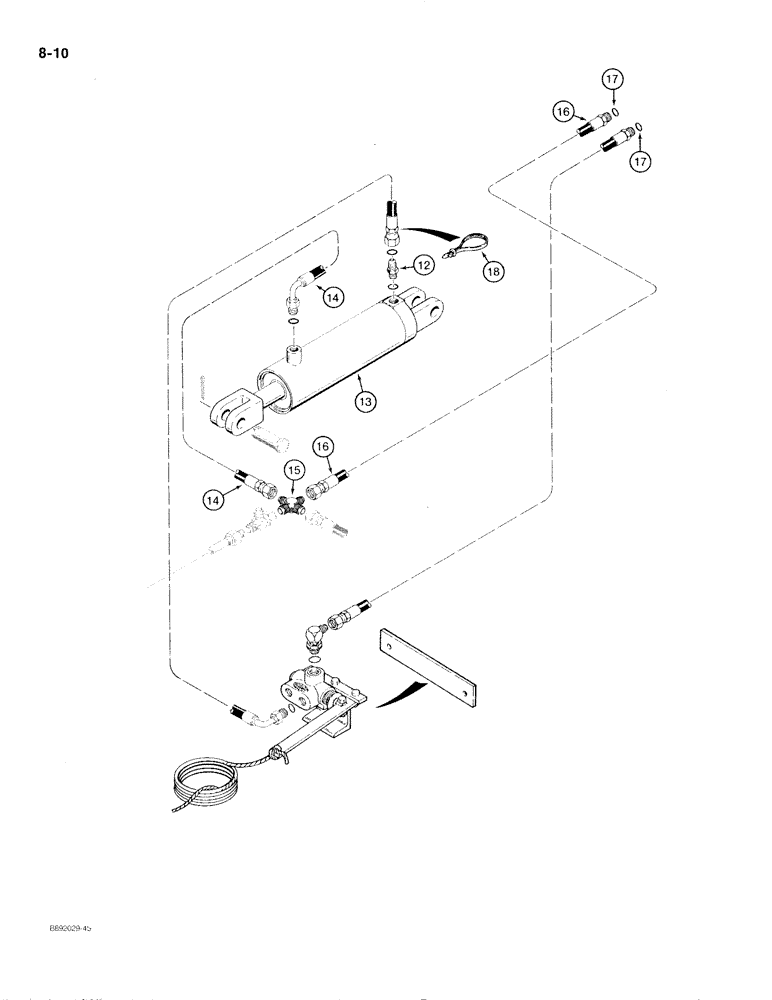

Запчасти Case IH 475 (8-10) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DISK HARROWS WITH HYDRAULIC FOLDING WINGS, 1/2 INCH ID HOSES (08) - HYDRAULICS

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

13

548003R92

CYLINDER BLOCK

CYLINDER ASSEMBLY - 4 inch ID x 8 inch stroke, transport

1шт.

lift, parts list Figure 8-36, no longer available, for service order 1272148C91 cylinder assembly, parts list Figure 8-44, also order (2) 61571C2 pins, (2) 132-349 cotter pins, (1) 1252129C1 adapter and (1) 237-6008 O-ring

1шт.

13

64412C91

CYLINDER BLOCK

CYLINDER ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift, parts list Figure 8-42, if used

1шт.

13

1272148C91

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke

1шт.

transport lift, parts list Figure 8-44, if used

1шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - clevis, 1 x 3-1/4 inch, cylinder mounting

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female O-ring boss

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

14

653318R91

HOSE

- 1/4 inch ID x 34 inch long, cylinder rod, Serial Range: end-cross

1шт.

15

532321R1

CROSS

- special

1шт.

16

953468R91

HOSE

- 1/2 inch ID x 122 inch long, Serial Range: cross-tractor

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.
