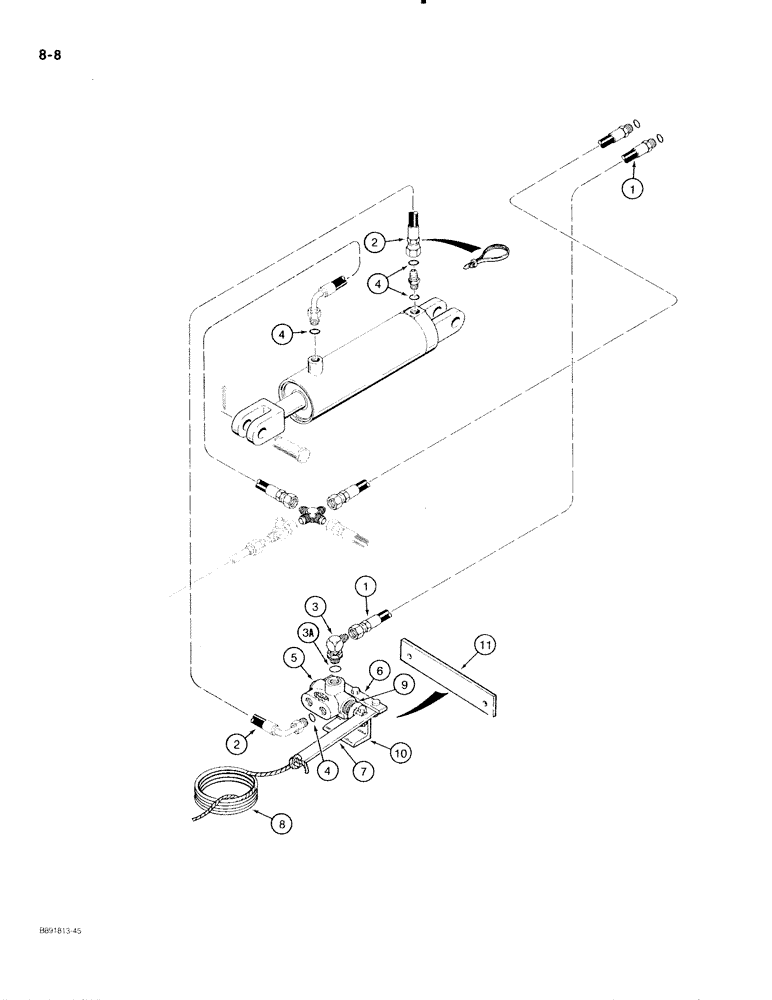

Запчасти Case IH 475 (8-08) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DISK HARROWS WITH HYDRAULIC FOLDING WINGS, 1/2 INCH ID HOSES (08) - HYDRAULICS

1

953468R91

HOSE

- 1/2 inch ID x 122 inch long, tractor to diverter valve

1шт.

2

470779R92

HOSE

- 1/2 inch ID x 14 inch long, cylinder closed end to diverter valve

1шт.

3

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 deg adj, 7/8-14 inch thread

1шт.

3a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

5

478887R91

VALVE

ASSEMBLY - diverter, parts list Figure 8-28

1шт.

6

57068C1

BAR

- pivot, valve lever

1шт.

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

7

57069C1

BAR

LEVER - control, diverter valve

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

21886R1

HEADED PIN,1/4" x 1"

PIN - clevis, 1/4 x 1 inch

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

8

REF

INSTRUCTION

ROPE - 1/4 x 144 inch, valve control lever, purchase locally

1шт.

9

369462R1

SPRING

- lever

1шт.

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch

1шт.

10

62010C1

ANGLE

BRACKET - mounting, diverter valve

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

- hex, 3/8 NC x 1-1/4 inch

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

11

60268C1

BAR

- mounting, valve

1шт.
