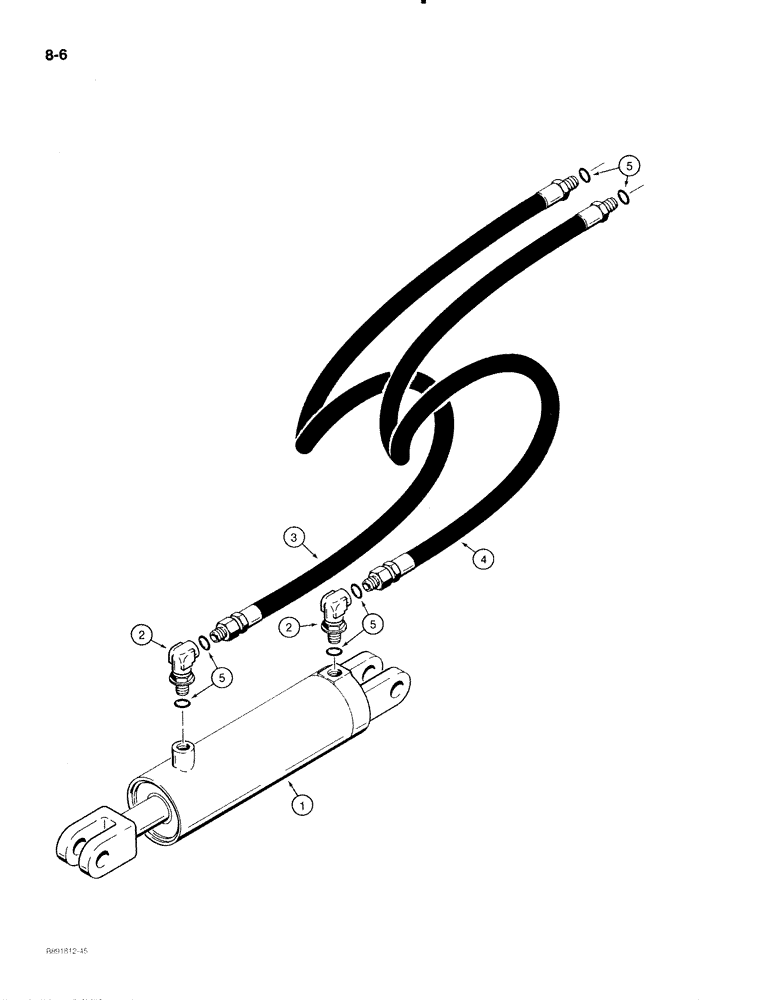

Запчасти Case IH 475 (8-06) - TRANSPORT LIFT HYDRAULIC CIRCUIT, DISK HARROWS WITH HYDRAULIC FOLDING WINGS (08) - HYDRAULICS

1

548003R92

CYLINDER BLOCK

CYLINDER ASSEMBLY - 4 inch ID x 8 inch stroke, transport

1шт.

lift, parts list Figure 8-36, no longer available, for service order 1272148C91 cylinder assembly, parts list Figure 8-44, also order (2) 61571C2 pins, (2) 132-349 cotter pins, (1) 1252129C1 adapter and (1) 237-6008 O-ring

1шт.

1

64412C91

CYLINDER BLOCK

CYLINDER ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift, parts list page 8-43, if used

1шт.

1

1272148C91

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke, transport lift, parts list page 8-45, if used

1шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - clevis, 1 x 3-1/4 inch, cylinder mounting

2шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female O-ring boss

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

2

371357R91

ELBOW

- 90 deg adj, 7/8-14 fem x 3/4-16 inch O-ring

2шт.

3

475228R91

HOSE

- 1/2 inch ID x 120 inch long, tractor to cylinder, rod end

1шт.

4

372437R91

HOSE

- 1/2 inch ID x 112 inch long, tractor to cylinder, closed end

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

6шт.

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.
