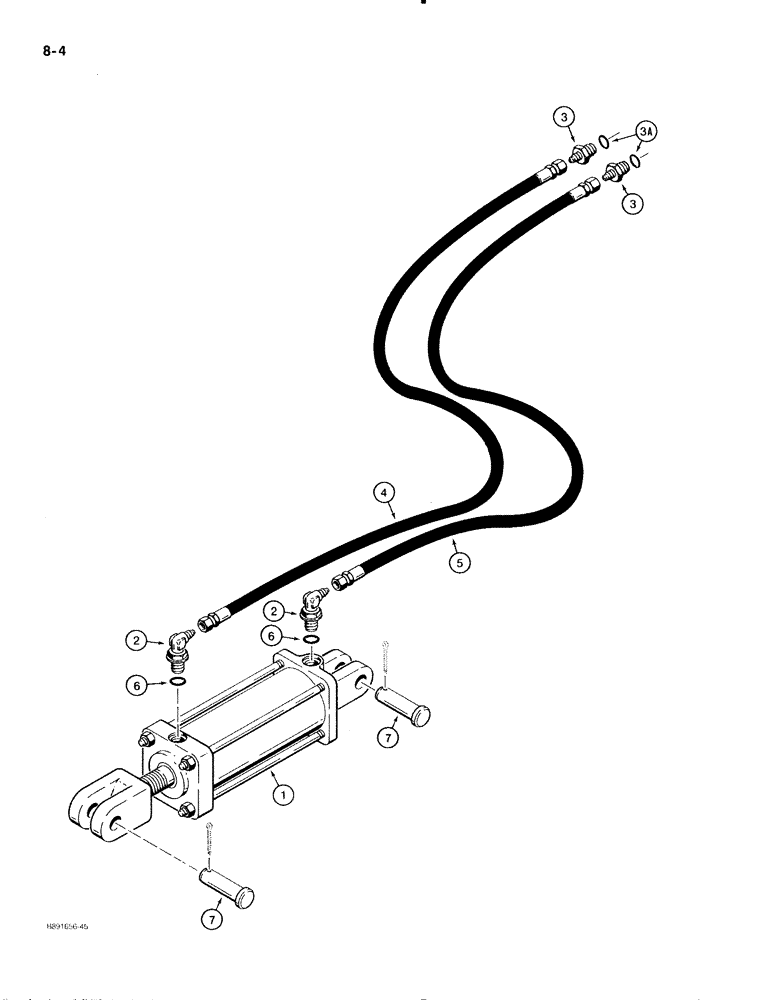

Запчасти Case IH 475 (8-04) - TRANSPORT LIFT HYDRAULIC CIRCUIT, HOSES WITH FEMALE ENDS (08) - HYDRAULICS

1

1272147C91

CYLINDER

ASSEMBLY - 3-1/2 inch ID x 8 inch stroke

1шт.

transport lift, parts list Figure 8-40, if used

1шт.

1

1272148C91

CYLINDER

ASSEMBLY - 4 inch ID x 8 inch stroke

1шт.

transport lift, parts list Figure 8-44, if used

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 9/16-18 flare x 3/4-16 inch O-ring boss, use with 3/8 inch ID hoses

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, use with 1/2 inch ID hoses

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, use with 3/8 inch ID hoses

2шт.

3a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

147974C1

FLEXIBLE HOSE

HOSE - 1/2 inch ID x 120 inch long, no longer available, order 1 each of the following: 1301350C2 hose, 218-5354 connector, 9403400 adapter and 9403528 nut

1шт.

4

1301350C2

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 120 inch long, to cylinder, rod end

1шт.

5

147973C1

FLEXIBLE HOSE

HOSE - 1/2 inch ID x 115 inch long, no longer available, order 1 each of the following: 812381C2 hose, 218-5354 connector, 9403400 adapter and 9403528 nut

1шт.

5

812381C2

HYDRAULIC HOSE

HOSE - 3/8 inch ID x 115 inch long, to cylinder, closed end

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Included with 218-5128 elbow

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Included with 218-5106 elbow

2шт.

7

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

2шт.

132-341

COTTER PIN,5/32" x 1 1/2"

PIN, SPLIT (COTTER), 5/32" x 1 1/2"

2шт.
