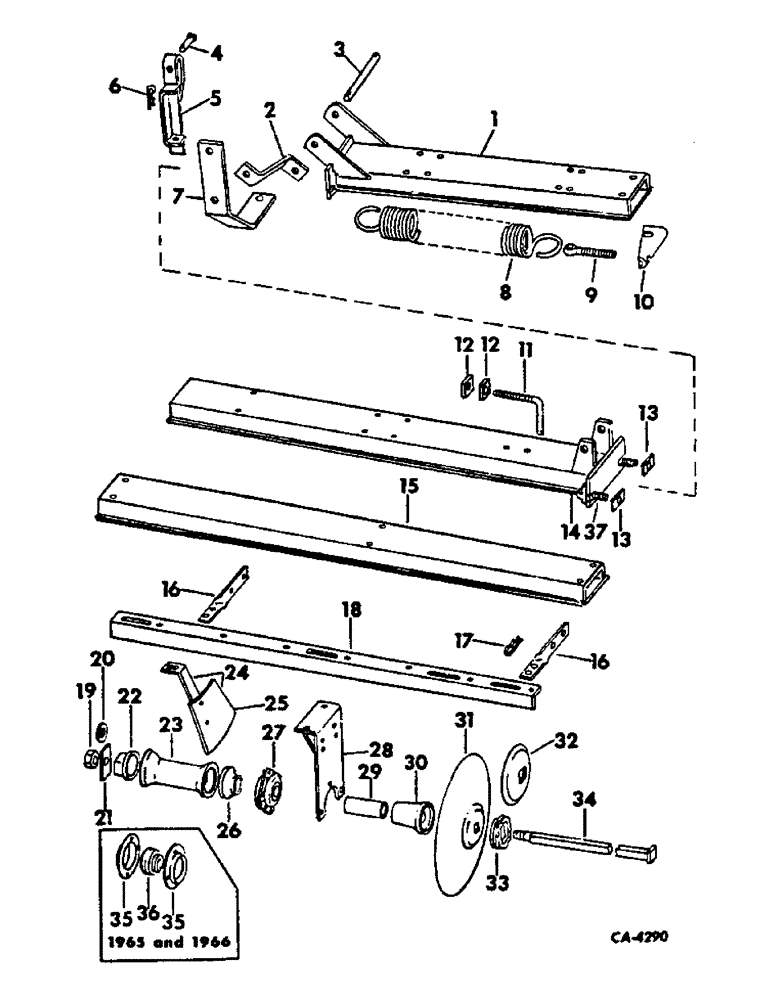

Запчасти Case IH 470 (P-08) - BEARING, DISK AND GANG

1

481487R91

BAR ASSY, gang, 29-1/2 in., 2 used on front and 2 used on rear units M, N, Q and T

1шт.

1

481497R91

BAR ASSY, gang, 41-1/2 in., 2 used on front and 2 used on rear of units P, R, U, V, W, AA, AB, and AC

1шт.

2

481493R1

BRACE, spring bracket, 1 per gang on units M, N, Q and T

1шт.

2

481501R1

BRACE, spring bracket, 1 per gang on units P, R, S, U, V, W, AA, AB and AC

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8-11 x 1-3/4 C-Z hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

481490R1

PIN, shaft pivot, 1 per gang on units M through W, AA, AB and AC

1шт.

21639R1

PIN, 5/16 x 1-1/2 C-Z self-opening cot.

2шт.

4

471039R1

PIN

lockout, 1 per gang on units M through W, AA, AB and AC

1шт.

5

481495R11

BRACKET ASSY, lockout, 1 per gang on units M thorugh W, AA, AB and AC

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

517843R1

COTTER PIN

PIN, quick attachable cot., 1 per gang units M thorugh W, AA, AB and AC

1шт.

7

481492R1

BRACKET, spring, 1 per RH gang on units M, N, Q and T

1шт.

7

481500R1

BRACKET, spring, 1 per gang on units P, R, S, V, V, W, AA, AB and AC

1шт.

8

481494R1

SPRING, gang lift, 1 per gang on units M, N, Q and T

1шт.

8

481502R1

SPRING

gang lift, 1 per gang on units P, R, S, U, V, W, AA, AB and AC

1шт.

9

527200R1

EYEBOLT,Eye, 3/4" - 10 x 6"

1 per gang units M thorugh W, AA, AB and AC

1шт.

280954

NUT,3/4"-10, G5

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

2шт.

10

468619R2

ANCHOR

spring, 1 per gang on units M through W, AA, AB and AC

1шт.

11

468603R1

ROD,7/8" - 9 x 6 23/64"

BOLT, angling

2шт.

426898

NUT,Jam, 7/8"-9, G5

7/8-9 C-Z hex. jam

4шт.

131001

WASHER, 15/16 x 2-1/4 x .136 C-Z

4шт.

12

481486R1

BLOCK

4шт.

13

473549R1

BAR

SHIM, gang bar, 2 per gang on units A, B, C, X and Y

1шт.

280954

NUT,3/4"-10, G5

1шт.

486788R1

WASHER

25/32 x 1-1/2 x 7 ga

1шт.

14

481479R91

BAR ASSY, gang, 60-3/8 in., 2 used on front of units A, B and C

1шт.

14

544005R1

BAR ASSY, gang, 73-1/2 in., 2 used on front of units X and Y

1шт.

14

544006R1

BAR ASSY, gang, 76 in., 2 used on rear of units X and Y

1шт.

15

481838R91

BAR ASSY, gang, 66 in., 2 used on front of units D, F, G, and J

1шт.

15

481841R91

BAR ASSY, gang, 72-1/2 in., 2 used on rear of units D and G

1шт.

15

481835R91

BAR ASSY, gang, 76 in., 2 used on rear of units E, F, H and J

1шт.

15

481832R91

BAR ASSY, gang, 71-1/2 in., 2 used on front of units E and H

1шт.

15

487179R91

BAR ASSY, gang, 78 in., 2 used on front of units K and L

1шт.

15

487182R91

BAR ASSY, gang, 80-3/4 in., 2 used on rear of units K and L

1шт.

16

482073R1

BRACKET

scrapper bar support, 1 per standard

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

17

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

18

ANGLE, scraper bar, see scraper angles

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8-11 x 1-1/2 C-Z sq-nk crg

1шт.

608595R1

NUT

5/8-11 C-Z hex. lock

1шт.

19

220094

NUT,1 1/8"-7, G5

1-1/8-7 C-Z hex.

4шт.

20

492-11112

LOCK WASHER,1 1/8"

WASHER, 1-1/8 C-Z med lock, 2 used on front of units A, B, C, X and Y, 2 used on rear of units M through W, AA, AB and AC

1шт.

RE IT NO. 21 489292R1 (MEASURES 2.7" LONG, 1.75" WIDE) IF YOU NEED A BIGGER PC, PART NO. P34101 IS 4" LONG AND 1.875 WIDE) PH

1шт.

21

P34101

LOCK

STRIP, arbor bolt, 4 used with units D through L, 2 used on front of units M through W and AA through AC, 2 used on rear of units A, B, C, X and Y

1шт.

21

489292R1

SUPPORT ASSY.

STRIP, arbor bolt, 2 used on front of units A, B, C, X and Y, 2 used on rear of units M through W and AA through AC

1шт.

22

481611R1

WASHER

arbor nut, 4 used with units D through L, 2 used on rear of units A, B, C, X and Y

1шт.

22

489295R1

WASHER

arbor nut, 2 used on front of units A, B, C, X, and Y, 2 used on rear of units M through W and AA through AC

1шт.

22

PA4167

WASHER

arbor nut, 2 used on front of units G through W and AA through AC

1шт.

23

481416R1

SPOOL

spacing, 7-1/2 in. spacing

1шт.

23

481417R1

SPOOL

spacing, 9 in. spacing

1шт.

24

465060R93

SCRAPER

ASSY, LH

1шт.

24

465061R93

BLADE

SCRAPER ASSY, RH

1шт.

24

540458R91

BLADE

SCRAPER ASSY, LH, heavy duty

1шт.

24

540459R91

BLADE

SCRAPER ASSY, RH, heavy duty

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 C-Z sq-nk crg

2шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

disk scraper, heavy duty

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

25

543999R1

BLADE

scraper, will work for 465062R1, 1 per scraper assy

1шт.

25

483096R1

STRAP

BLADE, scraper, heavy duty, 1 per scraper assy

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd

2шт.

26

472592R2

SPOOL

bearing, 1 per standard, 7-1/2 in. spacing

1шт.

26

472593R2

SPOOL

bearing, 1 per standard, 9 in. spacing

1шт.

27

ST491A

BALL BEARING,45mm ID

BEARING, regreasable standard ball, will work for ST490A, 1 per standard

1шт.

27

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

28

479022R91

STANDARD ASSY, bearing, on orders for, 479022R91 furnish 485740R1

1шт.

28

485740R1

SUPPORT ASSY.

STANDARD ASSY, bearing, 12-1/2 in.

1шт.

28

479018R91

SUPPORT ASSY.

STANDARD ASSY, bearing, on orders for 479018R91 furnish, 485752R1

1шт.

28

485752R1

SUPPORT ASSY.

STANDARD ASSY, bearing, 13-1/2 in.

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8-11 x 3-1/4 C-Z hex-hd mach, 2 per standard

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 per standard

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 per standard 5/8"

1шт.

29

652383R1

BUSHING,38.91mm ID x 44.45mm OD x 128.6mm L

arbor bolt support, for 7-1/2 in. disk spacing, 1 per standard

1шт.

29

472594R1

BUSHING,38.91mm ID x 44.45mm OD x 154mm L

arbor bolt support, for 9 in. disk spacing, 1 per standard

1шт.

30

472591R2

SPOOL

bearing, 1 per standard

1шт.

31

482987R2

DISK HARROW

BLADE, 18 in. x 8 ga nothched disk

1шт.

31

651199R1

DISC

BLADE, 18 in. , 9 ga solid disk

1шт.

31

482986R2

DISK HARROW

BLADE, 18 in. x 9 ga solid disk, will work for 652763R1

1шт.

31

651200R1

DISK HARROW

BLADE, 18 in. x 9 ga notched disk

1шт.

31

652764R1

DISC

BLADE, 18 in. x 9 ga notched disk

1шт.

31

140561/2

DISC

BLADE, 18 in. x 10 ga solid disk

1шт.

31

143521/2

NOTCHED DISK

BLADE, 18 in. 10 ga notched disk

1шт.

31

482973R1

DISC

BLADE, 20 in. x 7 ga solid disk, will work for 652765R1

1шт.

31

482974R1

DISC

BLADE, 20 in. x 7 ga notched disk, will work for 652766R1

1шт.

31

789241R1

BLADE, 20 in. x 8 ga notched

1шт.

31

14381182

BLADE, 20 in. x 9 ga solid disk

1шт.

31

143531/2

NOTCHED DISK

BLADE, 2o in. 9 ga notched disk

1шт.

31

PA13373

DISC

BLADE, 22 in. x 6 ga solid disk

1шт.

31

482975R1

PLOW DISC

BLADE, 22 in. x 6 ga solid disk

1шт.

31

482976R1

DISK HARROW

BLADE, 22 in. x 6 ga notched disk

1шт.

31

472218R1

DISC

BLADE, 22 in. x 7 ga solid disk

1шт.

31

P24425

DISC

BLADE, 22 in. x 7 ga notched disk

1шт.

31

472219R1

DISC

BLADE, 22 in. x 7 ga notched disk

1шт.

32

468584R2

SQ HOLE WASHER

bumper

2шт.

33

489296R1

WASHER

head, 2 used on rear of units D through

1шт.

33

466950R2

WASHER

head, 2 used on rear of units K through W and AA through AC

1шт.

34

472585R2

BOLT,1 1/8"-7 x 64.4"

arbor, 64-3/8 in., 4 used with unit A, 2 used with unit B

1шт.

34

652939R2

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 67.4"

arbor, 67.4 in., 2 used with unit B, 4 used with unit C

1шт.

34

468582R2

BOLT (SPREADER),1 1/8"-7 x 76.7"

BOLT, arbor, 76-3/8 in., 4 used with units D and X, 2 used with unit F

1шт.

34

468583R2

BOLT (SPREADER),1 1/8"-7 x 79.4"

BOLT, arbor, 79-3/8 in., 4 used with units E and Y, 2 used with unit F

1шт.

34

481844R1

BOLT,1 1/8"-7 x 85.4"

arbor, 85-3/8 in., 4 used with unit G, 2 used with unit J

1шт.

34

481845R1

BOLT,1 1/8"-7 x 86.9"

arbor, 86-7/8 in., 4 used with unit H, 2 used with unit J

1шт.

487168R1

BOLT,1 1/8"-7 x 94.6"

arbor, 94-3/8 in., 4 used with units K and L

1шт.

34

471019R1

BOLT,1 1/8"-7 x 18.6"

arbor, 18-5/8 in., 4 used with units M

1шт.

34

471017R1

BOLT,1 1/8"-7 x 26.1"

arbor, 26-1/8 in., 4 used with unit N, 2 used with unit T

1шт.

34

474354R2

BOLT, arbor, 33-7/8 in., 4 used with units P and AA

1шт.

34

471018R1

BOLT, arbor, 21-5/8 in., 4 used with unit Q, 2 used with unit T

1шт.

34

468608R1

BOLT,1 1/8"-7 x 41.3"

arbor, 41-3/8 in., 4 used with units R and AC, 2 used with unit S

1шт.

34

468607R1

BOLT,1 1/8"-7 x 39.8"

arbor, 39-7/8 in., 2 used with unit S, 4 used with units W and Ab

1шт.

34

471016R1

BOLT,1 1/8"-7 x 30.6"

arbor, 30-5/8 in., 2 used with unit U, 4 used with unit V

1шт.

35

652386R1

FLANGE

bearing mounting, 2 per standard

1шт.

14995R1

BOLT

3/8-16 x 3/4 sq-nk crg

3шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 sq-nk crg

3шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

36

BEARING, standard ball, on orders for ST607A, furnish ST491A, and attaching hardware

1шт.

37

486789R91

PACKAGE

eyebolt service, used on units A, B, C, X and Y, consists of (1) pin 486727R1, (1( pivot 486787R1, (1) washer 486788R1, (1) nut 220086

1шт.
