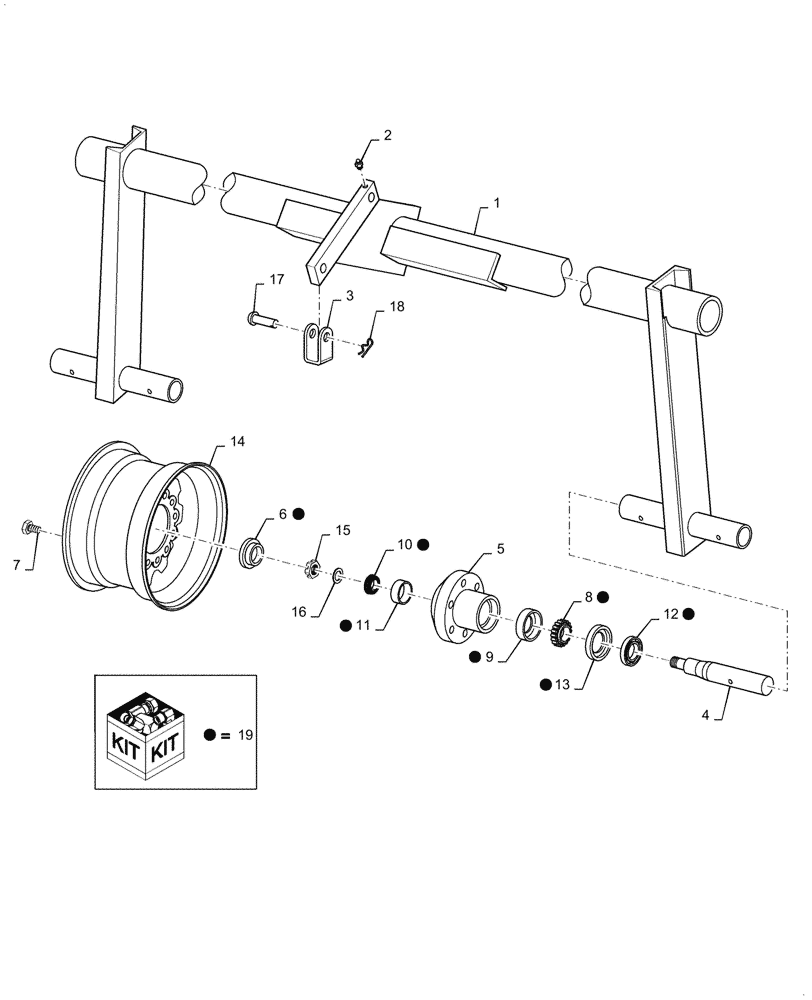

Запчасти Case IH 470 (P-07) - WHEEL AXLE, HUB AND WHEEL

1

481474R93

AXLE ASSY, wheel

1шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cad hex. lock

4шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 C-Z hex-hd cap

4шт.

2

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, str drive type lub

1шт.

3

468580R1

CLEVIS

Transport

1шт.

18842R1

BOLT,Hex, 3/4"-10 x 4 1/2", G2

3/4-10 x 4-1/2 C-Z hex-hd mach

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

2шт.

4

478375R1

SPINDLE

wheel

2шт.

5

465493R1

HUB

wheel

2шт.

6

663908R1

CAP

hub

2шт.

7

549962R91

BOLT, wheel, will work for 351079R1

12шт.

8

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Roller, outer

2шт.

9

371883R1

BEARING CUP

Roller outer

2шт.

10

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, roller bearing inner

2шт.

11

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Roller inner

2шт.

12

667599R91

OIL SEAL

oil

2шт.

13

667564R1

RING

wear sleeve

2шт.

14

481344R91

WHEEL

ASSY, 14 x 8KB, disk & rim, for 9.50-14 tire

2шт.

14

481345R91

RIM

WHEEL ASSY, 14 x 6KB, disk & rim, for 9.50-14 tire

2шт.

14

614424R91

WHEEL ASSY.

WHEEL ASSY, 15 x 6LB, disk & rim, for 7.60-15 tire

2шт.

14

463034R1

RIM

WHEEL, dual 14 x 5KB, for 7.50 14 tire 4 ply

4шт.

15

69442D

NUT

3/4-16 slt hex. jam

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

16

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga HT, replaces 366112R1

2шт.

17

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 zn-plted std-hd

1шт.

18

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

19

63881C92

BEARING SET,21.43mm ID x 65.08mm OD

Kit, Wheel Bearing, Incl 6, 8 - 13

1шт.
