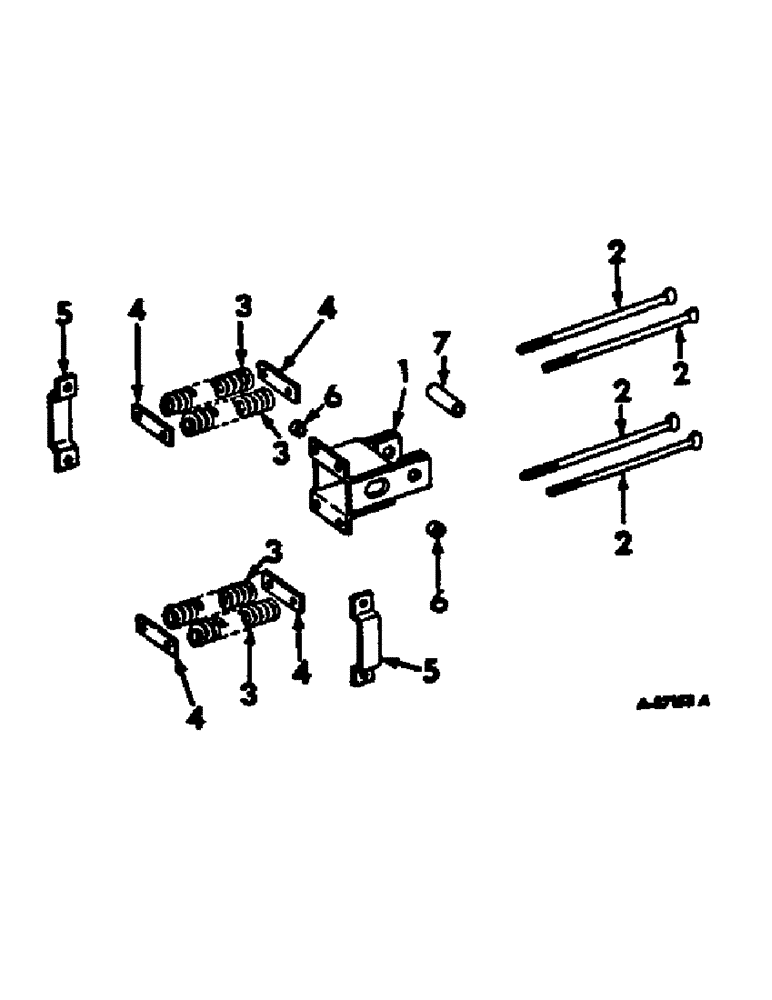

Запчасти Case IH 470 (P-06) - CUSHION HITCH CLEVIS ATTACHMENT

1

481293R91

HITCH ASSY

1шт.

2

481295R1

ROD,3/4" - 10 x 15 1/2"

BOLT, spring

4шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 C-Z hex. lock

4шт.

3

512505R1

SPRING

hitch

4шт.

4

481299R1

BAR

spring back-up

4шт.

5

481300R1

CLAMP

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

468528R2

BUSHING

hitch

2шт.

7

468548R1

BUSHING

hitch clevis

1шт.

21215R1

BOLT,7/8" x 7 1/4", Gr 1

7/8-9 x 7-1/4 C-Z hex-hd mach

1шт.

462250R1

NUT

7/8-9 C-Z hex. lock

2шт.

20577R1

BOLT,Hex, 7/8" - 9 x 7", Gr 5

SCREW, 7/8-9 x 7 C-Z hex-hd cap

1шт.

21212R1

WASHER

29/32 x 2 x 11 ga C-Z

2шт.
