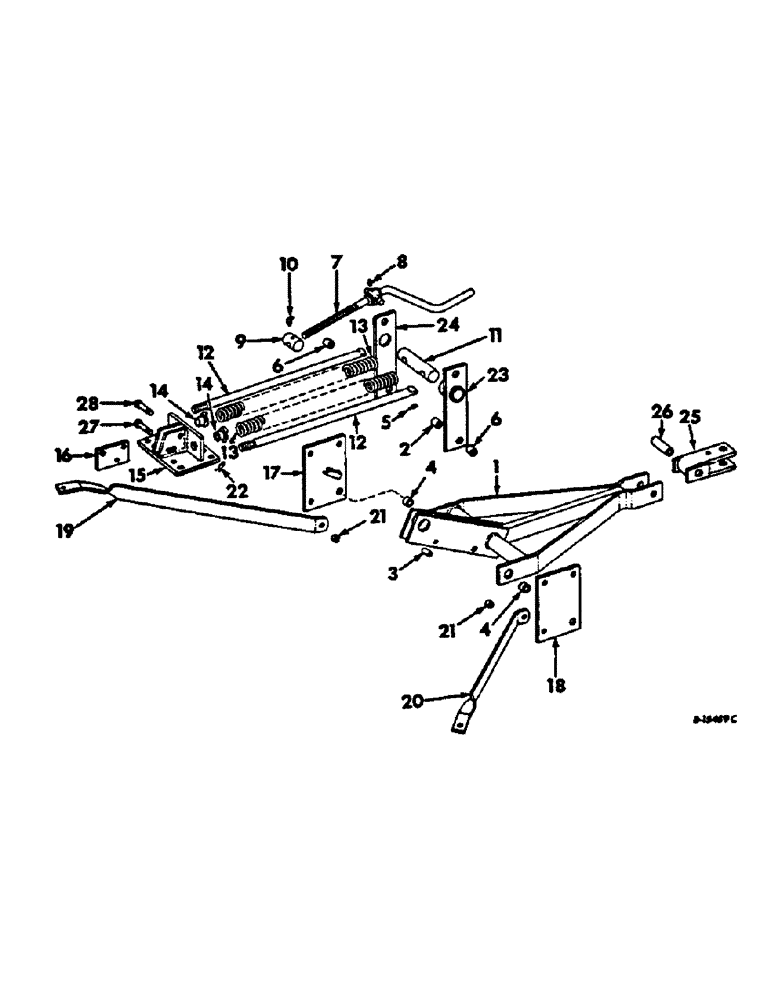

Запчасти Case IH 470 (P-05) - HITCH
№
Артикул
Название
Примечание
Количество
1
471175R91
TRAILER HITCH
HITCH ASSY
1шт.
18801R1
BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2
7/16-14 x 2-3/4 C-Z hex-hd mach
1шт.
18842R1
BOLT,Hex, 3/4"-10 x 4 1/2", G2
3/4-10 x 4-1/2 C-Z hex-hd mach
1шт.
271501
SOCKET
NUT, 7/16-14 C-Z hex.
1шт.
280954
NUT,3/4"-10, G5
1шт.
425-1014
NUT,7/8"-9, G5
NUT, 7/8"-9, G5
2шт.
271818
SPRING,Hex, 7/8" - 9 x 2 3/4", Gr 5
SCREW, 7/8-9 x 2-3/4 C-Z hex-hd cap
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
467750R1
WASHER
25/32 x 1-1/2 x 11 ga C-Z
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
NLS
NO LONGER SERVICED
7/8"
2шт.
2
585542R1
SPACER, 3/4 x 1-1/4 pipe
1шт.
3
K11064
SPACER,3/8" Pipe x 1 1/4"
3/8 x 1-1/4 pipe
1шт.
4
468528R2
BUSHING
hitch pivot
2шт.
5
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 str lub
1шт.
6
468530R1
SPACER,3/4" Pipe x 9/16"
BUSHING
2шт.
7
468531R12
SCREW
ASSY, hitch
1шт.
8
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 str lub
1шт.
9
468533R1
LINK
SWIVEL, crank
1шт.
11
468534R1
PIVOT, spring guide, order pivot 489127R1
1шт.
11
489127R1
PIN,50.8mm OD x 208.28mm L
PIVOT, spring guide
1шт.
12
468535R2
GUIDE
spring
2шт.
426899
NUT,Jam, 1"-8, G5
1-8 C-Z hex. jam
4шт.
21162R1
WASHER
2 x 1-1/32 x 7 ga C-Z
2шт.
13
481471R1
SPRING
hitch, 45 coils
2шт.
14
468537R1
SPRING SEAT
BUSHING, hitch spring
2шт.
15
481286R11
SUPPORT ASSY, cyl
1шт.
18838R1
BOLT, 3/4-10 x 2 C-Z hex-hd mach Hex, 3/4"-10 x 2", G2
4шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 C-Z hex.
2шт.
280954
NUT,3/4"-10, G5
4шт.
271548
BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5
SCREW, 5/8-11 x 1-3/4 C-Z hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
16
481287R1
BLOCK, cyl, 5.9 in.
1шт.
16
490200R1
BLOCK, cyl, 9.1 in.
1шт.
17
471180R91
BRACKET
PLATE ASSY, hitch LH
1шт.
18824R1
BOLT,Hex, 5/8"-11 x 2 1/2", G2
5/8-11 x 2-1/2 C-Z hex-hd mach
1шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 C-Z hex.
1шт.
280954
NUT,3/4"-10, G5
2шт.
21204R1
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8
SCREW, 3/4-10 x 1-3/4 C-Z hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
18
471181R91
PLATE
ASSY, hitch RH
1шт.
18824R1
BOLT,Hex, 5/8"-11 x 2 1/2", G2
5/8-11 x 2-1/2 C-Z hex-hd mach
1шт.
280374
NUT,Hex, 5/8" - 11, Gr 5
5/8-11 C-Z hex.
1шт.
280954
NUT,3/4"-10, G5
2шт.
21204R1
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8
SCREW, 3/4-10 x 1-3/4 C-Z hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
19
481288R1
BRACE, diagonal LH, order brace 481472R1
1шт.
19
481472R1
BRACE
diagonal LH
1шт.
20
481289R1
BRACE, diagonal RH, order brace 481473R1
1шт.
20
481473R1
BRACE
diagonal RH
1шт.
21
5528S
SPACER
2шт.
22
517843R1
COTTER PIN
PIN, 3/16 x 2-7/8 quick attachable cot.
1шт.
23
483184R91
ARM ASSY, adjusting
1шт.
24
483185R1
BAR
adjusting arm
1шт.
18837R1
BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 2
3/4-10 x 2 C-Z hex-hd mach
4шт.
280954
NUT,3/4"-10, G5
4шт.
18838R1
SCREW, 3/4-10 x 2 C-Z hex-hd cap Hex, 3/4"-10 x 2", G2
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
25
468546R11
CLEVIS
ASSY, hitch
1шт.
608595R1
NUT
5/8-11 hex. lock
1шт.
413-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
SCREW, 5/8-11 x 3-3/4 hex-hd cap
1шт.
26
468548R1
BUSHING
hitch clevis
1шт.
425-1014
NUT,7/8"-9, G5
NUT, 7/8"-9, G5
2шт.
21229R1
SCREW, 7/8-9 x 5-3/4 C-Z hex-hd cap
2шт.
131047
WASHER,7/8"
7/8"
1шт.
27
21150R1
HEADED PIN,12.7mm OD x 57.15mm L
PIN, 1/2 x 2-1/4 C-Z std-hd
1шт.
18481R1
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
1шт.
607895R1
WASHER
17/32 x 1 x 11 ga C-Z
1шт.
28
21150R1
HEADED PIN,12.7mm OD x 57.15mm L
PIN, 1/2 x 2-1/4 C-Z std-hd
1шт.
Выбрано товаров: 73
