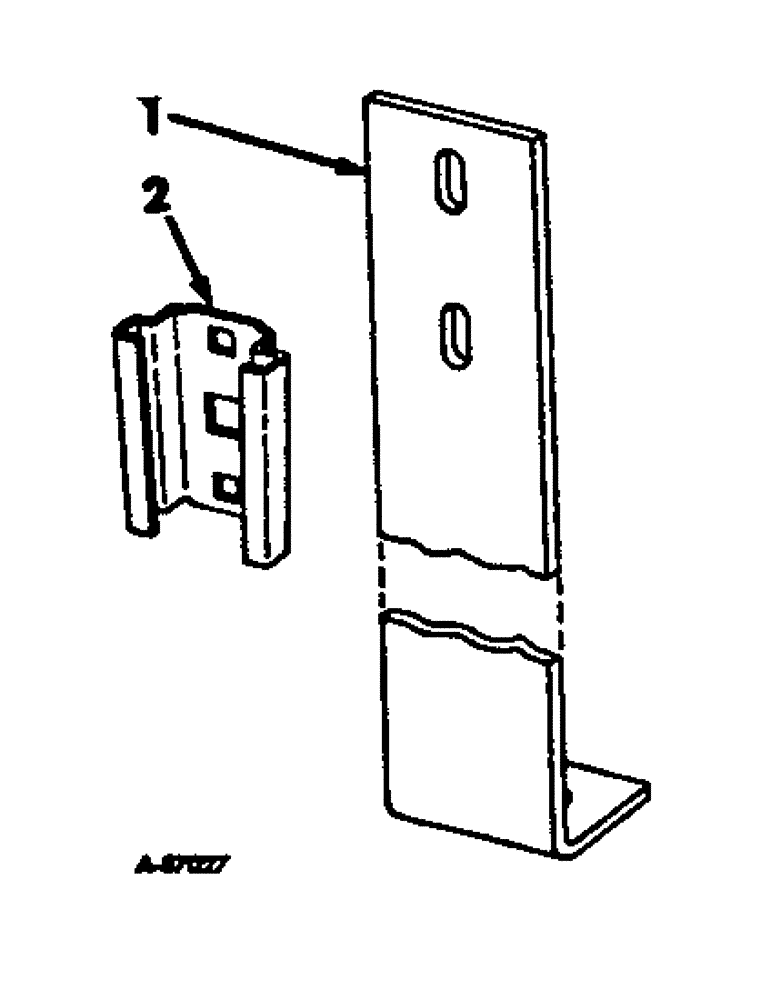

Запчасти Case IH 470 (P-29[B]) - PRODUCT GRAPHICS

652519R2

BRACKET, tail light

1шт.

624341R11

SOCKET

lamp bracket

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

521996R3

SUPPORT

BRACKET, tail light

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8-11 x 2-1/4 C-Z sq-nk crg

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex. lock

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

2

398976R1

BRACKET

SOCKET, safety lamp bracket, will work for 363919R1

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

547494R91

DECAL

PRODUCT GRAPHIC PKG., consists of six IH trademarks

1шт.

547495R91

DECAL

PRODUCT GRAPHIC PKG., consists of eight International trademarks

1шт.

547497R91

PACKAGE

PRODUCT GRAPHIC PKG., consists of eight model designation decals

1шт.
