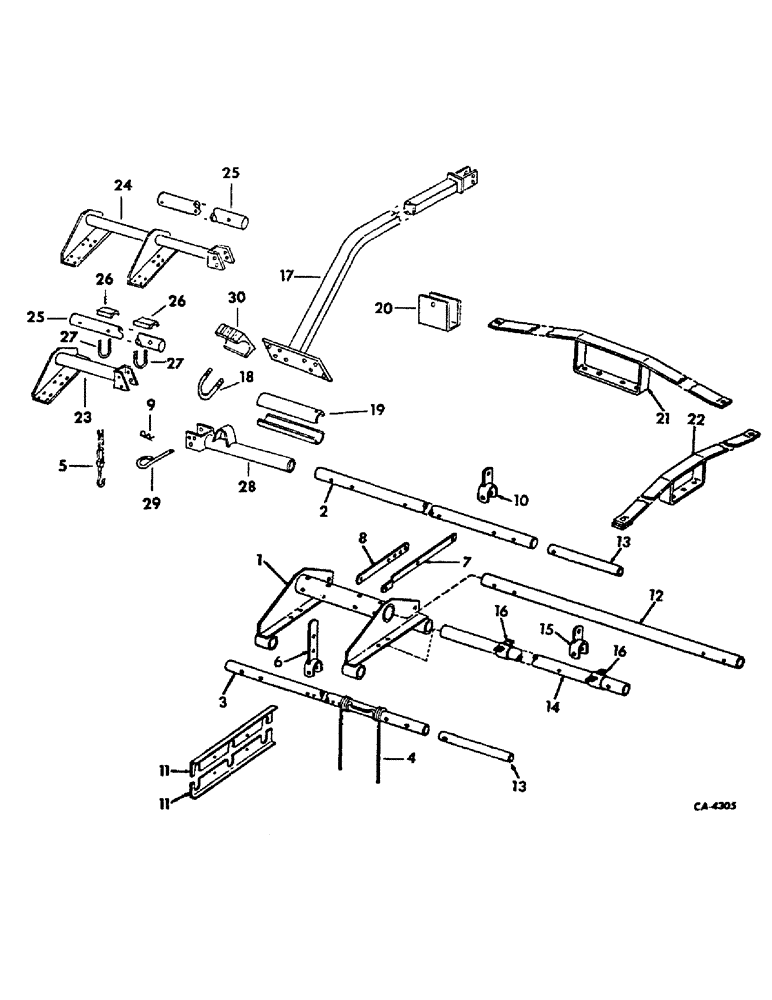

Запчасти Case IH 470 (P-25) - MULCHER ATTACHMENT, MACHINES BUILT AFTER 1971, HEAVY DUTY

1

485615R2

FRAME

ASSY, 4 ft., 9 in., used w/units M, P, U and V

1шт.

1

485616R2

FRAME

ASSY, 3 ft., 9 in., 1 used w/units M, P, U, V, AB and AC, 2 used w/units N, Q, R, S, T, and W

1шт.

1

490549R1

FRAME

ASSY, 7 ft., 3 in., 1 used w/units AB and AC, 2 used w/unit AA

1шт.

2

485596R1

TUBE

BAR, 1st tooth, 1 per frame assy, 485615R2

1шт.

2

485594R1

BAR

1st tooth, 1 per frame assy, 485616R2

1шт.

2

490550R1

TUBE

BAR, 1st tooth, 1 per frame assy, 490547R1

1шт.

3

485597R1

TUBE

BAR, 3rd tooth, 1 per frame assy, 485615R2

1шт.

3

485600R1

TUBE

BAR, 3rd tooth, 1 per frame assy, 485616R2

1шт.

3

490551R1

TUBE

BAR, 3rd tooth, 1 per frame assy, 490549R1

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), , 2 per bar 1/4" x 2 3/4"

1шт.

4

485613R1

TOOTH

1шт.

487082R1

BOLT,Hex, 3/8" - 16 x 2 3/4"

shoulder

2шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cdp hex. lock

2шт.

5

547857R1

CHAIN (AG)

CHAIN, wing, 1 per frame

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 znp hex-hd mach

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

385525R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 cdp hex. lock

1шт.

6

485592R1

ARM

HANDLE ASSY, 1 per frame assy

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 cdp hex.

2шт.

180159

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap

2шт.

7

485593R1

SUPPORT

REACH, handle, 1 per frame assy

1шт.

8

485594R1

BAR

REACH, adjusting, 1 per frame assy

1шт.

21658R1

HEADED PIN,7/16" x 1"

PIN, 7/16 x 1 zn-pltd std-hd

4шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

3шт.

480523R1

HAIR PIN COTTER

quick attachable

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

3шт.

9

480523R1

HAIR PIN COTTER

PIN, hinge pin cot., 1 per hinge

1шт.

10

485601R1

ARM

POST ASSY

1шт.

11

485598R1

SUPPORT

RAIL, center, 2 per frame assy

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

548393R1

TUBE

spanner

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cdp hex.

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2 x 3-1/4 C-Z hex-hd cap

2шт.

13

487726R1

TUBE

CONNECTOR, tooth bar

1шт.

14

485604R1

TUBE

BAR, 2nd tooth, 1 per frame assy, 485615R2

1шт.

14

485605R1

TUBE

BAR, 2nd tooth, 1 per frame assy, 485616R2

1шт.

14

490552R1

TUBE

BAR, 2nd tooth, 1 per frame assy, 490549R1

1шт.

137313

PIN,1/4" x 2 3/4"

Split (Cotter), , 3 per bar 1/4" x 2 3/4"

1шт.

15

485601R1

ARM

POST ASSY, center, 1 per bar, 2nd tooth

1шт.

Q3542

HEADED PIN,11.1mm OD x 38.1mm L

PIN, 7/16 x 1-1/2 C-Z std-hd

1шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

1шт.

473213R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 cdp hex.

1шт.

NLS

NO LONGER SERVICED

SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap

1шт.

16

485603R1

BUSHING

ASSY, center bar, 2 per bar, 2nd tooth

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

17

546208R1

ARM ASSY, carrier

2шт.

18

490688R1

BOLT,1/2" - 13 x 4 1/2"

U-BOLT, tail plate clamp

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

19

487778R1

SHIM, tube

4шт.

20

546211R1

CLEVIS

2шт.

18787R1

BOLT,Hex, 3/8"-16 x 4", G2

3/8 x 4 znd hex-hd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

21

488262R1

TRUSS ASSY, front, used w/units P, R, S, U, V, W, AA, AB and AC

1шт.

22

488263R1

TRUSS ASSY, used w/units P, R, S, U, V, W, AA, AB and AC

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

2шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

2шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 C-Z hex-hd cap

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

23

547847R1

FRAME

LH wing, used w/units M, N, Q, T and AA

1шт.

23

547848R1

FRAME

RH wing, used w/units M, N, Q, T and AA

1шт.

24

547849R1

FRAME

LH wing, used w/units P, R, S, U, V, W, AB and AC

1шт.

24

547850R1

FRAEM, RH wing, used w/units P, R, S, U, V, W, AB and AC

1шт.

25

547851R1

BAR

tooth, 4 used w/units M, N, Q, T and AA, 6 used w/units M, N, Q, T and AA with center tooth

1шт.

25

547852R1

TUBE

BAR, tooth, 4 used w/units P, R, S, U, V, W, AB and AC, 6 used w/units P, R, S, U, V, W, AB and AC with center tooth

1шт.

26

547853R1

CLAMP

1шт.

27

547854R1

BOLT,3/8" - 16 x 2 3/4"

U-BOLT, 2 per clamp

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

28

547855R1

HINGE

center, 1 per frame

1шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW, 1/2-13 x 5 znd hex-hd cap

1шт.

22448R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

SCREW, 1/2-13 x 3-1/2 znd hex-hd cap

2шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 cdp hex. lock

3шт.

29

547856R1

PIN

hinge, 1 per frame

1шт.

30

490687R1

CLAMP

tail plate

4шт.
