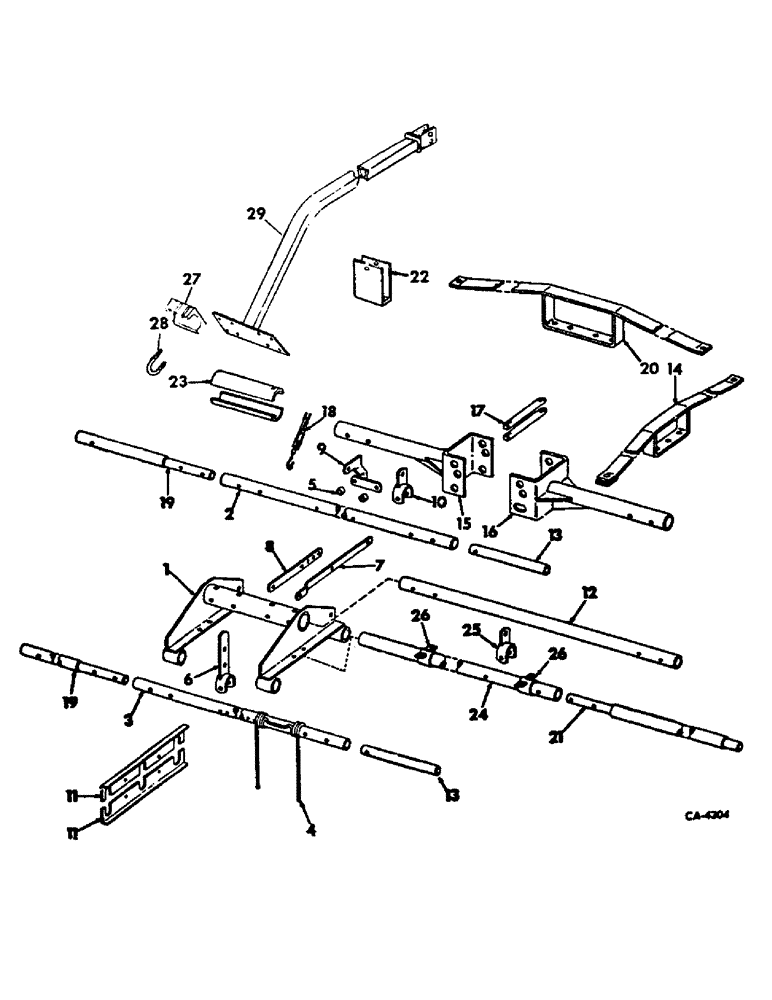

Запчасти Case IH 470 (P-22) - MULCHER ATTACHMENT, MACHINES BUILT AFTER 1971
№
Артикул
Название
Примечание
Количество
1
485614R2
FRAME
ASSY, 1 ft., 3 in., 2 used w/units N, P, Q, T, U, V and AA
1шт.
1
485615R2
FRAME
ASSY, 4 ft., 9 in., 1 used w/units M, P, U and V, 2 used w/units N, Q, T, AB and AC, 4 used w/units R, S and W
1шт.
1
485616R2
FRAME
ASSY, 3 ft., 9 in., 1 used w/units C, P, U, V, and AA, 2 used w/units A, B, AB and AC
1шт.
1
490549R1
FRAME
ASSY, 7 ft., 3 in., 1 used w/units C and AA, 2 used w/units D thru L, X and Y
1шт.
2
485589R1
TUBE
BAR, 1st tooth, 1 per frame assy, 485614R2
1шт.
2
485596R1
TUBE
BAR, 1st tooth, 1 per frame assy, 485615R1
1шт.
2
485599R1
TUBE
BAR, 1st tooth, 1 per frame assy, 485616R2
1шт.
2
490550R1
TUBE
BAR, 1st tooth, 1 per frame assy, 490549R1
1шт.
3
485590R1
TUBE
BAR, 3rd tooth, 1 per frame assy, 485614R2
1шт.
3
485597R1
TUBE
BAR, 3rd tooth, 1 per frame assy, 485615R1
1шт.
3
485600R1
TUBE
BAR, 3rd tooth, 1 per frame assy, 490549R1
1шт.
3
490551R1
TUBE
BAR, 3rd tooth, 1 per frame assy, 490549R1
1шт.
4
485613R1
TOOTH
1шт.
487082R1
BOLT,Hex, 3/8" - 16 x 2 3/4"
shoulder
2шт.
385525R1
LOCK NUT,3/8"-16, GB
NUT, 3/8-16 cdp hex. lock
2шт.
5
485591R1
SPACER
BUSHING, tooth, 1 per frame assy, 485614R2
1шт.
180138
BOLT,Hex, 3/8" - 16 x 3", Gr 5
SCREW, 3/8-16 x 3 C-Z hex-hd cap
1шт.
6
485592R1
ARM
HANDLE ASSY, 1 per frame assy
1шт.
473213R1
LOCK NUT,7/16"-14, GB
NUT, 7/16-14 cdp hex.
1шт.
180159
BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5
SCREW, 7/16-14 x 2-3/4 C-z hex-hd cap
1шт.
7
485593R1
SUPPORT
REACH, handle, 1 per frame assy
1шт.
8
485594R1
BAR
REACH, adjusting, 1 per frame assy
1шт.
21658R1
HEADED PIN,7/16" x 1"
PIN, 7/16 x 1 zn-plted std-hd
4шт.
120169
COTTER PIN,5/32" x 1"
PIN, SPLIT (COTTER), 5/32" x 1"
3шт.
480523R1
HAIR PIN COTTER
quick attachable
1шт.
607891R1
WASHER
15/32 x 1 x 16 ga C-Z
3шт.
9
485595R1
SUPPORT
POST ASSY, front, 1 per frame assy, 485914R2
1шт.
10
485601R1
ARM
POST ASSY, 1 per frame assy
1шт.
11
485598R1
SUPPORT
RAIL, center, 2 per frame assy
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
12
487725R1
TUBE, spanner, used w/units M thru V, AA, AB and AC
1шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 cdp hex.
4шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
SCREW, 1/2 x 3-1/4 C-Z hex-hd cap
4шт.
12
487730R1
TUBE, spanner, used w/units G, H and J
1шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 cdp hex.
4шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
SCREW, 1/2 x 3-1/4 C-Z hex-hd cap
4шт.
12
548393R1
TUBE
spanner, used w/units A thru F, K, L, X and Y
1шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 cdp hex.
2шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
SCREW, 1/2 x 3-1/4 C-Z hex-hd cap
2шт.
13
487726R1
TUBE
CONNECTOR, tooth bar, used w/spanner tube, 487725R1 and 548393R1
2шт.
13
487731R1
CONNECTOR, tooth bar, used w/spanner tube 487730R1
2шт.
14
488263R1
TRUSS ASSY, used w/units P, R, S, U, V, W, AA, AN and AC
2шт.
271725
SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5
SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap
2шт.
87403
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
2шт.
413-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
Hex, 3/4"-10 x 2-1/2", G5
2шт.
271783
CAGE,Hex, 3/4" - 10 x 5", Gr 5
SCREW, 3/4-10 x 5 C-Z hex-hd cap
4шт.
280954
NUT,3/4"-10, G5
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
15
487732R1
HINGE ASSY, outer hinge, used w/units M thru W, AA, AB and AC
2шт.
15
487729R1
HINGE ASSY, outer hinge, used w/units A thru F, K, L, X and Y
2шт.
16
487733R1
HINGE ASSY, inner hinge, used w/units M thru W, AA, AB and AC
2шт.
274141
HINGE
3/4-10 hex. type
2шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 cdp hex.
8шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
SCREW, 1/2-13 x 3-1/4 C-Z hex-hd cap
1шт.
16
487727R1
SUPPORT
HINGE ASSY, inner hinge, used w/units A thru F, K, L, X and Y
2шт.
25529R1
NUT,3/4"-10, G8
3/4-10 hex. type 8
1шт.
474848R1
LOCK NUT,1/2"-13, GB
NUT, 1/2-13 cdp hex.
4шт.
180191
BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5
SCREW, 1/2-13 x 3-1/4 C-Z hex-hd cap
4шт.
17
487728R1
PIN, hinge, 2 used w/units A thru F, K, L, X and Y, 4 used w/units M thru W, AA, AB and AC
1шт.
19471R1
PIN, SPLIT (COTTER),1/4" x 1 3/4"
2шт.
373025R1
PIN, quick attachable cot.
2шт.
668752R1
WASHER
29/32 x 1-1/4 x 16 ga C-Z
2шт.
18
487734R1
NUT
CHAIN W/SPRING, snap swivel, used w/units M thru W, AA, AB and AC
1шт.
473213R1
LOCK NUT,7/16"-14, GB
NUT, 7/16-14 C-Z hex. lock
2шт.
18803R1
BOLT,7/16" x 3 1/2", Gr 1
7/16-14 x 3-1/2 znd hex-hd cap
2шт.
607891R1
WASHER
15/32 x 1 x 16 ga C-Z
4шт.
19
48777R1
BAR ASSY, tooth extension, 4 used w/units K and L, 6 used w/units K and L w/center tooth bar
1шт.
20
488262R1
TRUSS ASSY, front, used w/units P, R, S, U, V, W, AA, AB and AC
1шт.
21
487731R1
CONNECTOR, tooth bar, used w/units G, H and J
1шт.
22
546211R1
CLEVIS
2шт.
18787R1
BOLT,Hex, 3/8"-16 x 4", G2
3/8 x 1 znd hex-hd
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
23
487778R1
SHIM, tube
4шт.
24
485602R1
TUBE
BAR, znd tooth, 1 per frame assy, 485614R2
1шт.
24
485604R1
TUBE
BAR, 2nd tooth, 1 per frame assy, 485615R1
1шт.
24
485605R1
TUBE
BAR, 2nd tooth, 1 per frame assy, 485616R2
1шт.
24
490552R1
TUBE
BAR, 2nd tooth, 1 per frame assy, 490549R1
1шт.
25
485601R1
ARM
POST ASSY, center bar, 1 per bar 2nd tooth
1шт.
Q3542
HEADED PIN,11.1mm OD x 38.1mm L
PIN, 7/16 x 1-1/2 C-Z std-hd
1шт.
120169
COTTER PIN,5/32" x 1"
PIN, SPLIT (COTTER), 5/32" x 1"
1шт.
473213R1
LOCK NUT,7/16"-14, GB
NUT, 7/16-14 cdp hex.
1шт.
NLS
NO LONGER SERVICED
SCREW, 7/16-14 x 2-3/4 C-Z hex-hd cap
1шт.
26
485603R1
BUSHING
ASSY, center bar, 2 per bar, 2nd tooth
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 C-Z hex-hd mach
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
27
490687R1
CLAMP
tail plate
4шт.
28
490688R1
BOLT,1/2" - 13 x 4 1/2"
U-BOLT, tail plate clamp
8шт.
120384
WASHER,1/2"
LOCK, 1/2"
16шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
16шт.
29
546208R1
ARM ASSY, carrier
2шт.
Выбрано товаров: 102
