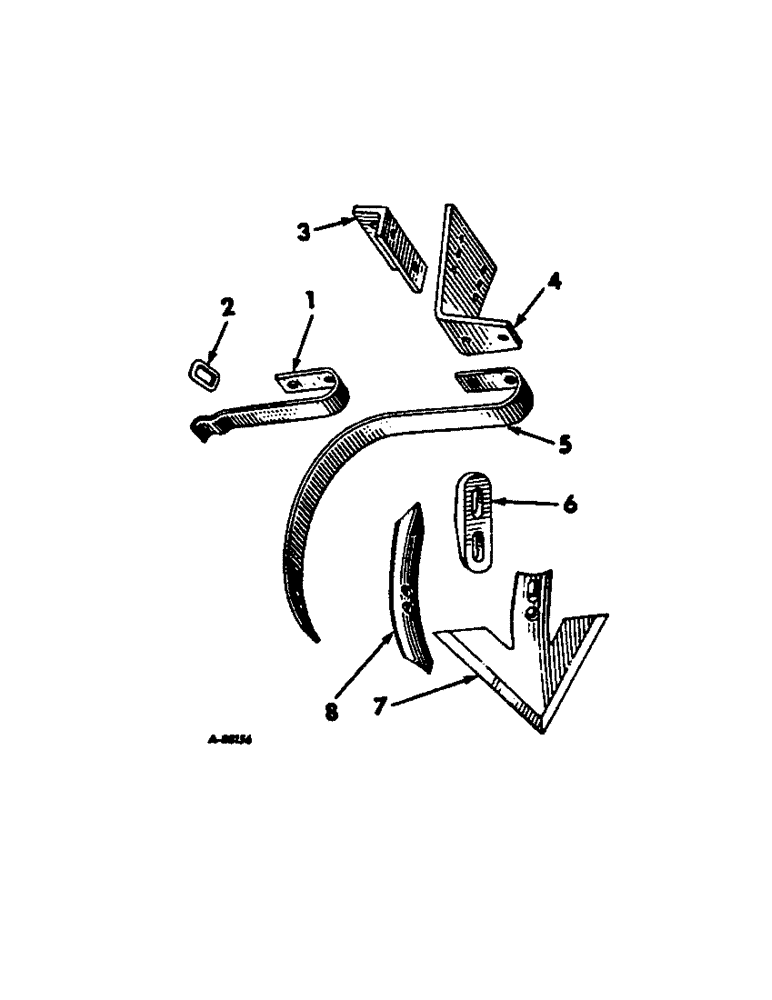

Запчасти Case IH 470 (P-18) - CENTER TOOTH ATTACHMENT, HEAVY DUTY

1

14032

REINFORCEMENT

center tooth

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

180151

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

SCREW, 7/16-14 x 1-3/4 C-Z hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

P4163

LINK

KEEPER, reinforcement

1шт.

3

(Not used in this application)

1шт.

4

468627R1

BRACKET

center tooth

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8-11 x 2 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

PA24783

SPRING

TOOTH, center tooth

1шт.

6

466868R1

WEDGE

sweep adjusting

1шт.

7

479005R2

SWEEP

6 in. universal, will work for 519043R1

1шт.

25548BA

BOLT, 7/16-14 x 1-1/2 C-Z ov-hd plow

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16-14 x 1-1/2 C-Z crg

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

2шт.

8

5886

POINT

spring tooth double

1шт.

21195R1

BOLT

3/8-16 x 1-1/8 C-Z plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
