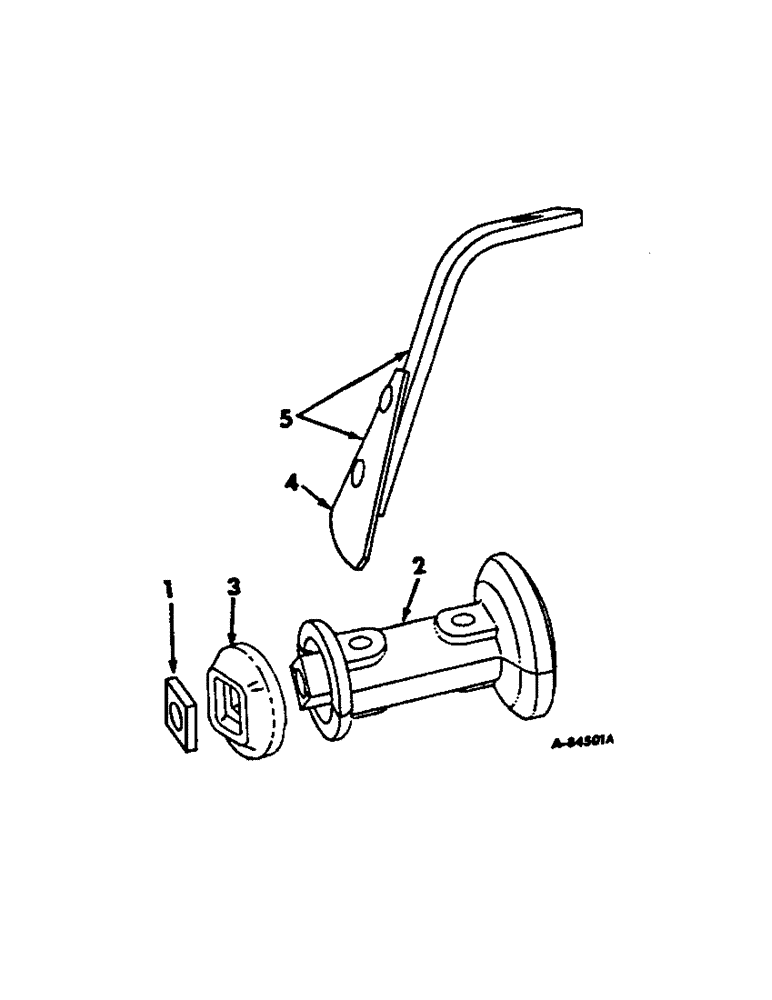

Запчасти Case IH 470 (P-17) - FURROW FILLER & FURROW FILLER DISK SCRAPER

1

466986R1

BLOCK

SPACER, arbor bolt head washer

2шт.

2

482970R2

SPOOL

furrow filler

4шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2-13 x 3-1/4 C-Z hex-hd mach

4шт.

18840R1

BOLT

3/4-10 x 2-3/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

3

P4165A

WASHER

arbor bolt head

2шт.

4

543999R1

BLADE

scraper, note, will work for 465062R1

1шт.

540464R1

BOLT,1/2" - 13 x 1.25", Cl 2

disk scraper

2шт.

4

483096R1

STRAP

BLADE, scraper, note

1шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 C-Z sq-nk crg, scrapers to scraper bar

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd, 2 per scraper assy

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

465060R93

SCRAPER

ASSY, LH

1шт.

5

540458R91

BLADE

SCRAPER ASSY, LH, note

1шт.

5

465061R93

BLADE

SCRAPER ASSY, RH

1шт.

5

540459R91

BLADE

SCRAPER ASSY, RH, note

1шт.
