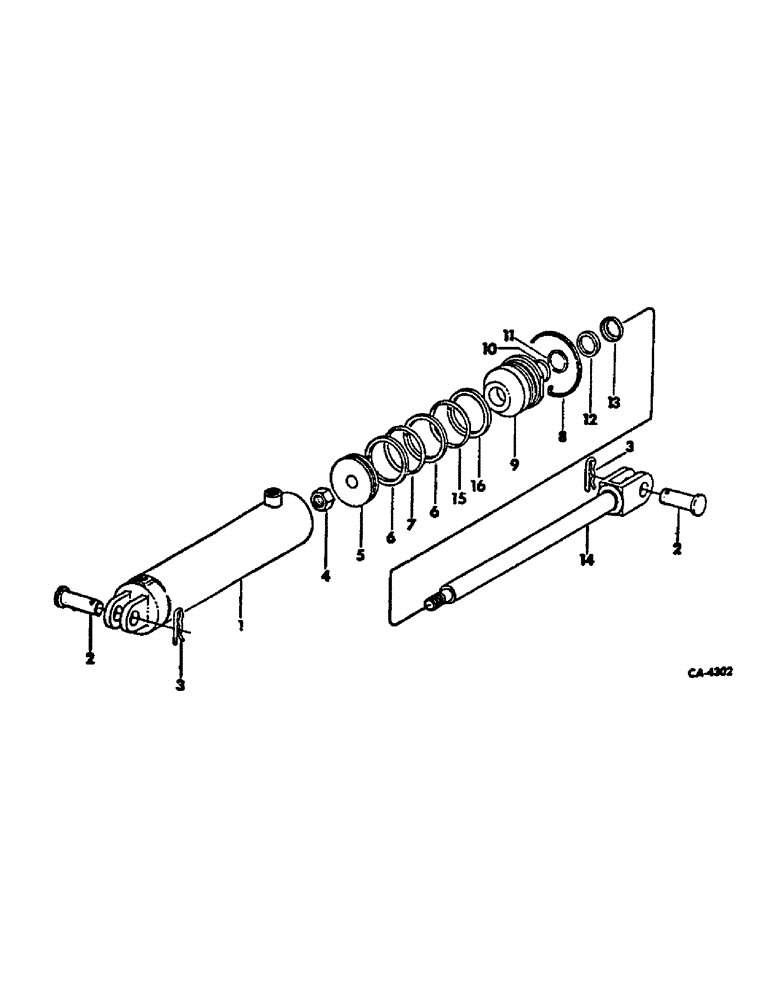

Запчасти Case IH 470 (P-16) - HYDRAULIC CYLINDER

61105C91

CYLINDER

ASSY, hydraulic

1шт.

1

61072C1

BODY

ASSY

1шт.

2

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN, cylinder pivot

2шт.

3

520175R1

CLIP

PIN, quick attachable cotter

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 lock

1шт.

5

547724R1

PISTON

1шт.

6

375936R1

BACK-UP RING

WASHER, back-up

2шт.

7

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16, piston seal

1шт.

8

405002R1

RING

RETAINER, front head

1шт.

9

60806C1

HEAD

front

1шт.

10

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1-1/4 x 1-1/2 x 1/8, piston seal

1шт.

11

546279R1

WASHER

back-up

1шт.

12

386421R1

WASHER

wiper felt

1шт.

13

386423R1

WASHER,33.27mm ID x 41.38mm OD x 0.76mm Thk

retainer

1шт.

14

547719R1

ROD

ASSY, piston

1шт.

15

343940R1

O-RING,3.234" ID x 0.139" Width

3-1/4 x 3-1/2 x 1/8, front head

1шт.

16

404015R1

BACK-UP RING

WASHER, back-up

1шт.

547725R91

SEAL KIT

1шт.

PACKAGE, o-ring service, consists of (1) washer 386421R1, (1) washer 386423R1, (1) washer 404015R1, (1) o-ring 343940R1, (1) o-ring 386422R1, (1) washer 546279R1, (1) washere 546279R1, (2) washer 375936R1, (1) o-ring 378827R1, (1) retainer 405002R1, (1) nut 9413974

1шт.

2751852R1

PRODUCT GRAPHIC, International, hydraulic cylinder label

1шт.
