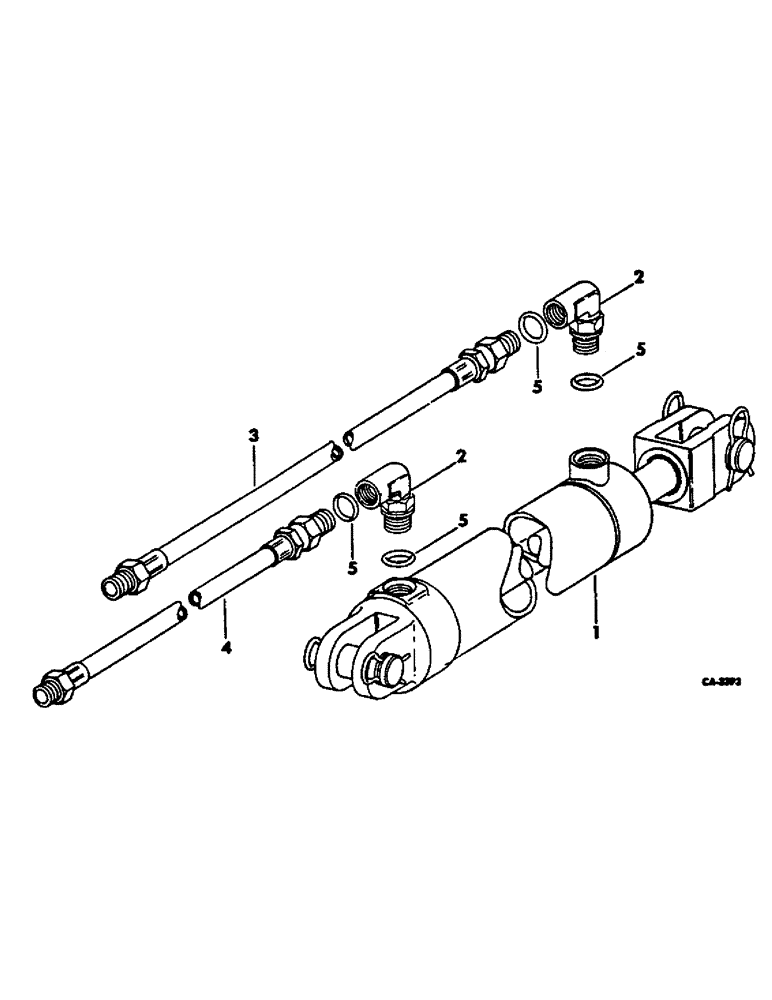

Запчасти Case IH 470 (P-14) - HYDRAULIC CYLINDER AND CONNECTIONS, FROM 1973 AND SINCE

1

61105C91

CYLINDER

hyd 3-1/2 x 8 in., for folding & non-folding harrows up to and including 16 ft sizes, for components see list of parts under details of hydraulic cylinder

1шт.

1

548003R92

CYLINDER BLOCK

CYLINDER, hyd 4 x 8, for 17 ft and larger size folding harrows, for components see list of parts under details of hydraulic cylinder

1шт.

2

371357R91

ELBOW

7/8-14 adjustable

2шт.

3

372737R91

SPRING

HOSE ASSY, hyd, 112 in.

1шт.

4

475228R91

HOSE

ASSY, hyd, 120 in.

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.
