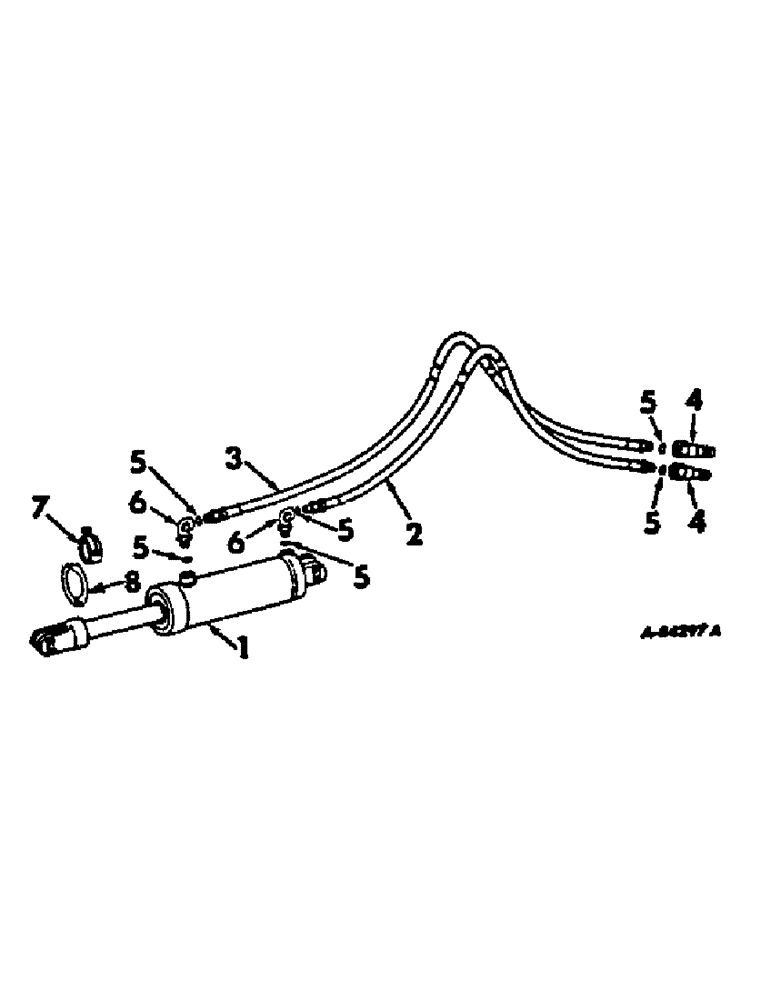

Запчасти Case IH 470 (P-13) - HYDRAULIC CYLINDER AND CONNECTIONS, FROM 1965 TO 1973

1

371292R95

CYLINDER

3-1/2 x 8 hyd, order cylinder 403842R92

1шт.

1

403842R94

CYLINDER

hyd 3-1/2 x 8 in., refer to cyl, 1 for components, for folding & non folding harrow up to and including 16 ft sizes

1шт.

1

388688R96

CYLINDER

4 x 8 hyd, refer to cyl, 1 for components, for 17 ft. & larger size folding harrows

1шт.

1

1343711C1R

REMAN-HYD CYLINDER

470 INTERNATIONAL HARVESTER DISK HARROW, 4 x 8 hyd, Reman for New PN 388688R96

1шт.

1

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

2

372437R91

HOSE

ASSY, hyd, 112 in., for cyl. 388688R94, 2 for cyl. 371292R94, 2 for cyl, 403842R92

1шт.

3

475228R91

HOSE

ASSY, hyd, 120 in. for cyl. 388688R94

1шт.

4

388990R91

COUPLING

order coupling 395149R1

1шт.

4

395149R1

QUICK MALE COUPLING

COUPLING

2шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, 4 for cyl. 371292R94, 4 for cyl. 403842R92, 6 for cyl. 388688R94

1шт.

6

371357R91

ELBOW

7/8-14 adjusting, for cyl. 388688R94

2шт.

7

479849R91

PACKAGE

STOP ASSY, 1/2 in.

1шт.

7

643259R91

STOP

ASSY, 3/4 in.

1шт.

7

479850R91

PACKAGE

STOP ASSY, 1 in.

1шт.

7

643260R91

PACKAGE

STOP ASSY, 1-1/2 in., for cyl. 388388R94

1шт.

8

Q3498

WASHER

2-3/4 x 1-3/4 x 1/8

4шт.

479853R91

PACKAGE

hydraulic cylinder stop, for cyl. 388688R94, consists of (1) stop 479849R91, (1) stop 643259R91, (1) stop 479850R91, (1) stop 643260R91

1шт.
