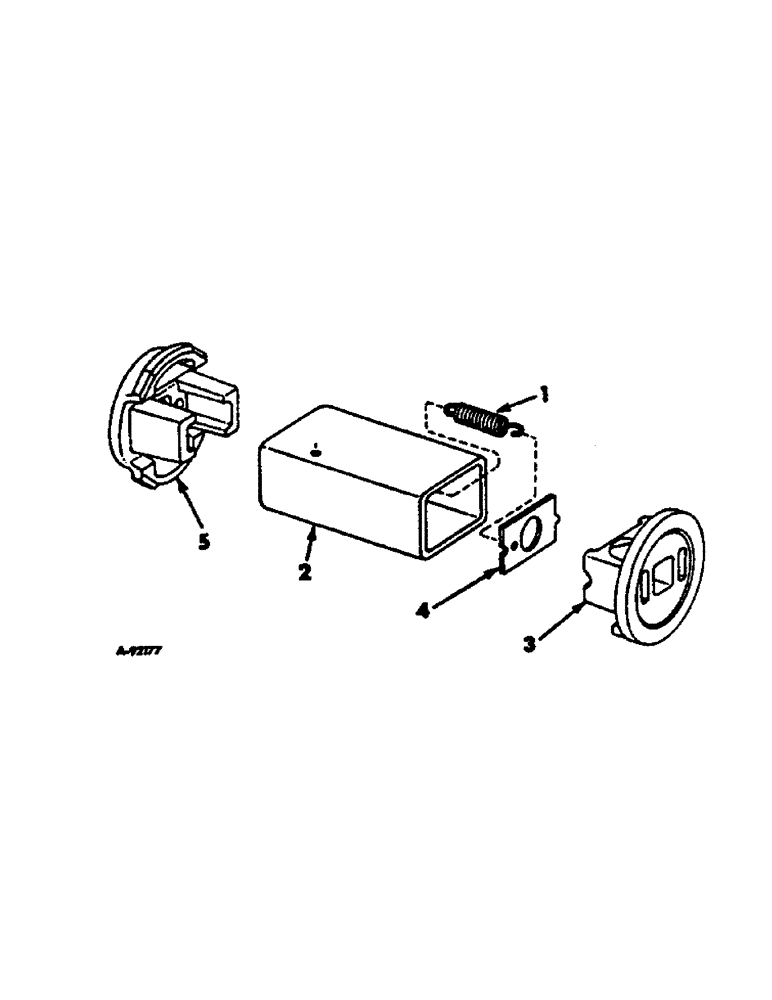

Запчасти Case IH 470 (P-11) - GANG DRIVER, UNITS M THORUGH W, AA, AB AND AC

1

489291R1

SPRING

pipe reataining

2шт.

180050

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

SCREW, 1/4-20 x 2-3/4 C-Z hex-hd cap

2шт.

975565R1

NUT, 1/4-20 C-Z lock

2шт.

2

489294R1

TUBE

PIPE, drive, used on units with 7-1/2 in. spacing

2шт.

2

489293R1

TUBE

PIPE, driver, used on units with 9 in. spacing

2шт.

3

489295R1

WASHER

nut

2шт.

4

489292R1

SUPPORT ASSY.

STRIP, arbor bolt

2шт.

131049

HYD CONNECTOR

1-1/8 C-Z med lock

2шт.

220094

NUT,1 1/8"-7, G5

1-1/8 C-Z hex.

2шт.

5

489296R1

WASHER

head

2шт.

U5348

PIN

1/4 x 1-1/2

2шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga C-Z

2шт.
