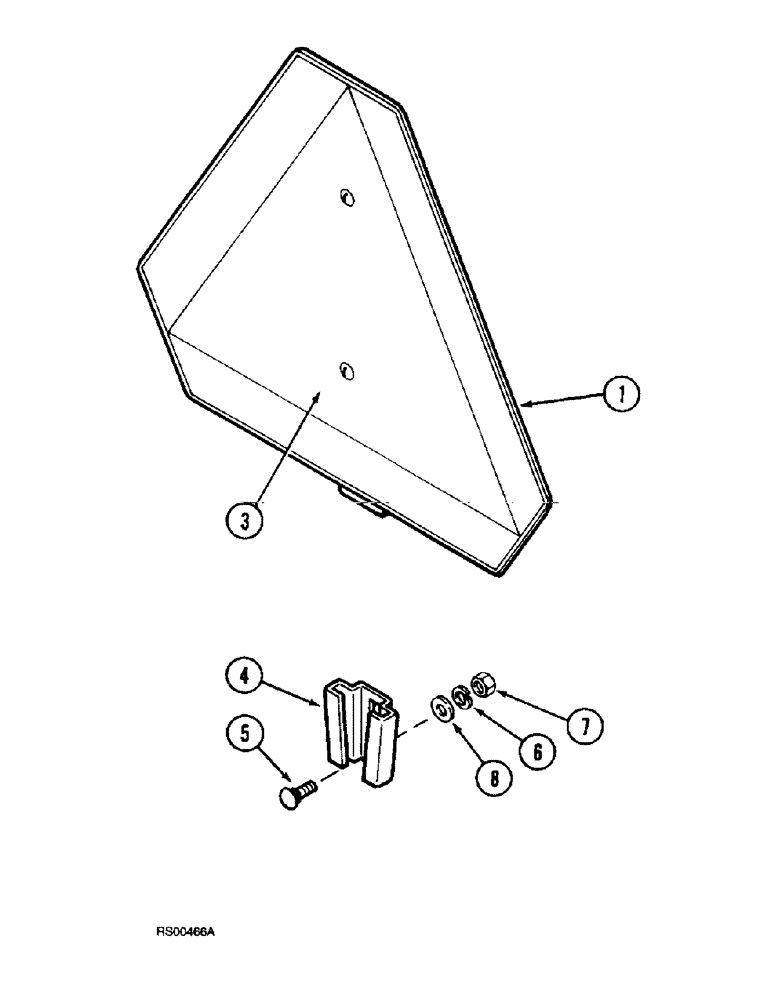

Запчасти Case IH 3850 (90.108.04.01) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

1

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle

1шт.

3

REF

INSTRUCTION

DECAL - SMV emblem (See Figure 9-34)

1шт.

4

A59457

BRACKET

- mounting

1шт.

5

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

2шт.

6

492-11031

LOCK WASHER,5/16"

2шт.

7

425-105

NUT,5/16"-18, G5

2шт.

8

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

2шт.
