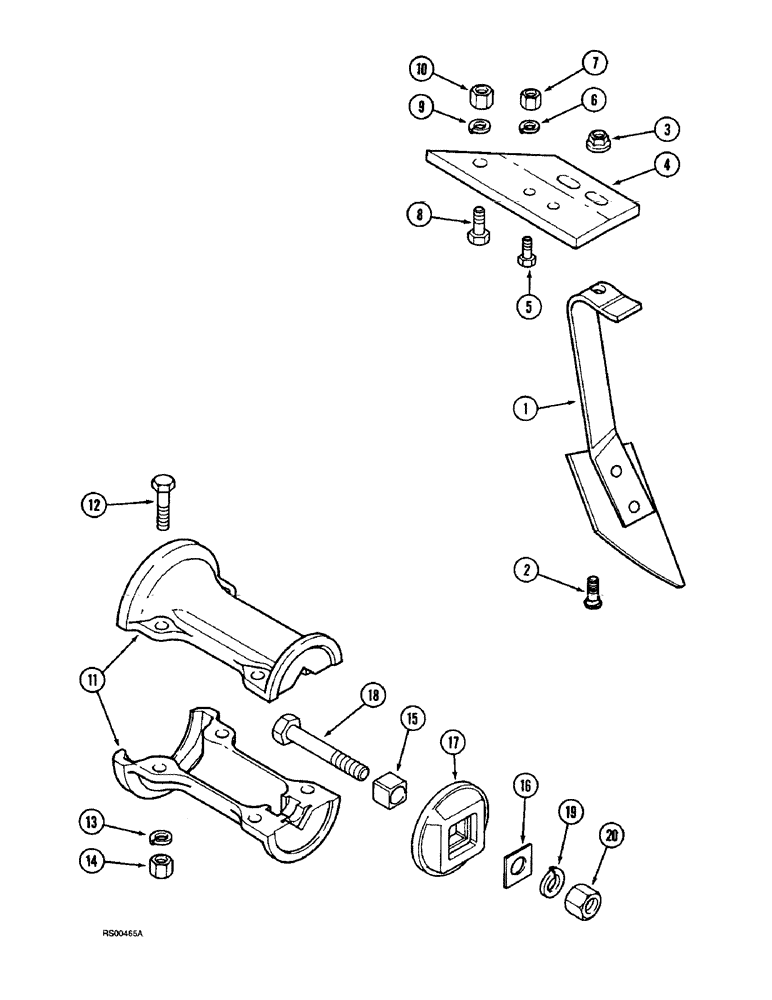

Запчасти Case IH 3850 (75.200.11) - FURROW FILLER ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

SCRAPER ASSEMBLY - disc (See Figure 9-26)

2шт.

2

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special

2шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

4

139710C1

SUPPORT

BRACKET - scraper, right-hand (Shown)

1шт.

4

139709C1

SUPPORT

BRACKET - scraper, left-hand

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

2шт.

8

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

9

492-11062

BEARING WASHER,5/8"

2шт.

10

425-1010

NUT,5/8"-11, G5

2шт.

11

129797C1

HUB

SPOOL - furrow filler, 9-1/4 inch long

4шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

14

425-108

NUT,1/2" - 13, Gr 5

8шт.

15

100694C1

PLATE,SMALL SQUARE

BLOCK - driver

2шт.

16

100695C1

SPACER

Arbor bolt head washer

2шт.

17

596769R1

SQ HOLE WASHER

WASHER - arbor bolt head

2шт.

18

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

2шт.

19

492-11088

LOCK WASHER,7/8"

2шт.

20

425-1014

NUT,7/8"-9, G5

2шт.
