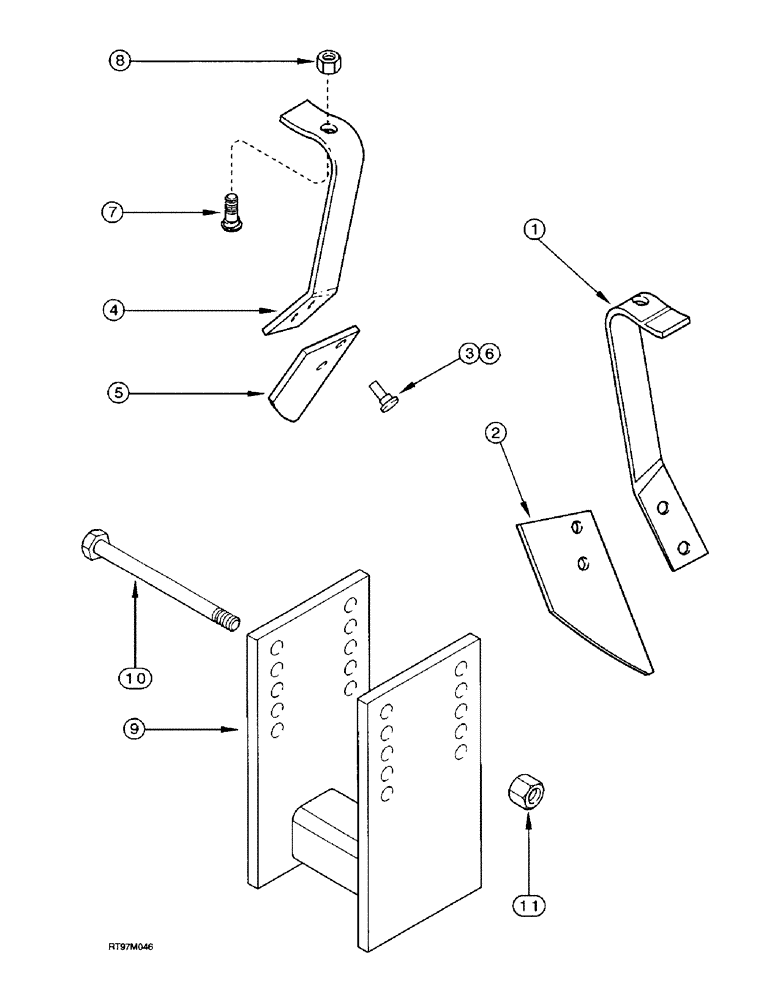

Запчасти Case IH 3850 (75.200.09) - DISC SCRAPER (09) - CHASSIS/ATTACHMENTS

121120C92

SCRAPER

ASSEMBLY - disk, right-hand

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - scraper

1шт.

2

121118C1

BLADE

- scraper

1шт.

3

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

121119C92

SCRAPER

ASSEMBLY - disk, left-hand

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - scraper

1шт.

5

121118C1

BLADE

- scraper

1шт.

6

121233C1

RIVET,20mm OD x 29mm L

RIVET - blade retaining

2шт.

7

121258C1

BOLT,Spcl, Hex, 1/2" - 13 x 1.3", Type 5

BOLT - special

2шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

9

96005C2

MOUNTING PARTS

SUPPORT - center tooth, mounting

1шт.

10

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Center tooth mounting

4шт.

11

86992215

LOCK NUT,1/2"-13, GC

NUT, LOCK, , Hex, Center tooth mounting 1/2"-13, GC

4шт.
