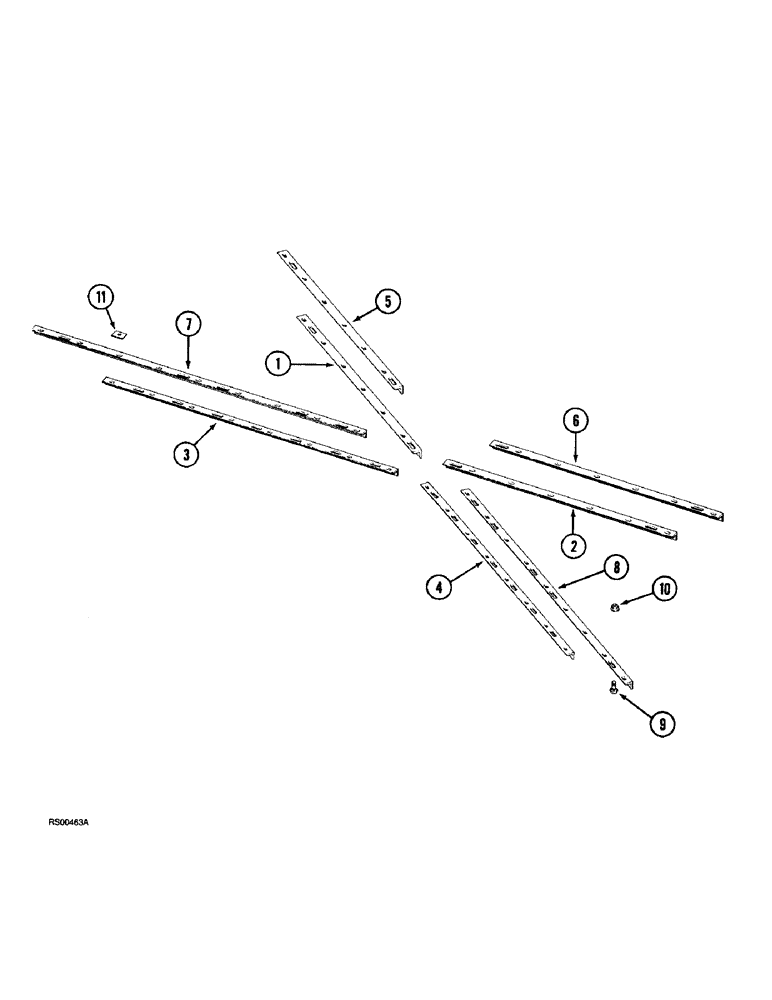

Запчасти Case IH 3850 (75.200.08) - SCRAPER SUPPORTS, FOLDING HARROW, 9 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

121131C1

ANGLE

SUPPORT - scraper, 66-7/16 inch long, left front (Codes C, D, G, H, K, L)

1шт.

2

121130C1

ANGLE

SUPPORT - scraper, 66-7/16 inch long, right front (Codes C, D, G, H, K, L)

1шт.

3

121134C2

ANGLE

SUPPORT - scraper, 61-1/4 inch long, left rear (Codes C, D, G, H, K, L)

1шт.

4

121135C2

ANGLE

SUPPORT - scraper, 61-1/4 inch long, right rear(Codes C, D, G, H, K, L)

1шт.

5

121133C1

ANGLE

SUPPORT - scraper, 25-1/4 inch long, left front (Codes C, D)

1шт.

5

121125C1

ANGLE

SUPPORT - scraper, 34-1/4 inch long, left front (Codes G, H)

1шт.

5

129789C2

ANGLE

SUPPORT - scraper, 48-13/16 inch long, left front (Codes K, L)

1шт.

6

121132C1

ANGLE

SUPPORT - scraper, 25-1/4 inch long, right front (Codes C, D

1шт.

6

121124C1

ANGLE

SUPPORT - scraper, 34-1/4 inch long, right front (Codes G, H)

1шт.

6

129788C2

ANGLE

SUPPORT - scraper, 43-13/16 inch long, right front (Codes K, L)

1шт.

7

1986259C1

ANGLE

SUPPORT - scraper, 39-3/8 inch long, left rear (Codes C, D)

1шт.

7

121163C2

ANGLE

SUPPORT - scraper, 48-7/16 inch long, left rear (Codes G, H)

1шт.

7

121165C3

ANGLE

SUPPORT - scraper, 57-3/8 inch long, left rear (Codes K, L)

1шт.

8

1986260C1

ANGLE

SUPPORT - scraper, 39-3/8 inch long, right rear (Codes C, D)

1шт.

8

121164C2

ANGLE

SUPPORT - scraper, 48-7/16 inch long, right rear (Codes G, H)

1шт.

8

121166C3

ANGLE

SUPPORT - scraper, 57-3/8 inch long, right rear (Codes K, L)

1шт.

9

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

16шт.

10

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8

16шт.

11

136222A1

SHIM

- scraper support

1шт.
