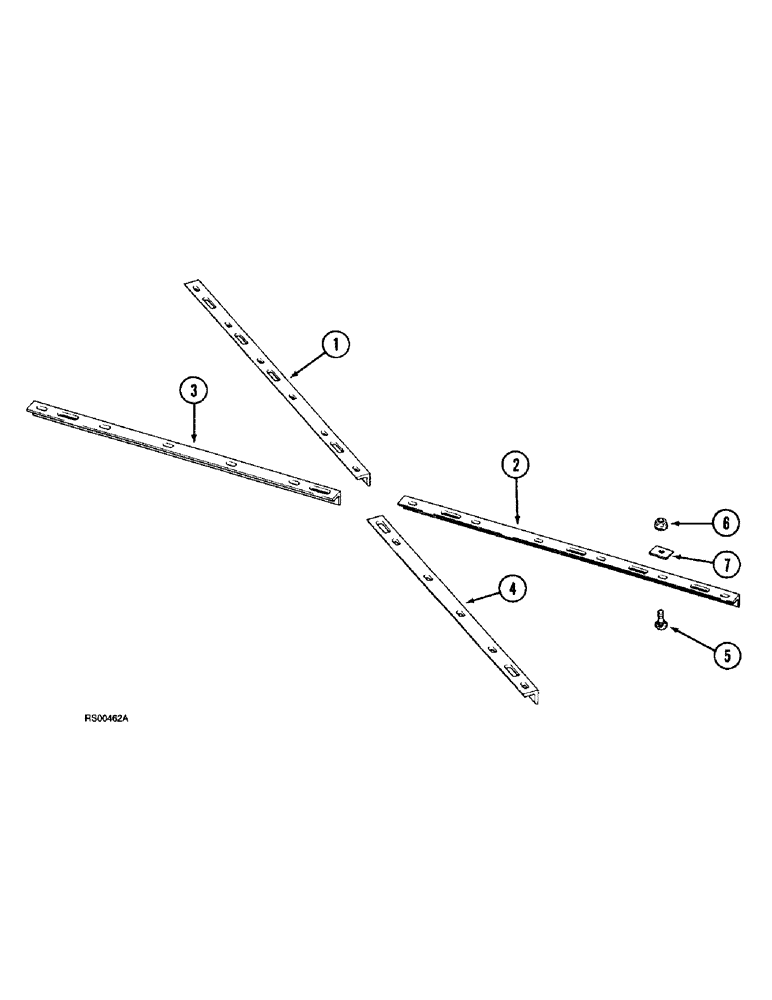

Запчасти Case IH 3850 (75.200.07) - SCRAPER SUPPORTS, NON-FOLDING HARROW, 9 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

121164C2

ANGLE

SUPPORT - scraper, 48-7/16 inch long, left front (Codes E, F)

1шт.

1

121135C2

ANGLE

SUPPORT - scraper, 61-1/4 inch long, left front (Codes I, J)

1шт.

1

121129C3

ANGLE

SUPPORT - scraper, 70-5/16 inch long, left front (Codes M, N)

1шт.

1

121160C2

ANGLE

SUPPORT - scraper, 88-3/8 inch long, left front (Codes S, T)

1шт.

2

121163C2

ANGLE

SUPPORT - scraper, 48-7/16 inch long, right front (Codes E, F)

1шт.

2

121134C2

ANGLE

SUPPORT - scraper, 61-1/4 inch long, right front (Codes I, J)

1шт.

2

121128C3

ANGLE

SUPPORT - scraper, 70-5/16 inch long, right front (Codes M, N)

1шт.

2

121159C2

ANGLE

SUPPORT - scraper, 88-3/8 inch long, right front (Codes S, T)

1шт.

3

121134C2

ANGLE

SUPPORT - scraper, 61-1/4 inch long, left rear (Codes E, F)

1шт.

3

121128C3

ANGLE

SUPPORT - scraper, 70-5/16 inch long, left rear (Codes I, J)

1шт.

3

1986255C1

ANGLE

SUPPORT - scraper, 79-3/8 inch long, left rear (Codes M, N)

1шт.

3

1986257C1

ANGLE

SUPPORT - scraper, 97-3/8 inch long, left rear (Codes S, T)

1шт.

4

121135C2

ANGLE

SUPPORT - scraper, 61-1/4 inch long, right rear (Codes E, F)

1шт.

4

121129C3

ANGLE

SUPPORT - scraper, 70-5/16 inch long, right rear (Codes I, J)

1шт.

4

1986256C1

ANGLE

SUPPORT - scraper, 79-3/8 inch long, right rear (Codes M, N)

1шт.

4

1986258C1

ANGLE

SUPPORT - scraper, 97-3/8 inch long, right rear (Codes S, T)

1шт.

5

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

6

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8

1шт.

7

136222A1

SHIM

- scraper support

1шт.
