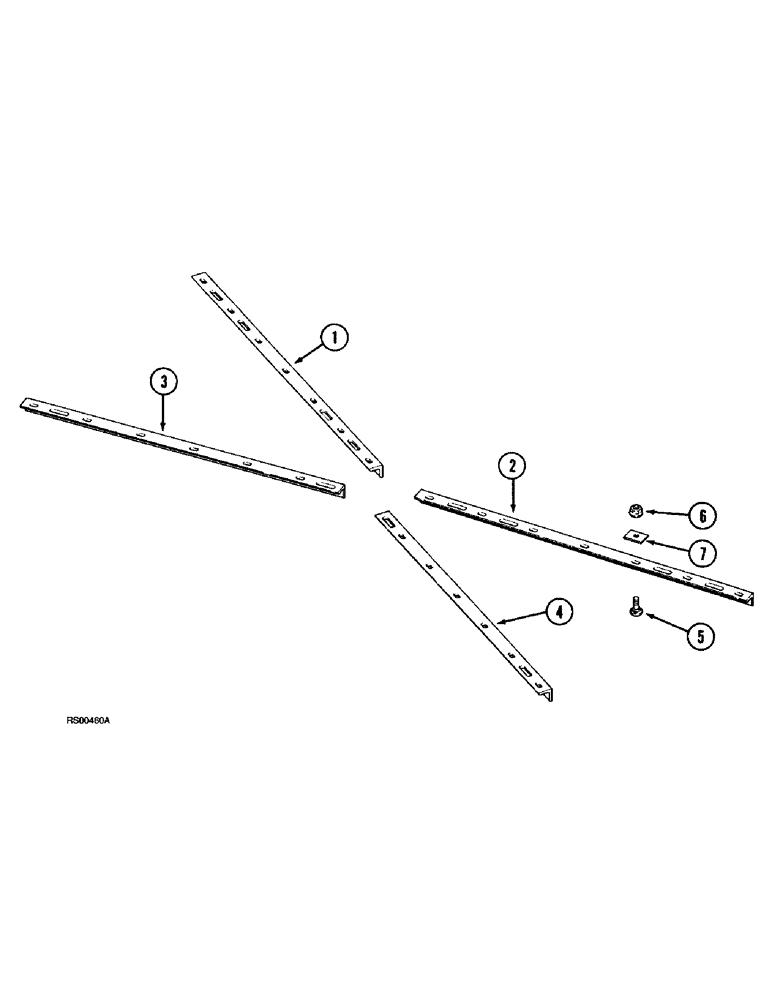

Запчасти Case IH 3850 (75.200.05) - SCRAPER SUPPORTS, NON-FOLDING HARROW, 7-1/2 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

129905C1

NUT

SUPPORT - scraper, 44-13/16 inch long, left front (Codes A, B)

1шт.

1

121173C2

ANGLE

SUPPORT - scraper, 48-7/16 inch long, left front (Codes C, D)

1шт.

1

121142C2

ANGLE

SUPPORT - scraper, 59-13/16 inch long, left front (Codes G, H)

1шт.

1

1986250C1

ANGLE

SUPPORT - scraper, 67-5/16 inch long, left front (Codes K, L)

1шт.

1

121149C2

ANGLE

SUPPORT - scraper, 74-7/8 inch long, left front (Codes O, P)

1шт.

1

121158C2

ANGLE

SUPPORT - scraper, 89-15/16 inch long, left front (Codes Q, R)

1шт.

2

129906C1

ANGLE

SUPPORT - scraper, 44-13/16 inch long, right front (Codes A, B)

1шт.

2

121173C2

ANGLE

SUPPORT - scraper, 48-7/16 inch long, right front (Codes C, D)

1шт.

2

121141C2

ANGLE

SUPPORT - scraper, 59-13/16 inch long, right front (Codes G, H)

1шт.

2

1986249C1

ANGLE

SUPPORT - scraper, 67-5/16 inch long, right front (Codes K, L)

1шт.

2

121148C2

ANGLE

SUPPORT - scraper, 74-7/8 inch long, right front (Codes O, P)

1шт.

2

121157C2

ANGLE

SUPPORT - scraper, 89-15/16 inch long, right front (Codes Q, R)

1шт.

3

129813C2

ANGLE

SUPPORT - scraper, 52-5/16 inch long, left rear (Codes A, B)

1шт.

3

121141C2

ANGLE

SUPPORT - scraper, 59-13/16 inch long, left rear (Codes C, D)

1шт.

3

1986249C1

ANGLE

SUPPORT - scraper, 67-5/16 inch long, left rear (Codes G, H)

1шт.

3

121148C2

ANGLE

SUPPORT - scraper, 74-7/8 inch long, left rear (Codes K, L)

1шт.

3

1986251C1

ANGLE

SUPPORT - scraper, 82-1/2 inch long, left rear (Codes O, P)

1шт.

3

129818C1

ANGLE

SUPPORT - scraper, 97-7/16 inch long, left rear (Codes Q, R)

1шт.

4

129814C2

ANGLE

SUPPORT - scraper, 52-5/16 inch long, right rear (Codes A, B)

1шт.

4

121142C2

ANGLE

SUPPORT - scraper, 59-13/16 inch long, right rear (Codes C, D)

1шт.

4

1986250C1

ANGLE

SUPPORT - scraper, 67-5/16 inch long, right rear (Codes G, H)

1шт.

4

121149C2

ANGLE

SUPPORT - scraper, 74-7/8 inch long, right rear (Codes K, L)

1шт.

4

1986252C1

ANGLE

SUPPORT - scraper, 82-1/2 inch long, right rear (Codes O, P)

1шт.

4

129817C1

ANGLE

SUPPORT - scraper, 97-7/16 inch long, right rear (Codes Q, R)

1шт.

5

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

1шт.

6

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8

1шт.

7

136222A1

SHIM

- scraper support

1шт.
