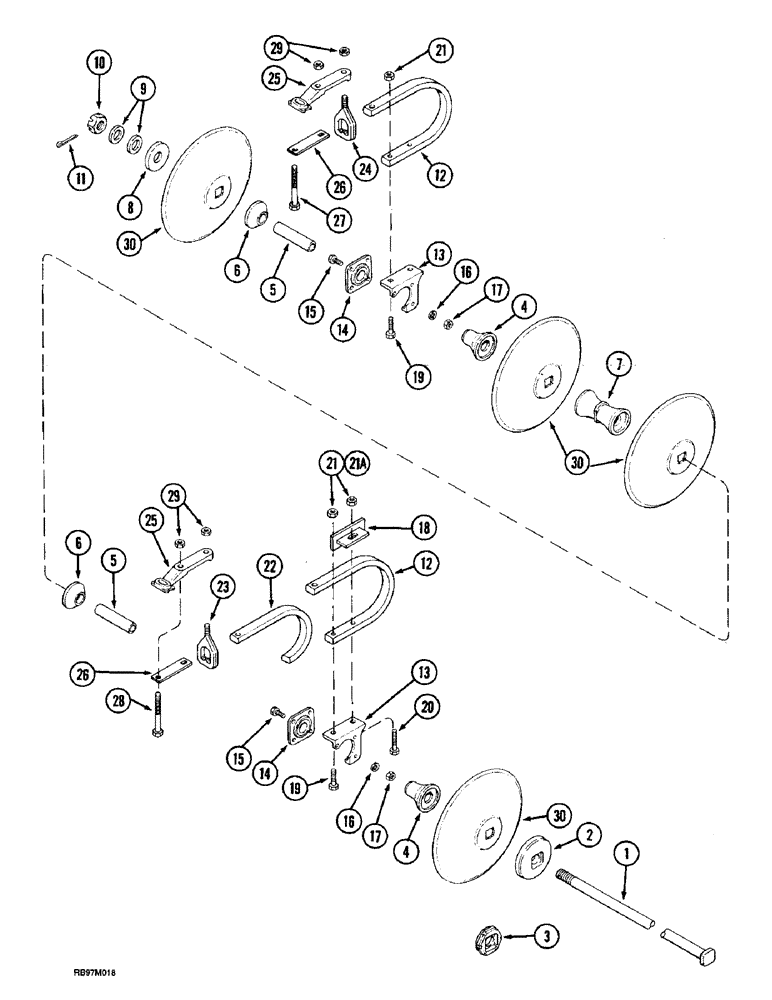

Запчасти Case IH 3850 (75.200.03) - CUSHION DISK GANG, 7-1/2 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

1284115C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 845mm

BOLT - arbor, 33-1/4 inch (845 mm) long, 5 blade 7-1/2 inch spacing

1шт.

1

1284116C5

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1052mm

BOLT - arbor, 40-7/8 inch (1038 mm) long, 6 blade 7-1/2 inch spacing

1шт.

1

1263536C4

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

- arbor, 1228 mm (48-11/32 inch) long, 7 blade 7-1/2 inch spacing

1шт.

1

1263612C3

BOLT,Arbor, 1-1/2" - 6 x 1438mm, Drilled

- arbor, 1426 mm (59-9/64 inch) long, 8 blade 7-1/2 inch spacing

1шт.

1

1263613C3

BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

- arbor, 1619 mm (63-3/4 inch) long, 9 blade 7-1/2 inch spacing

1шт.

1

1986246C3

BOLT

- arbor, 1813 mm (71-3/8 inch) long, 10 blade 7-1/2 inch spacing

1шт.

1

1263614C3

BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

- arbor, 2007 mm (79-1/64 inch) long, 11 blade 7-1/2 inch spacing

1шт.

1

1986247C5

SPECIAL BOLT,1 1/2" - 6 x 94.88"

BOLT - arbor, 94-3/16 inch (2392 mm) long, 13 blade 7-1/2 inch spacing

1шт.

2

1344908C1

WASHER

- bumper (Front inner gang only)

2шт.

3

139927C1

WASHER

WASHER - head

1шт.

4

101190C1

SPOOL

- bearing, 3 inch long

1шт.

5

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch long

1шт.

6

1263636C1

SPOOL

- bearing, 1-1/2 inch long

1шт.

7

1263631C1

SPOOL

- spacing, 7-1/2 inch spacing

1шт.

8

139773C1

WASHER

WASHER - end

1шт.

9

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

- arbor bolt

1шт.

10

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

11

432-1648

COTTER PIN,1/4" x 3"

1шт.

12

147763C1

SPRING

SUPPORT - bearing, left-hand

1шт.

12

147764C1

SPRING

SUPPORT - bearing, right-hand

1шт.

13

147873C1

SUPPORT

RETAINER - bearing, left-hand

1шт.

13

147874C1

SUPPORT

RETAINER - bearing, right hand

1шт.

14

ST491A

BALL BEARING,45mm ID

BEARING - flange

1шт.

14

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18

1263626C2

ANGLE

BRACKET - stiffener

2шт.

20

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

21

1256884C1

NUT

- hex flange, self-locking, special, 5/8 inch NC, grade 8

1шт.

21a

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

22

1263531C1

SPRING

- helper, left-hand (Front center gang only)

1шт.

22

1263532C1

SPRING

- helper, right-hand (Front center gang only)

1шт.

23

1978953C1

BOLT

- spring eye (Front center main gang only)

2шт.

24

100514A2

BOLT

Spring, Replaces 100514A1

1шт.

25

139583C5

SUPPORT

- scraper angle

1шт.

26

1978954C1

LARGE PLATE

BAR - bolt retainer

1шт.

27

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

28

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

29

231-42412

NUT,3/4"-10, GB

Hex, Self Locking

1шт.

30

87442993

PLOW DISC

DISK, 22"X5MM CC PLAIN

1шт.

30

87442983

PLOW DISC

DISK, 20"X5MM CNTR CRIM SR

1шт.

30

87442980

PLOW DISC

DISK - solid, 457 x 5 mm

1шт.

30

87442995

PLOW DISC

DISK, 22"X6.5MM CC PLAIN

1шт.

30

87442985

PLOW DISC

DISK - solid, 508 x 6.5 mm

1шт.
