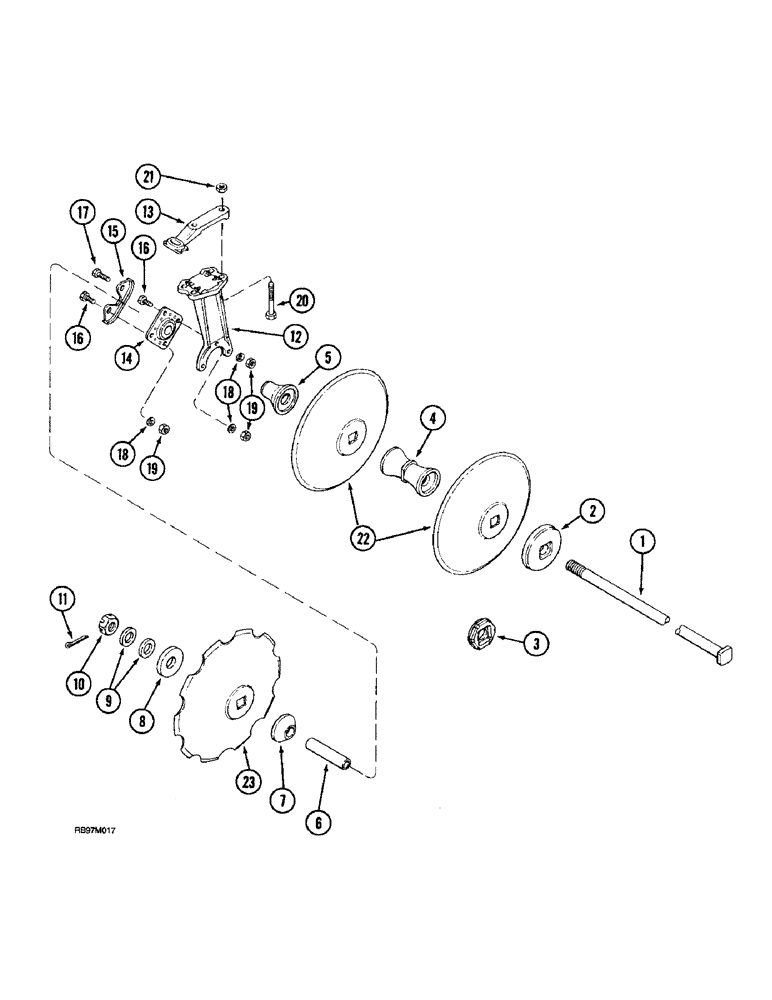

Запчасти Case IH 3850 (75.200.01) - RIGID DISK GANG, 7-1/2 INCH SPACING (09) - CHASSIS/ATTACHMENTS

1

1284115C4

SQUARE BOLT,Arbor, 1-1/2" - 6 x 845mm

BOLT - arbor, 33-1/4 inch (845 mm) long, 5 blade 7-1/2 inch spacing

1шт.

1

1284116C5

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1052mm

BOLT - arbor, 40-7/8 inch (1038 mm) long, 6 blade 7-1/2 inch spacing

1шт.

1

1263536C6

BOLT,Arbor, 1-1/2" - 6 x 1244mm, Drilled

BOLT - arbor, 1228 mm (48-11/32 inch) long, 7 blade 7-1/2 inch spacing

1шт.

1

1263612C5

SQUARE BOLT,Arbor, 1-1/2" - 6 x 1438mm, Drilled

BOLT - arbor, 1426 mm (56.14 inch) long, 8 blade 7-1/2 inch spacing

1шт.

1

1263613C5

BOLT,Arbor, 1-1/2" - 6 x 1635mm, Drilled

BOLT - arbor, 1619 mm (63-3/4 inch) long, 9 blade 7-1/2 inch spacing

1шт.

1

1986246C5

SPECIAL BOLT,Square Head, 1-1/2" - 6 x 71.85", Carbon Steel

BOLT - arbor, 1813 mm (71-3/8 inch) long, 10 blade 7-1/2 inch spacing

1шт.

1

1263614C5

BOLT,Arbor, 1-1/2" - 6 x 2019mm, Drilled

BOLT - arbor, 2007 mm (79-1/64 inch) long, 11 blade 7-1/2 inch spacing

1шт.

1

1986247C5

SPECIAL BOLT,1 1/2" - 6 x 94.88"

BOLT - arbor, 94-3/16 inch (2392 mm) long, 13 blade 7-1/2 inch spacing

1шт.

2

1344908C1

WASHER

- bumper (Front inner gang only)

2шт.

3

139927C1

WASHER

WASHER - head

1шт.

4

1263631C1

SPOOL

- spacing, 7-1/2 inch spacing

1шт.

5

101191C1

SPOOL

- bearing, 4 inch long

1шт.

6

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

- support, 7-1/2 inch long

1шт.

7

101189C1

SPOOL

- bearing, 1-1/2 inch long

1шт.

8

139773C1

WASHER

WASHER - end

1шт.

9

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

- arbor bolt

1шт.

10

425-1224

SLOTTED NUT,1 1/2"-6, G5

1шт.

11

432-1648

COTTER PIN,1/4" x 3"

1шт.

12

129532C2

HOLDER

SUPPORT - bearing

1шт.

13

139583C5

SUPPORT

- scraper angle

1шт.

14

ST491A

BALL BEARING,45mm ID

BEARING - flange

1шт.

14

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

15

129753C1

BEARING COVER

- bearing wear

2шт.

16

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

17

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

1шт.

21

280375

NUT,3/4"-10, GC

Hex, Self-locking

1шт.

22

87442991

PLOW DISC

DISK, 22"X4.5MM CTR CRIMP

1шт.

22

87442981

PLOW DISC

DISK, 20"X4.5MM CNTR CRIMP

1шт.

22

87442974

PLOW DISC

DISK - solid, 457 x 4.5 mm (18 inch)

1шт.

22

31387R1

DISC

DISK - solid, 510 x 4 mm (20 inch)

1шт.

22

87442974

PLOW DISC

DISK - solid, 455 x 4 mm (18 inch)

1шт.

23

87442992

NOTCHED DISK

DISK, 22"X4.5MM SR4 NOTCHED CC

1шт.

23

87442982

PLOW DISC

DISK - notched, 508 x 4.5 mm (20 inch)

1шт.
