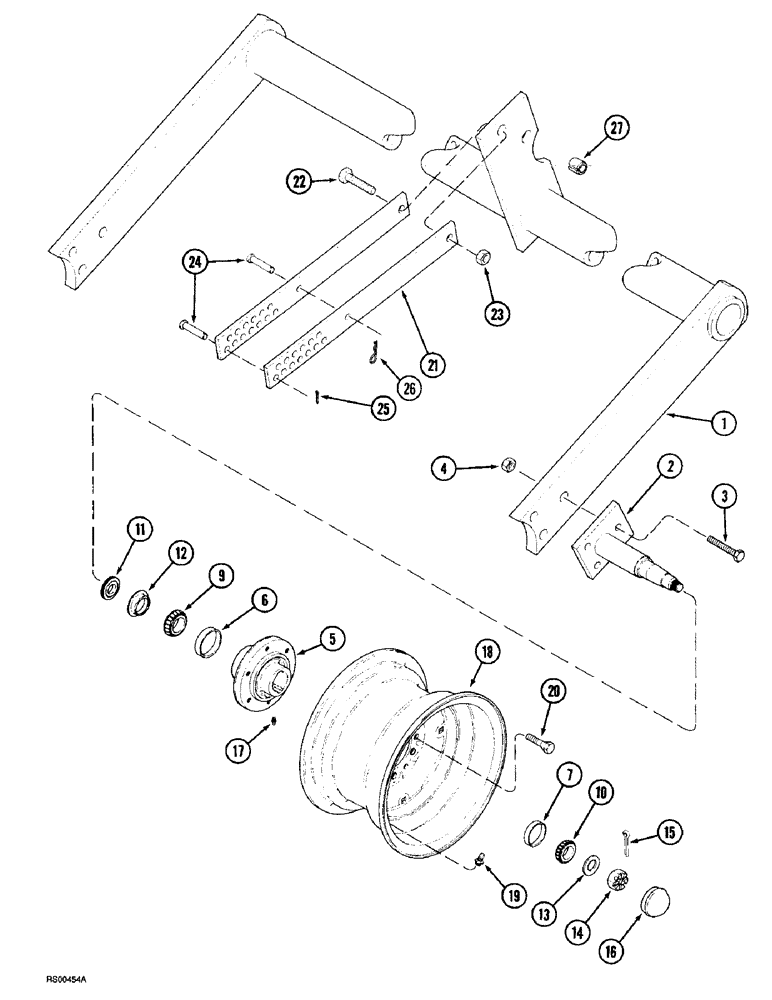

Запчасти Case IH 3850 (44.100.01) - WHEEL AXLE (09) - CHASSIS/ATTACHMENTS

1

255819A1

4WD AXLE ASSY

Wheel, Includes Ref. 27

1шт.

2

95803C1

4WD AXLE ASSY

SPINDLE - Wheel

1шт.

3

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

Single Wheel

1шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Dual Wheel

1шт.

4

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

606468R21

HUB

ASSEMBLY - wheel, 6 bolt

1шт.

5

NSS

NOT SOLD SEPARAT

HUB ASSEMBLY - wheel

1шт.

6

663558R1

BEARING CUP

Tapered roller bearing, 2-57/64 inch OD

1шт.

Repair Kit Item

1шт.

7

651817R1

BEARING CUP

CUP - tapered roller bearing

1шт.

Repair Kit Item

1шт.

9

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID

1шт.

Repair Kit Item

1шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

1шт.

Repair Kit Item

1шт.

11

594702R91

SEAL

- oil

1шт.

Repair Kit Item

1шт.

12

594703R1

SLEEVE

RING - wear, 1/2 inch wide

1шт.

Repair Kit Item

1шт.

13

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, special, hardened

1шт.

14

70120D

SLOTTED NUT,7/8"-14

Hex, special

1шт.

15

432-832

COTTER PIN,1/8" x 2"

1шт.

16

224066C1

HUB CAP

CAP - wheel hub

1шт.

17

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

18

A57879

RIM

WHEEL - 15 x 8 inch

1шт.

19

810769C1

VALVE

- inflation

1шт.

20

277538A1

BOLT,1/2" - 20 x 1.42"

- wheel, 1/2 NF x 2 inch

1шт.

21

95955C1

BAR

- transport

2шт.

22

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

1шт.

23

87681198

NUT,Hex, 7/8"-9, 0.45 high

Hex, Self-locking, 7/8 Iinch NC

1шт.

24

439-51236

HEADED PIN,19.05mm OD x 57.15mm L

2шт.

25

432-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

1шт.

26

1978738C1

HAIR PIN COTTER

3/16"

1шт.

27

64601C1

BUSHING

- tension

1шт.

123096A2

WHEEL BEARING KIT

KIT - repair, wheel bearing

1шт.

Repair Kit Item

1шт.
