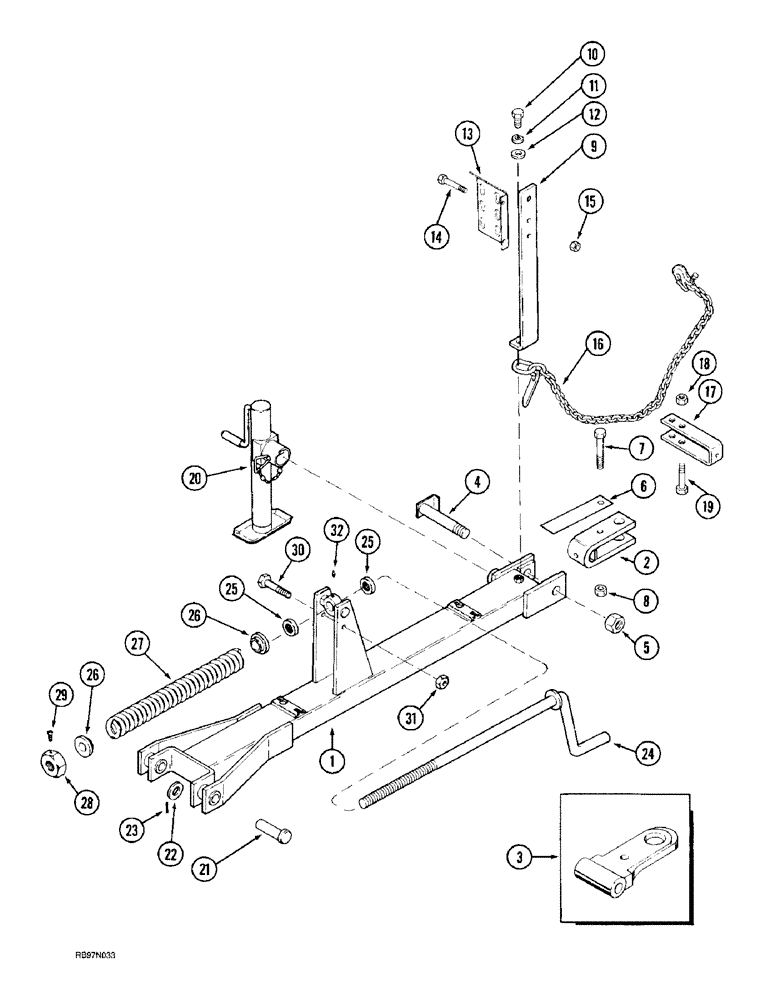

Запчасти Case IH 3850 (39.110.01) - HITCH (09) - CHASSIS/ATTACHMENTS

1

95759C2

TRAILER HITCH

HITCH - disk harrow, standard, 64-3/8 inch (1635 mm) long

1шт.

1

120953A1

TRAILER HITCH

HITCH - disk harrow, extended, 75-1/2 inch (1916 mm) long

1шт.

2

284489A1

CLEVIS

- hitch (If used)

1шт.

3

56892C5

TOW BAR

TONGUE - hitch (If used)

1шт.

4

95755C1

PIN ASSY.

PIN - clevis

1шт.

5

28748R1

LOCK NUT,1 1/4"-7, G5

Hex, self-locking

1шт.

6

540475R1

SPRING

- clevis

1шт.

7

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

(Used with clevis hitch)

1шт.

7

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

(Used with tongue hitch)

1шт.

8

85700693

NUT,5/8" - 11, Gr C

1шт.

9

283538A1

SUPPORT

Hydraulic Hose

1шт.

10

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

1шт.

11

492-11075

LOCK WASHER,3/4"

1шт.

12

495-81042

WASHER,25/32" x 1 1/2" x .120"

1шт.

13

280024A1

BRACKET

Hose Retaining

1шт.

14

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

15

232-4148

NUT,1/2"-13, GC

Hex, self-locking

2шт.

16

700705598

CHAIN (CE)

CHAIN - 5/16 link x 59-1/4 inch long

1шт.

17

1279163C1

CLEVIS COUPLING

CLEVIS - chain

1шт.

18

85700693

NUT,5/8" - 11, Gr C

1шт.

19

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

20

119354C1

JACK

Side Crank (Alternate With 135061C91)

1шт.

21

439-52088

HEADED PIN,31.75mm OD x 139.7mm L

2шт.

22

495-21138

WASHER,1 1/4"

2шт.

23

432-2032

COTTER PIN,5/16" x 2"

2шт.

24

96030C1

CRANK

Leveling

1шт.

25

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

Thrust

2шт.

26

60516C1

BUSHING,33.02mm ID x 42.93mm OD x 25.4mm L

Spring

2шт.

27

56973C1

SPRING

Hitch crank

1шт.

28

60149C2

LOCK NUT

- hex, special, 1-1/4 inch NC

1шт.

29

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

1шт.

30

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

31

86992215

LOCK NUT,1/2"-13, GC

NUT, LOCK, , Hex 1/2"-13, GC

1шт.

32

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
